GM 90278884
Release Bearing

1989-2006 GM

Customer Questions & Expert Answers (3)

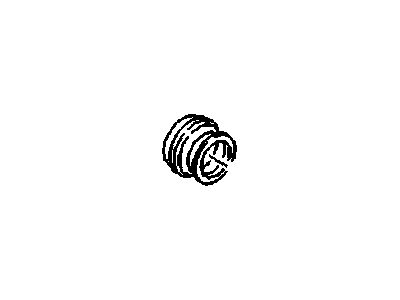

GM 90278884 Release Bearing
GM 90278884 Release Bearing
GM 90278884 Release Bearing
GM 90278884 Release Bearing
  • Part Description
    Bearing, Clutch Release; Clutch Release Bearing; Clutch Kit
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2006 Chevrolet AveoBase, LS, LT, Special Value4 Cyl 1.6 L GAS
    1989-1993 Pontiac LeMansGSE, LE, SE, Value Leader4 Cyl 1.6 L GAS, 4 Cyl 2.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Hey, is 90278884 a good match for my vehicle? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 90278884 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the clutch release bearing on Chevrolet Aveo? Posted by Customer
    A:
    The process starts by removing the transaxle from the vehicle then following with the release arm and Release Bearing. First remove the release shaft along with its bushing. Then use dt 47514 (DW210-040) bushing remover/installer and a hammer to extract the no. 2 bushing and seal from their position. First remove the release shaft before inserting the tap (M16 x 1.51) into the bushing. The end of dt 47513 (DW210-030) bushing joint pipe connects to j 2619-01 (09930-30102) to pull out the bushing. Check the Release Bearing for signs of damage or noise or wear while examining the shaft for warping and the fork for wear. Replace damaged components as needed. Dt 47513 (DW210-030) bushing, bearing installer plus a hammer enable the installation of the release shaft no. 1 bushing and release shaft through application of grease to both components. To assemble release shaft no. 2 use a hammer with dt 47514 (DW210-040) to set both bushing and seal. Once complete apply multipurpose grease to the transaxle input shaft's spline area and the Release Bearing bore. Chain the process by fitting the Release Bearing followed by the release arm and returning the transaxle to its vehicle position.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Service and Inspect the Release Bearing on Chevrolet Aveo? Posted by Customer
    A:
    The procedure begins with transaxle removal followed by release arm along with the Release Bearing removal from the vehicle. Use dt 47514 (DW210-040) together with a hammer to remove the no. 2 bushing and seal while you use dt 47514 (DW210-040) and a hammer to remove the no. 2 bushing and seal. Pass the tap (M16 x 1.51) through the bushing after you have pulled out the release shaft. Use j 2619-01 09930-30102 with the end of dt 47513 dw210-030 for drawing out the bushing through pulling action. Check for noise, wear or damage on the Release Bearing and evaluate the shaft for warping and fork wear before making necessary replacements of parts. Use dt 47513 with 09943-88211 and a hammer tool to install release shaft no. 1 bushing followed by the release shaft itself while applying grease to both the bushing and release shaft. Prior to Release Bearing installation, apply multipurpose grease over the spline of transaxle input shaft and Release Bearing bore. Use the combination of dt 47514 (DW210-040) and a hammer to install both the release shaft no. 2 bushing and its attached seal. After installation the transaxle should be mounted back into the vehicle.
    Posted by ChevyPartsGiant Specialist
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Release Bearing 90278884 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 90278884 Release Bearing is available in the market under the name GM Release Bearing. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 90278884 Release Bearing fits certain Chevrolet Aveo models, as well as Pontiac LeMans models.
The original GM component designated by manufacturer part number 90278884 maintains top performance when functioning as the Bearing, Clutch Release; Clutch Release Bearing; Clutch Kit unit. The component 90278884 is constructed from durable material and its dimensions span 4.2 x 4.2 x 2.1 inches while weighing 0.60 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Bearing, Engine Clutch Release Fork. The part 90278884 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
