How to replace the power steering pump on GMC Safari?

The Power Steering Pump replacement requires two essential tools which include the Power Steering Pump pulley remover (J 25034-C) and the Power Steering Pump pulley installer (J 25033-C). Start by taking away the upper Fan Shroud before proceeding to remove the fan followed by removal of the lower Fan Shroud. Using appropriate caution prevent damage to pulleys and pumps when utilizing the power steering pulley remover (J 25034-C) to separate the air conditioning compressor. You should use the Power Steering Pump pulley remover (J 25034-C) to detach the Power Steering Pump pulley through a process of holding the nut while rotating the pilot bolt clockwise. Set a drain pan under the Power Steering Pump before you detach its mounting bolts and nut because you must cap or plug the power steering hoses to avoid fluid leakage. Unplug the power steering hoses from their positions on the pump before removing the pump unit. Begin Power Steering Pump installation by first placing it into its correct position before connecting the hoses to its rear side after uncovering their ends. Position the mounting bolts on the Power Steering Pump and tighten them to 50 nm (37 ft. Lbs.) while the nut requires a torque of 41 nm (30 ft. Lbs.). Hammering should be avoided when securing the pulley onto the shaft. Use the Power Steering Pump pulley installer (J 25033-C) to install the pulley at the pump shaft ending while guaranteeing the pilot bolt rests in the bottom position of the shaft. The pilot bolt receives your hand while you rotate the nut in a clockwise direction to settle the pulley correctly. Reroute the air conditioning compressor and lower Fan Shroud and fan unit with the upper Fan Shroud. Pour fluid into the Power Steering Reservoir until reaching the cold/full mark followed by power steering bleeding and leak and clearance check of hoses.

OEM GMC Safari Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Power Steering Pumps found

View related parts

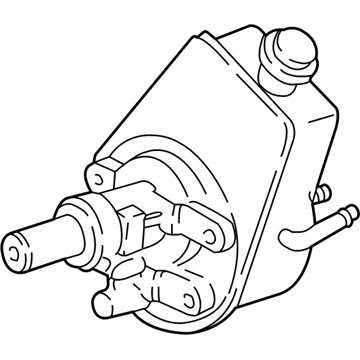

GMC Safari Power Steering Pump Part Number: 26069038
$245.38 MSRP: $386.09
You Save: $140.71 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 19420685
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-1998 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Power Steering Pump Part Number: 26021139
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1995 GMC Safari | Base, GT, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Safari Power Steering Pump Part Number: 26021138
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1995 GMC Safari | Base, GT, SL, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Safari Power Steering Pump Part Number: 26001944
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1989 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Power Steering Pump Part Number: 26001943
Product Specifications
- Other Name: Pump Assembly-Power Steering; Pump, Power Steering
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1990 GMC Safari | Base | 4 Cyl 2.5 L GAS
View related parts
GMC Safari Power Steering Pump Part Number: 19420685
$245.38 MSRP: $386.09
You Save: $140.71 (37%)
Product Specifications
- Other Name: Pump Kit, Power Steering; Pump, Power Steering
- Replaces: 26069038, 88963501, 26057289, 26057293
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2005 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS

GMC Safari Power Steering Pump

Want to cut long-term maintenance and repair costs? Choose OEM Power Steering Pump. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Safari parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Safari Power Steering Pump includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Power steering pump of GMC Safari is among those working parts that are very useful and help to enjoy the most when driving a GMC Safari automobile vehicle which is usually strong and powerful. This Power Steering Pump effectively transmits engine power to the steering system as hydraulic power for ease of turning the wheel especially at slow speed or staking. It is highly suited for different GMC Safari vehicles as this makes certain that drivers experience enhanced control and maneuverability regardless of the models. The product under the automobile category is the GMC Safari manufactured between 1985 and 2005 as a minivan variant, and the Power Steering Pump is an important factor concerning the effectiveness and safety of the vehicle. This has not only made the operation of the steering wheel comfortable to the driver but has also lead to stability of the car thereby making this Power Steering Pump a special feature in the automobile market. As for the construction of the GMC Safari Power Steering Pump, it is sturdy, and I consider its reliable to perform for a long time without etc. Furthermore, the hydraulic system of the pump is developed in such a way to give consistent results on the vehicle's pumping direction such that the driver can maneuver different terrains across the country. It reports that approximately 3.2 millions of GMC Safari units have been manufactured up to now, and the Power Steering Pump still hold the place as one of the important parts to continue the GMC flagship, which is marked by the quality and innovation. In summary, the GMC Safari Power Steering Pump is one more GM marque that reflects the company's vision of providing the consumers with the vehicles equipped with stock parts that can be considered as quite reliable and powerful.

GMC Safari Power Steering Pump Parts Questions & Experts Answers

Power Steering Pump
19420685
Q: How to replace the power steering pump on GMC Safari?
A:
The Power Steering Pump replacement requires two essential tools which include the Power Steering Pump pulley remover (J 25034-C) and the Power Steering Pump pulley installer (J 25033-C). Start by taking away the upper Fan Shroud before proceeding to remove the fan followed by removal of the lower Fan Shroud. Using appropriate caution prevent damage to pulleys and pumps when utilizing the power steering pulley remover (J 25034-C) to separate the air conditioning compressor. You should use the Power Steering Pump pulley remover (J 25034-C) to detach the Power Steering Pump pulley through a process of holding the nut while rotating the pilot bolt clockwise. Set a drain pan under the Power Steering Pump before you detach its mounting bolts and nut because you must cap or plug the Power Steering Hoses to avoid fluid leakage. Unplug the power steering hoses from their positions on the pump before removing the pump unit. Begin Power Steering Pump installation by first placing it into its correct position before connecting the hoses to its rear side after uncovering their ends. Position the mounting bolts on the Power Steering Pump and tighten them to 50 nm (37 ft. Lbs.) while the nut requires a torque of 41 nm (30 ft. Lbs.). Hammering should be avoided when securing the pulley onto the shaft. Use the Power Steering Pump pulley installer (J 25033-C) to install the pulley at the pump shaft ending while guaranteeing the pilot bolt rests in the bottom position of the shaft. The pilot bolt receives your hand while you rotate the nut in a clockwise direction to settle the pulley correctly. Reroute the air conditioning compressor and lower Fan Shroud and fan unit with the upper Fan Shroud. Pour fluid into the Power Steering Reservoir until reaching the cold/full mark followed by power steering bleeding and leak and clearance check of hoses.
