Make sure this part fits

GM 88967237
Brake Booster

2004-2009 Cadillac SRX

Customer Questions & Expert Answers (6)
GM 88967237 Brake Booster
  • Part Description
    Booster, Power Brake
  • Replaces
    18048695
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

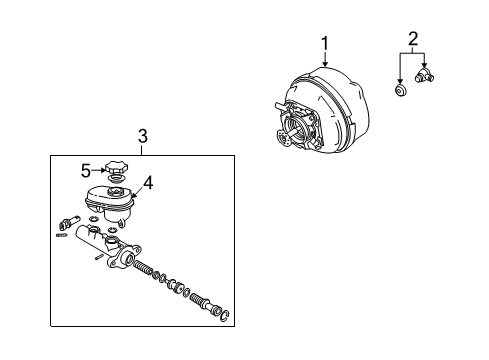

  • 88967237 Brake Booster is Ref No. 1 in the diagram below

    2004 Cadillac SRX Brake Booster Diagram for 88967237
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 88967237

  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Cadillac SRXBase6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is 88967237 compatible with my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 88967237 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Power Vacuum Brake Booster (RHD) on Cadillac SRX? Posted by Customer
    A:
    Start replacement of the power vacuum Brake Booster (RHD) by taking out the right closeout/insulator panel first. Disengage the vacuum Brake Booster push rod retaining clip then take off its connecting rod that connects to the brake pedal. You can take out a cross vehicle brace without handling the brake pipes that link to the master cylinder. Put the master cylinder on top of the vacuum Brake Booster and set it aside for now. Locate the vacuum Brake Booster lock tab by removing its air inlet grille panel and separate the vacuum Brake Booster check valve. Position the check valve to the side. To detach the vacuum Brake Booster from the cowl locking mechanism use the j 22805-b ratchet with the counterclockwise torque and depress the locking tab until it releases from the front of the cowl. While holding the vacuum Brake Booster against support remove its foam filter to reach the retaining clip at the cowl flange. Pull the retaining clip up from its longer side to take out the Pushrod from the booster. Install the vacuum Brake Booster while keeping the internal parts unharmed and making sure to remove any damage from the locking flanges. Align the vacuum Brake Booster locking tab if needed and insert the Pushrod through its dust boot on the cowl before carefully plugging it into the Pushrod system making sure the long replaceable portion of the retainer clip fits into the factory-made groove. Push the booster fully onto the Pushrod so the retaining clip seats properly before aligning it with the cowl at the top counterclockwise. Twist the booster clockwise using the j 22805-b while adjusting the locking notch and locking tab. Reinsert the j 22805-b tool and attach the vacuum hose with check valve while putting back the air inlet grille. First assemble the master cylinder with vacuum Brake Booster before reusing the cross vehicle brace. Then link the Pushrod from vacuum Brake Booster to the brake pedal. Secure the brake pedal push rod retaining clip in its position before placing back the right closeout/insulator panel.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be done after unlocking the vacuum brake booster for the 2004 Cadillac SRX? Posted by Customer
    A:
    Carefully remove the vacuum brake booster from the cowl mounting flange, support it, and push the foam filter in to access the retaining clip.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Brake Booster
    Q:
    What is the process for installing the push rod for the 2008 Cadillac SRX? Posted by Customer
    A:
    Straighten the locking tab if necessary, install the push rod through the dust boot, and carefully attach the vacuum brake booster to the pushrod, ensuring the long leg of the retainer clip fits into the machined groove.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Brake Booster
    Q:
    How do you access the vacuum brake booster locking tab for the 2009 Cadillac SRX? Posted by Customer
    A:
    Remove the air inlet grille panel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Brake Booster
    Q:
    What is the next step after moving the coolant surge tank for the 2007 Cadillac SRX? Posted by Customer
    A:
    Disconnect the vacuum brake booster check valve.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Brake Booster
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Brake Booster 88967237 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 88967237 Brake Booster is available in the market under the name GM Brake Booster. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 88967237 Brake Booster fits certain Cadillac SRX models.
The original GM component designated by manufacturer part number 88967237 maintains top performance when functioning as the Booster, Power Brake unit. The component 88967237 is constructed from durable material and its dimensions span 11.5 x 16.3 x 11.5 inches while weighing 12.50 Pounds. The component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Booster Assembly. The part 88967237 has available replacement options 18048695. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
