1992 Oldsmobile Cutlass Cruiser Fuel System Components, Fuel Delivery

Currently shopping for

1992 Oldsmobile Cutlass Cruiser

Change Vehicle

Categories Close X

Currently selected

Air & Fuel Delivery

Other Categories

A/C & Heating

Belts & Cooling

Body & Hardware

Brakes

Charging & Starting

Electrical

Emission Control & Exhaust

Engine

Headlights & Lighting

Maintenance & Lubrication

Steering

Suspension

Parts Questions

Diagram (1 of 1): Fuel System Components

1992 Oldsmobile Cutlass Cruiser Fuel System Components, Fuel Delivery Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
22515512
Fuel Tank
Tank, Fuel
- Part Notes: Gas

2
561181

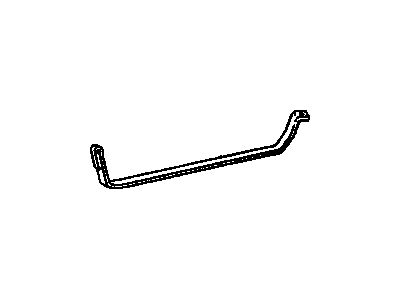

Fuel Tank Mount Strap
Strap-Fuel Tank
- Location: Passenger Side

3
22515848
Fuel Tank Mount Strap
Strap, Fuel Tank
- Location: Driver Side

4
22591476
Cap
Cap, Fuel Tank Filler
- Part Notes: Gas
MSRP: $35.31 Your Price: $19.77
1
Add To Cart

5
10170480
Filler Neck
Pipe Assembly-Fuel Tank Filler
- Part Notes: Gas

6
22512169
Filler Neck Baffle
Shield, Fuel Tank Filler

7
25093498
Sending Unit
Meter, Fuel
Part Notes: 6 Cylinder, 3.3 Liter Wagon
7
25094114
Sending Unit
Meter, Fuel
- Part Notes: 4 Cylinder, Standard

25116285
Fuel Pump
Pump Assembly, Fuel
Part Notes: 4 Cylinder, Standard
25163468
Fuel Pump
Pump, Fuel
- Part Notes: 6 Cyl, 3.0l, See Engine Parts Group, 3.3 Liter
MSRP: $173.16 Your Price: $96.97
1
Add To Cart

14107916
Label
- Part Notes: "unleaded Fuel Only"
MSRP: $9.12 Your Price: $6.13

10204865
Lower Hose
Hose, Fuel Tank Filler

25527423
CLIP,FUEL FEED & RETURN FRONT PIPE(CLOSED LOOP 2 TUBE W/9.5 & 8.0MM DIM FOR TUBES)(DIAMETER IS 0.6MM LARGER THAN 00343442 & 10042838)
- Fitting Vehicle Options: A(LR8)
MSRP: $7.20 Your Price: $4.59
View Details

11500921
BOLT,HEXAGON,M8X1.25X40,33.2THD,HEADER POINT,10.9,PC
MSRP: $11.44 Your Price: $7.30
View Details

22514722
SEAL,FUEL INJECTION FUEL FEED HOSE
MSRP: $3.16 Your Price: $1.77
View Details

10112015
CLIP,FUEL FEED & EVAP EMISSION & RETURN PIPE(U-SHAPED)(3.162)
- Fitting Vehicle Options: A
MSRP: $4.14 Your Price: $2.64
View Details

25526629
CLIP,CLOSED STEEL,7/16"X 5/16",ZINC COATED,NATURAL
Your Price: $5.40
View Details

11609821
CLAMP - LOOP CUSHIONED 8.0X13.8(FRONT BRAKE PIPE(POSITION #2,27)
- Require Quantity: 02
- Package Quantity: 1
MSRP: $7.95 Your Price: $5.07
View Details

19258137
SEAL,FUEL RETURN PIPE (O RING)(6.07MM INSIDE DIAMETER X 1.30MM THICK)
- Fitting Vehicle Options: A(LR8)
MSRP: $8.27 Your Price: $4.64
View Details

9438257
HOSE,13MMX25',ROLL
MSRP: $93.30 Your Price: $59.56
