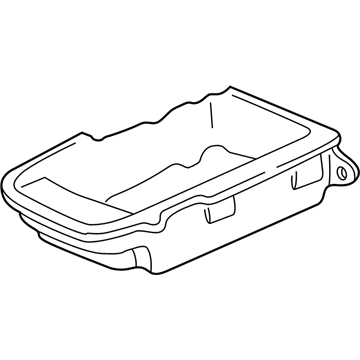

OEM 2000 Chevrolet Cavalier Oil Pan

2000 Chevrolet Cavalier Parts Questions & Experts Answers

• Q: How to remove and install an oil pan on 2000 Chevrolet Cavalier?

  A: Start by raising the vehicle then remove the right front wheel and tire assembly followed by the right engine splash shield before you can work on the Oil Pan. Drain the crankcase before removing the Starter bracket on the block and fetching the Starter as you set it to the side. The Oil Pan needs removal after you detach the engine mount strut bracket and install the Oil Pan bolts and nuts. Clean all sealing surfaces on the pan along with cylinder case and front cover by removing all traces of old rtv from blind attaching holes. You must apply a 2 mm diameter bead of gm p/n 12346286 loctite (R) 5900 or equivalent at the Oil Pan sealing surface but keep it clear of the rear seal mounting area. The installation requires a new rear Oil Pan seal alongside a thin coat application of gm p/n 12346286 loctite (R) 5900 or equivalent down to the seal's ears before mounting the Oil Pan. Use gm p/n 12346286 loctite (R) 5900 or equivalent adhesive to create a 2 mm bead on the Oil Pan sealing surface while omitting the rear seal mounting surface. Secure the Oil Pan nuts using the same 10 nm (89 inch lbs.) torque specification. After installing the engine mount strut bracket and Starter you should replace the transmission converter cover or flywheel housing cover followed by the right engine splash shield then the right front tire and wheel assembly. Lower your vehicle after that you need to insert engine oil into the crankcase.
