How to replace the headlight assembly or headlight bulb or cornering, sidemarker, park, and turn signal bulb on Cadillac XLR?

If you need to replace the headlamp assembly or headlamp bulb or cornering, sidemarker, park, and turn signal bulb, start by opening the hood and disconnect the connector position assurance (CPA) from the electrical connector to the headlamp wiring harness and then disconnect the electrical connector. Then replace the front fascia close-out panel and remove the nuts that hold the headlamp assembly to the front wheelhouse and remove the headlamp from the wheelhouse. Continue removing the park/turn bulb/socket its rotation being counterclockwise and then pull out the bulb from inserting it in the socket. Repeat the same process for the side marker bulb/socket and the position bulb/socket. For installation, push the bulb into the socket and rotate the park/turn bulb/socket clockwise completely, followed the side marker and position them. Replace the headlamp wiring harness back to wheelhouse with the rubber grommet in place, in case it chafes. Mount the headlamp to the wheelhouse and fasten using nuts by tightening to 6 N.m (53 lb in). Connect the electrical connector to headdamwl wiring harness, install the CPA to the headdam electrical connector, and reinstall the front fascia panel. Lastly, check the headlamp just to ensure its operation and alignment if required, before closing the hood.

OEM Cadillac XLR Headlight

Headlamp

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Headlights found

View related parts

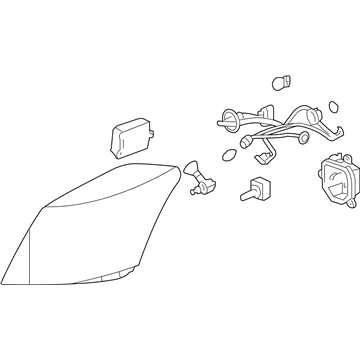

Cadillac XLR Composite Headlamp Part Number: 20779749
Product Specifications
- Other Name: Headlamp Assembly- (W/Turn Signal Lamp); Headlight
- Replaces: 15820034, 15907364, 25868094
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac XLR | Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Headlamp Assembly, Front Driver Side Part Number: 20779745
Product Specifications
- Other Name: Headlamp Assembly- (W/Front Side Marker & Parking & Turn Signal; Headlight; Composite Headlamp
- Position: Front Driver Side
- Replaces: 15858641, 15907366, 15832189, 25868096
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Headlamp Assembly, Front Passenger Side Part Number: 20779744
Product Specifications
- Other Name: Headlamp Assembly- (W/Front Side Marker & Parking & Turn Signal; Headlight; Composite Headlamp
- Position: Front Passenger Side
- Replaces: 10351197, 25868095, 15907365, 15858640, 15832188
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2009 Cadillac XLR | Base, Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Composite Headlamp, Front Part Number: 10349881
Product Specifications
- Other Name: Headlamp Assembly- (W/Front Side Marker & Parking & Turn Signal; Headlight
- Position: Front
- Replaced by: 19120977
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Composite Headlamp, Front Part Number: 10349880
Product Specifications
- Other Name: Headlamp Assembly- (W/Front Side Marker & Parking & Turn Signal; Headlight
- Position: Front
- Replaced by: 19120977
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Cadillac XLR | Base | 8 Cyl 4.6 L GAS
View related parts
Cadillac XLR Composite Headlamp Part Number: 19352095
Product Specifications
- Other Name: Headlamp Kit, (Service); Headlight; Headlamp Kit, Capsule/Headlamp/Fog Lamp
- Replaces: 15907363, 20779748, 15820033, 25868093
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac XLR | Platinum, V | 8 Cyl 4.4 L GAS, 8 Cyl 4.6 L GAS

Cadillac XLR Headlight

Want to cut long-term maintenance and repair costs? Choose OEM Headlight. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac XLR parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac XLR Headlight includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Cadillac XLR Headlight is one of the remarkable parts of Cadillac that helps in boosting the performance while driving the luxury roadster car and offers safety. The XLR Headlight famed for its dependability lights up the road in advance and makes the car easily recognizable during night time drive to other motorists. While developed for different Cadillac XLR models, they employ one of the existing technologies like halogen, LED, and xenon (HID), they all have specific features. Halogen light head can be bought cheaply while LED light head provides efficiency as far as energy consumption is concerned as well as its durability. One of the most noticeable features is the stylish xenon headlights that emit a clear brightly bluish light which is of great help while driving. The Cadillac XLR Headlight has projector beams that causes light to be focused more on specific point than conventional lighting, thus, enhancing the vision during the night time. This evolution is a definite continuity in Cadillac light technology making the XLR an automobile of and epitome of safety and performance in the market. The Cadillac XLR is a model which was manufactured from 2003 to 2009 and was equipped with such novelties as an electrically folding roof and the adaptive Magnetic Ride Control suspension as well as efficient headlights. The Cadillac XLR is a unique car that comes with powerful V8 Northstar engine, stylish look and that's why it is important to note that headlights are one of the important components as well as attributes of this car. All in all we can say that the Cadillac XLR Headlight has been a fine example of Cadillac's commitment and work towards creating some of the prime luxury cars in the market.

Cadillac XLR Headlight Parts Questions & Experts Answers

Headlamp Assembly, Front Passenger Side
20779744
Q: How to replace the headlight assembly or headlight bulb or cornering, sidemarker, park, and turn signal bulb on Cadillac XLR?
A:
If you need to replace the headlamp assembly or headlamp bulb or cornering, sidemarker, park, and turn signal bulb, start by opening the hood and disconnect the connector position assurance (CPA) from the electrical connector to the headlamp wiring harness and then disconnect the electrical connector. Then replace the front fascia close-out panel and remove the nuts that hold the headlamp assembly to the front wheelhouse and remove the headlamp from the wheelhouse. Continue removing the park/turn bulb/socket its rotation being counterclockwise and then pull out the bulb from inserting it in the socket. Repeat the same process for the side marker bulb/socket and the position bulb/socket. For installation, push the bulb into the socket and rotate the park/turn bulb/socket clockwise completely, followed the side marker and position them. Replace the headlamp wiring harness back to wheelhouse with the rubber grommet in place, in case it chafes. Mount the headlamp to the wheelhouse and fasten using nuts by tightening to 6 N.m (53 lb in). Connect the electrical connector to headdamwl wiring harness, install the CPA to the headdam electrical connector, and reinstall the front fascia panel. Lastly, check the headlamp just to ensure its operation and alignment if required, before closing the hood.
