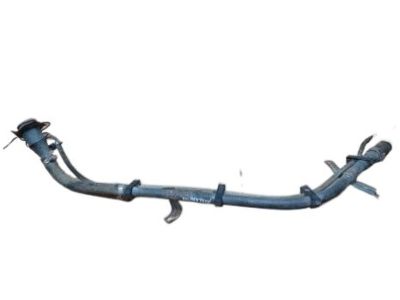

OEM Chevrolet Avalanche 1500 Fuel Filler Hose

Chevrolet Avalanche 1500 Fuel Filler Hose Parts Questions & Experts Answers

• Upper Hose
  15124940
  Q: How to replace the Fuel Filler Hose in a single tank system on Chevrolet Avalanche 1500?

  A: The first step in replacing the Fuel Filler Hose of single tank system requires cleaning both fuel connections and neighboring areas to prevent contaminants from entering followed by fuel fill cap removal. Start by removing the torx(r) screws and retainer which hold the Fuel Tank filler housing to the body while also taking out any spare tire stowage lock cylinder or spare tire that exists. Untighten and pull out screws which join the Fuel Tank filler housing to the Fuel Tank fill pipe. Rise the vehicle while supporting it before you unclip and remove the vent hose at the fill pipe. Begin by disconnection of the air suspension hose at the fill pipe and continuing with removal of the ground wire harness bolt, ground wire, and fill pipe ground strap. First disconnect the quick connect fitting of the vent hose at the Fuel Tank while loosening the fuel fill pipe clamp before you remove the fuel fill pipe bracket bolts. Remove the fuel fill pipe hose from the Fuel Tank before taking out both the fuel fill pipe and vent hose while applying a cap to the open Fuel Tank end to stop contamination. Basically for installation users need to uncapture the Fuel Tank opening to join the fuel fill pipe hose to the Fuel Tank followed by installing the fuel fill pipe bracket bolts and tightening them to 12 n.m (106 lb in). Install the fuel fill pipe hose by tightening the clamp to 2.5 n.m (22 lb in) and attach the vent hose quick connect fitting to the tank. Attach the fill pipe ground strap with its ground wire while tightening the ground wire harness bolt to 9 n.m (80 lb in). You should first reestablish the air suspension hose connection to the fill pipe before installing the vent hose to its clip then securing the clip at the fill pipe. The technician should first lower the vehicle before securely attaching the Fuel Tank filler housing to Fuel Tank fill pipe screws that require tightening to 2.3 n.m (20 lb in). Next, install the torx(r) screws while securing the retainer between the Fuel Tank filler housing and body with a torque of 2.3 n.m (20 lb in). Reinstall the spare tire along with the stowage lock cylinder but replace the Fuel Tank filler housing with body torx(r) screws and retainer before putting on the fuel fill cap.
