How to replace the front Fender Splash Shield on Chevrolet Aveo?

Before starting front fender replacement work begin by first supporting the vehicle and afterward detach the front wheel followed by all the bolts and Fender Splash Shield. You must detach the screws which run beneath the front bumper fascia as well as the screw linking the front fascia to the fender. The installation process begins with unbolting at the bottom fender base then moving to remove the bolt at the base of the windshield pillar by opening the front door. Start by removing the Headlight and finishing by taking out the fender after removing all bolts from its top. Begin by installing the headlamp and afterward move on to installing the fender. Secure the bolts at the fender top with a torque of 10 n.m (89 lb in) and add the windshield pillar base bolt and tighten it to 8 n.m (71 lb in). Secure the fender to the front bumper fascia through the screw by tightening it to 1.5 n.m (13 lb in). After that, bolt the fender base and tighten each fastener to 10 n.m (89 lb in). Use screws to fix the fender behind the front bumper fascia applying 4 n.m (35 lb in) torque and put in the Fender Splash Shield using screws at 1.5 n.m (13 lb in). Last step before completion is to install the front wheel and lower the vehicle.

OEM Chevrolet Aveo Fender Splash Shield

Wheelhouse Liner

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 Fender Splash Shields found

View related parts

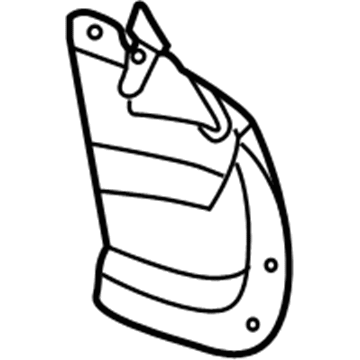

Chevrolet Aveo Fender Liner Part Number: 96464954
$36.49 MSRP: $57.11
You Save: $20.62 (37%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2011 Chevrolet Aveo | LS, LT | 4 Cyl 1.6 L GAS
View related parts

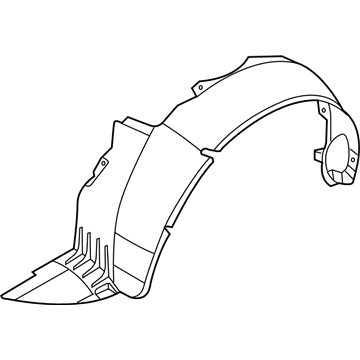

Chevrolet Aveo Fender Liner Part Number: 96648531
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2011 Chevrolet Aveo | LS, LT | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Liner Part Number: 96543167
Product Specifications
- Other Name: Panel, Rear Wheelhouse; Liner, Rear Wheelhouse
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Liner Part Number: 96543166
Product Specifications
- Other Name: Panel, Rear Wheelhouse; Liner, Rear Wheelhouse
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Liner Part Number: 96543133
Product Specifications
- Other Name: Panel, Rear Wheelhouse; Liner, Rear Wheelhouse
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Liner Part Number: 96543132
Product Specifications
- Other Name: Panel, Rear Wheelhouse; Liner, Rear Wheelhouse
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Fender Liner Part Number: 96542972
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS
View related parts
Chevrolet Aveo Fender Liner Part Number: 96542971
Product Specifications
- Other Name: Liner, Front Fender Inner Wheel House; Fender Splash Shield
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Chevrolet Aveo | Base, LS, LT, Special Value | 4 Cyl 1.6 L GAS

Chevrolet Aveo Fender Splash Shield

Want to cut long-term maintenance and repair costs? Choose OEM Fender Splash Shield. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Aveo parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Aveo Fender Splash Shield includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

A Chevrolet Aveo Fender Splash Shield functions as a vital piece which increases the reliability and operation of the car over different models. This Fender Splash Shield shields fenders and undercarriage components while quarrying off road debris along with water and corrosive substances for extended vehicle life. Placed with accuracy behind the wheels this Chevrolet Aveo Fender Splash Shield blocks tire splash together with mud from touching vital engine parts and safeguarding other panel sections. As automotive design progressed Chevrolet Aveo makers substituted metal with thermoplastics in Fender Splash Shields to create more durable lightweight parts that prevent corrosion and withstand impacts. The product development leads to improved Chevrolet Aveo efficiency while protecting essential parts from harm. The car Fender Splash Shield excels in the market because it perfectly fits many Aveo models making this protective feature available to every Chevrolet car driver. An model owner should consider investing in the car Fender Splash Shield because this product provides reliability and exceptional performance that improves vehicle efficiency and road safety.

Chevrolet Aveo Fender Splash Shield Parts and Q&A

Fender Liner
96542971
Q: How to replace the front Fender Splash Shield on Chevrolet Aveo?
A:
Before starting front fender replacement work begin by first supporting the vehicle and afterward detach the front wheel followed by all the bolts and Fender Splash Shield. You must detach the screws which run beneath the front bumper fascia as well as the screw linking the front fascia to the fender. The installation process begins with unbolting at the bottom fender base then moving to remove the bolt at the base of the windshield pillar by opening the front door. Start by removing the Headlight and finishing by taking out the fender after removing all bolts from its top. Begin by installing the headlamp and afterward move on to installing the fender. Secure the bolts at the fender top with a torque of 10 n.m (89 lb in) and add the windshield pillar base bolt and tighten it to 8 n.m (71 lb in). Secure the fender to the front bumper fascia through the screw by tightening it to 1.5 n.m (13 lb in). After that, bolt the fender base and tighten each fastener to 10 n.m (89 lb in). Use screws to fix the fender behind the front bumper fascia applying 4 n.m (35 lb in) torque and put in the Fender Splash Shield using screws at 1.5 n.m (13 lb in). Last step before completion is to install the front wheel and lower the vehicle.
