OEM Chevrolet Prizm Air Filter

Chevrolet Prizm Air Filter Parts Questions & Experts Answers

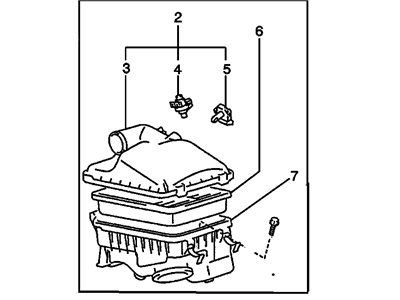

• Air Cleaner Assembly
  94859773
  Q: How to replace the air filter on Chevrolet Prizm?

  A: Begin by disconnecting the electrical connector from the intake air temperature sensor and then remove the Air Hose and disconnect the accelerator cable guide clip. Gently loosen the 2 air inlet duct clamps and dissolve the 2 air cleaner cover hold-down clips before you take off the air cleaner cover along with the air inlet duct. You should begin this procedure by removing the Air Filter and disconnecting the 3 bolts holding the air cleaner lower assembly together. Then remove the assembly from your vehicle. During installation reposition the air cleaner lower assembly into the vehicle using the 3 bolts tightened to 18 n.m (13 lb ft). Place the Air Filter on the air cleaner lower assembly while continuing with air inlet duct installation then the air cleaner cover. Screw in the 2 air cleaner cover hold-down clips after you attach the air inlet duct to the air cleaner cover and secure the clamps. The conclusion consists of putting the accelerator cable into the accelerator cable guide clip on the air cleaner cover followed by attaching the Air Hose to the air cleaner cover and reconnecting the iat sensor electrical connector.
