How to replace the left exhaust manifold on Chevrolet S10?

The first step for replacing the left Exhaust Manifold includes disconnecting the breather tube at the air cleaner outlet duct followed by removing the air cleaner outlet duct retaining wingnut then separating the iat sensor harness connector. After disconnecting the Throttle Body from the air cleaner outlet duct users must remove the intermediate Steering Shaft and disconnect the engine coolant temperature sensor wiring connector. The service technician needs to eliminate the radiator inlet hose support bracket and nut followed by raising the vehicle. Drop the vehicle by the Exhaust Pipe from the Exhaust Manifold before moving on. On the front side move the tire to gain access to bolts holding the rear Exhaust Manifold while pulling out the fender wheelhouse extension. Obtain access to the spark plugs through the wheelhouse opening by rotating each wire boot half a turn then pulling it outward. Lower the vehicle after removing bolts from the Exhaust Manifold and stud. Finally, you can take the Exhaust Manifold together with Spark Plug wire shields off from the engine. Gather and throw away the aged Exhaust Manifold gaskets followed by cleaning all surfaces where gaskets will rest. To install the Exhaust Manifold position the stud in the front hole while the gasket tabs maintain position of the bolts. For installation insert the Exhaust Manifold through the wheelhouse opening after raising the vehicle while positioning it by the engine from under the hood. Before installing the Spark Plug wire shields users should apply threadlock preparation gm p/n 1234,5493 (Canadian P/N 10953488) to Exhaust Manifold bolt threads and stud threads if they are using reinstalled fasteners. The Exhaust Manifold bolts and stud will receive initial torque of 15 nm (11 ft. Lbs.) before receiving final torque of 30 nm (22 ft. Lbs.). Beginning with Spark Plug wire installation onto retainer points and spark plugs, move to the front tire and fender wheelhouse extension after placement. The Exhaust Pipe needs to be joined to the Exhaust Manifold before lowering the vehicle in order to connect the ect sensor electrical connector. First position the radiator inlet hose support bracket along with its nut before tightening them to 36 nm (27 ft. Lbs.) and lastly attach the intermediate Steering Shaft to the vehicle. Handle the maf sensor with care while installing it by avoiding exposure to drops or screen and sensing element damage and apply a small amount of soap-based solution to help with mounting. Lastly finish the process by installing the air cleaner outlet duct onto the Throttle Body and maf sensor and connect the iat sensor harness connector as well as tighten the duct with its retaining wingnut before reattaching the breather tube.

OEM Chevrolet S10 Exhaust Manifold

Engine Exhaust Manifold

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

17 Exhaust Manifolds found

View related parts

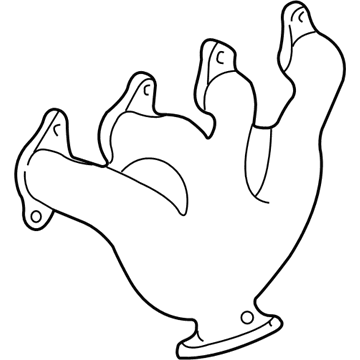

Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 10172857
$163.88 MSRP: $371.69
You Save: $207.81 (56%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1995 Chevrolet S10 | Baja, Base, Durango, EL, LS, Sport, SS, Tahoe, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 94108327
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Chevrolet S10 | Base, Durango, Sport, Tahoe | 4 Cyl 2.2 L DIESEL
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 24577409
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold
- Replaces: 24575263
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 15637697
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Chevrolet S10 | Baja, Base, Tahoe | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 14054859
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 14054401
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984 Chevrolet S10 | Base, Durango, Sport, Tahoe | 4 Cyl 2.0 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Passenger Side Part Number: 14033087
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1985 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 12570692
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2004 Chevrolet S10 | Base, LS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 12569057
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold
- Replaces: 24577360
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2003 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 12555082
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2001 Chevrolet S10 | Base, LS, SS, Xtreme, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 12553194
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995 Chevrolet S10 | Base, LS, SS, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Passenger Side Part Number: 12550122
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2004 Chevrolet S10 | Base, LS, SS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 10112349
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1997 Chevrolet S10 | Base, LS | 4 Cyl 2.2 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Passenger Side Part Number: 10054764
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1995 Chevrolet S10 | Baja, Base, Durango, EL, LS, Sport, SS, Tahoe, ZR2 | 6 Cyl 4.3 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Driver Side Part Number: 10051507
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1993 Chevrolet S10 | Baja, Base, Durango, EL, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Exhaust Manifold, Passenger Side Part Number: 10044878
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1993 Chevrolet S10 | Baja, Base, Durango, EL, Sport, Tahoe | 6 Cyl 2.8 L GAS
View related parts
Chevrolet S10 Exhaust Manifold Part Number: 10044282
Product Specifications
- Other Name: Manifold, Engine Exhaust Manifold; Manifold
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1993 Chevrolet S10 | Base, Durango, EL, Sport, Tahoe | 4 Cyl 2.5 L GAS

Chevrolet S10 Exhaust Manifold

Want to cut long-term maintenance and repair costs? Choose OEM Exhaust Manifold. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet S10 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet S10 Exhaust Manifold includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet S10 vehicles' Exhaust Manifold is helpful in consolidating the engine exhaust gas of various cylinders into one pipe. Manufactured with cast iron or stainless steel, the manifold is equally prone to corrosion due to the heat it endures. Such signs as smelly odors, audible and disturbing sounds, and excessive vibrations are signs that a particular gadget has failed. Daily/weekly checks for leaks, cleaning and inspecting the gasket of the manifold go along with ensure that it lasts longer. The ones called headers aim at offering greater efficiency of the engine owing to the low flow opposition and greater velocity of the exhaust gas. In summary, the exhaust manifold is one of the primary parts of the Chevrolet S10's exhaust system, and taking good care of it will help avoid future problems.

Chevrolet S10 Exhaust Manifold Parts Questions & Experts Answers

Exhaust Manifold
12569057
Q: How to replace the left exhaust manifold on Chevrolet S10?
A:
The first step for replacing the left Exhaust Manifold includes disconnecting the breather tube at the air cleaner outlet duct followed by removing the air cleaner outlet duct retaining wingnut then separating the iat sensor harness connector. After disconnecting the Throttle Body from the air cleaner outlet duct users must remove the intermediate Steering Shaft and disconnect the engine coolant temperature sensor wiring connector. The service technician needs to eliminate the radiator inlet hose support bracket and nut followed by raising the vehicle. Drop the vehicle by the Exhaust Pipe from the Exhaust Manifold before moving on. On the front side move the tire to gain access to bolts holding the rear Exhaust Manifold while pulling out the fender wheelhouse extension. Obtain access to the spark plugs through the wheelhouse opening by rotating each wire boot half a turn then pulling it outward. Lower the vehicle after removing bolts from the Exhaust Manifold and stud. Finally, you can take the Exhaust Manifold together with Spark Plug wire shields off from the engine. Gather and throw away the aged Exhaust Manifold gaskets followed by cleaning all surfaces where gaskets will rest. To install the Exhaust Manifold position the stud in the front hole while the gasket tabs maintain position of the bolts. For installation insert the Exhaust Manifold through the wheelhouse opening after raising the vehicle while positioning it by the engine from under the hood. Before installing the Spark Plug wire shields users should apply threadlock preparation gm p/n 1234,5493 (Canadian P/N 10953488) to Exhaust Manifold bolt threads and stud threads if they are using reinstalled fasteners. The Exhaust Manifold bolts and stud will receive initial torque of 15 nm (11 ft. Lbs.) before receiving final torque of 30 nm (22 ft. Lbs.). Beginning with Spark Plug wire installation onto retainer points and spark plugs, move to the front tire and fender wheelhouse extension after placement. The Exhaust Pipe needs to be joined to the Exhaust Manifold before lowering the vehicle in order to connect the ect sensor electrical connector. First position the radiator inlet hose support bracket along with its nut before tightening them to 36 nm (27 ft. Lbs.) and lastly attach the intermediate Steering Shaft to the vehicle. Handle the maf sensor with care while installing it by avoiding exposure to drops or screen and sensing element damage and apply a small amount of soap-based solution to help with mounting. Lastly finish the process by installing the air cleaner outlet duct onto the Throttle Body and maf sensor and connect the iat sensor harness connector as well as tighten the duct with its retaining wingnut before reattaching the breather tube.
