Make sure this part fits

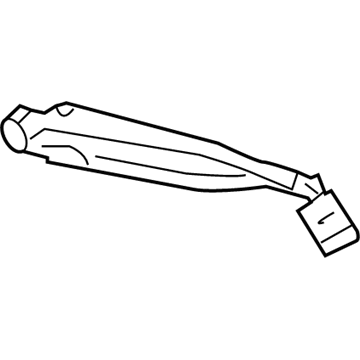

GM 15209058
Wiper Arm, Rear

2004-2009 Cadillac SRX

Customer Questions & Expert Answers (9)
GM 15209058 Wiper Arm, Rear
GM 15209058 Wiper Arm, Rear
  • Part Description
    Arm Assembly-Rear Window Wiper
  • Position
    Rear
  • Replaces
    15939694, 25759095
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Vehicle Fitment

    Year Make Model Trim Engine
    2004-2009 Cadillac SRXBase6 Cyl 3.6 L GAS, 8 Cyl 4.6 L GAS
    Warning: California's Proposition 65
  • Customer Questions & Expert Answers

    Q:
    Is this 15209058 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15209058 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the windshield wiper arm on Cadillac SRX? Posted by Customer
    A:
    Start the work by showing wipers to the park position then lifting the hood latch. The driver side wiper must be placed against the orange line on the center lower part of the windshield tip while the passenger side wiper should rest on an orange dot beside the Wiper Blade on the right lower windshield area. Unscrew cover parts (2 and 5) from hand nuts (3 and 6) before removing hand nuts (3 and 6) from drive spindle parts. You must apply pressure to the end of the liftgate/hood assist rod at its removal or attachment point to prevent damage. When taking off the driver side Wiper Arm first disconnect the upper hood assist rod from both ball studs and lower the hood towards the air inlet for support. When the Wiper Arm refuses to loosen from its drive spindle employees must attach the j 39822 (Wiper Arm Puller) before they remove it. First clean the drive spindle knurls with a fine wire brush before you detach the wiperblade from the easy-release wiperarm. To put the Wiper Blade in place connect it first to the Wiper Arm then align the passenger blade tip to the orange dot and the driver blade tip to the orange line. Position the Wiper Arm on the drive spindle and keep it fixed while tightening the nut (3, 6) to 35 nm (26 lb ft). Fix the upper hood support rods to their metal ends on the hood panel then put on Wiper Arm covers before plugging in the hood. Use the wipers and wash mode to test operation making sure the steering side wiper stays within its set wiping range.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be done after positioning the rear wiper arm for the 2008 Cadillac SRX? Posted by Customer
    A:
    Install the rear wiper arm nut and tighten it to 17 N.m (13 lb ft), followed by the installation of the rear wiper arm nut cap.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should be done after marking the position for the 2004 Cadillac SRX? Posted by Customer
    A:
    Pivot the rear wiper arm nut cap and remove the rear wiper arm nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    How should the hood be positioned during the process for the 2005 Cadillac SRX? Posted by Customer
    A:
    Tilt the hood rearward to the air inlet grille panel and support the hood assembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What is the torque specification for the rear wiper arm nut for the 2009 Cadillac SRX? Posted by Customer
    A:
    Install the rear wiper arm nut and tighten it to 17 Nm (13 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What should be done after marking the position for the 2006 Cadillac SRX? Posted by Customer
    A:
    Pivot the rear wiper arm nut cap and remove the rear wiper arm nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    How do you remove the rear wiper arm for the 2007 Cadillac SRX? Posted by Customer
    A:
    Grasp the wiper arm and rock it from the wiper motor until it disengages.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    Q:
    What tool can be used if the wiper arm does not loosen from the spindle for the 2007 Cadillac SRX? Posted by Customer
    A:
    Use the Wiper Arm Puller (J 39822).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Wiper Arm
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Wiper Arm, Rear 15209058 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15209058 Wiper Arm, Rear is available in the market under the name GM Wiper Arm. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15209058 Wiper Arm, Rear fits certain Cadillac SRX models.
The original GM component designated by manufacturer part number 15209058 maintains top performance when functioning as the Arm Assembly-Rear Window Wiper unit at its Rear. The component 15209058 is constructed from durable material and its dimensions span 10.5 x 1.9 x 1.1 inches while weighing 0.80 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Rear Arm; Arm, Rear Window Wiper. The part 15209058 has available replacement options 15939694, 25759095. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
