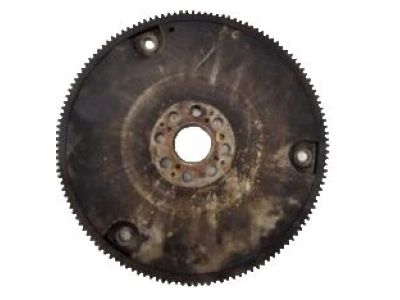

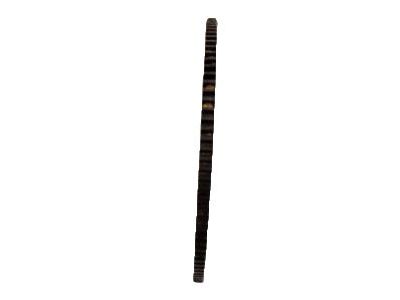

GM 24410097
Drive Plate

Service and repair operations on the flex plate and engine flywheelreplacement require torque/angle meter (J 36660-A) together with crank hub torx socket (J 42098). The first step involves transmission removal before using the crank hub torx socket (J 42098) to counterhold the Crankshaft to remove and discard the Flywheel bolts. After removing the engine Flywheel with its retainer from the Crankshaft you should clean the rear Crankshaft flange before performing an inspection of the engine Flywheel. To install the components you should place the engine Flywheel and retainer onto the Crankshaft while applying thread retaining compound to new Flywheel bolts that use gm p/n 12345493 (Canadian P/N 10953488). The crank hub torx socket (J 42098) can be used to secure the Crankshaft for installation of new Flywheel bolts which must be tightened to 65 nm (48 ft. Lbs.). Use the torque/angle meter (J 36660-A) to carry out bolt rotations on the Flywheel as follows: begin with a 30-degree angle rotation followed by another 15-degree rotation for installation of the transmission.

Starting the engine Flywheel replacement process demands removing the transmission from the system first. The crank hub torx® socket (J42098) enables users to counterhold the Crankshaft while they remove the Flywheel bolts before discarding all bolts. Begin the process by removing the engine Flywheel combined with its retainer from the Crankshaft before proceeding with cleaning operations on the rear Crankshaft flange and checking the engine Flywheel condition. Position the engine Flywheel and retainer onto the Crankshaft while using thread retaining compound on gm p/n 12345493 (Canadian P/N 10953488) new Flywheel bolts. The crank hub torx® socket (J42098) should be used to counterhold the Crankshaft for the installation of new Flywheel bolts which need to be tightened to 65 nm (48 ft. Lbs.). The torque/angle meter (J36660-A) must be used when rotating Flywheel bolts by starting at 30 degrees then proceeding to another 15-degree twist for the last step. Finally, reinstall the transmission.
