Make sure this part fits

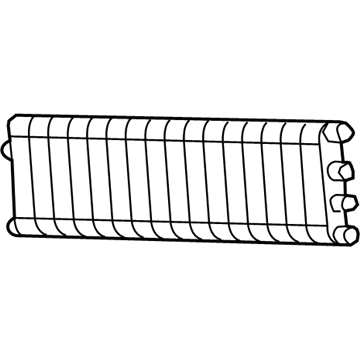

GM 15803358
Oil Cooler

2006-2013 Chevrolet Corvette

Customer Questions & Expert Answers (4)
GM 15803358 Oil Cooler
GM 15803358 Oil Cooler
GM 15803358 Oil Cooler
  • Part Description
    Cooler, Engine Oil Cooler
  • Manufacturer
    General Motors
Make sure this part fits
$676.64 MSRP: $1016.00
You Save: $339.36 (34%)
Ships in 1-2 Business Days
1
ADD TO CART

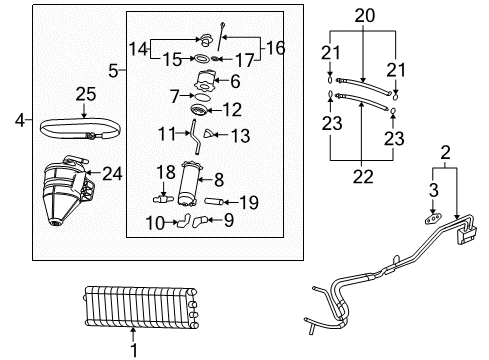

  • 15803358 Oil Cooler is Ref No. 1 in the diagram below

    2010 Chevy Corvette Oil Cooler Diagram for 15803358
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15803358

  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2013 Chevrolet Corvette427, 427 Limited Edition Z06, Base, Grand Sport, Z06, Z06 Carbon8 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15803358 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15803358 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Auxiliary Engine Oil Cooler on Chevrolet Corvette? Posted by Customer
    A:
    To change the auxiliary Engine Oil Cooler, raise together with the support of the vehicle, first. Remove the left side fender liner and the left side wheelhouse extension and then install your oil drain pan under car. Safely detach the Engine Oil Cooler hose/pipe from the outer Oil Cooler and idle the outer Engine Oil Cooler releasing attaching bolts of it and pulling off the cooler itself. Irrevocably dispose of Engine Oil Cooler hose/pipe seals. For installation, first place on new Engine Oil Cooler hose/pipe seals, then place the outer Engine Oil Cooler back in place, but only tighten on the retaining bolts a torque of 10 n.m (89 lb in). Once the oil drain pan has been removed, check to see that the quick connect fitting is correctly installed through engaging it by pushing it on and pulling it back. Reconnect the Engine Oil Cooler hose/pipes back to the outside Oil Cooler and the left wheelhouse extension and the left fender liner. Lastly, replace the oil into the engine and verify whether there are any leaks.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Service and Repair the Oil Cooler on a Chevrolet Corvette? Posted by Customer
    A:
    Secondly, disconnect all the wiring and hydraulic connections, and then remove any extra parts such as air and fuel line clamps, which are now accessible. Do not cover the car with a cover. Normally, this task takes about one hour. This can only be done if you have the designated tools for the repair. Make sure to thoroughly remove the liner, leaving no fibers on the body of the car. Be sure to check that everything is tightly reassembled toward the end of the repair process. Put an oil drain pan under the vehicle, then loosen the Engine Oil Cooler hose/pipe from the external Oil Cooler. Then, remove the retaining bolts and pull out the external Engine Oil Cooler after discarding all hose/pipe seals. For installation, begin by putting new hose/pipe seals, then install the external Engine Oil Cooler and attach it with retaining bolts, tighten up to 10 n.m (89 lb in). Once you remove the oil drain pan, attach the Engine Oil Cooler hose/pipes to the external Oil Cooler, making sure the quick connect fitting is fitting correctly. Install the left wheelhouse extension and left fender liner and refill the engine with oil and watch for leaks.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be installed after placing the new seals for the 2006 Chevrolet Corvette? Posted by Customer
    A:
    Install the external engine oil cooler.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Oil Cooler
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Oil Cooler 15803358 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15803358 Oil Cooler is available in the market under the name GM Engine Oil Cooler, Oil Cooler. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15803358 Oil Cooler fits certain Chevrolet Corvette models.
The original GM component designated by manufacturer part number 15803358 maintains top performance when functioning as the Cooler, Engine Oil Cooler unit. The component 15803358 is constructed from durable material and its dimensions span 37.4 x 10.1 x 6.1 inches while weighing 5.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 15803358 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
If you want to save money in the long run on maintenance and repairs, you should choose OEM products because they're of the top level of durability. Are you on the quest of finding GM parts, our site is worth a visit. We stock an endless selection of high-quality GM components including things like ignition coils all the way through to fan shrouds and all at prices that can not be matched. You have nothing to worry about because all our OEM parts are covered with a manufacturer warranty, which guarantees superior quality and value.
