GM 19244843

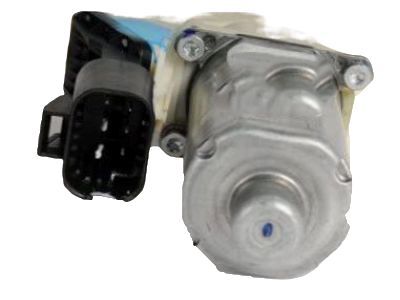

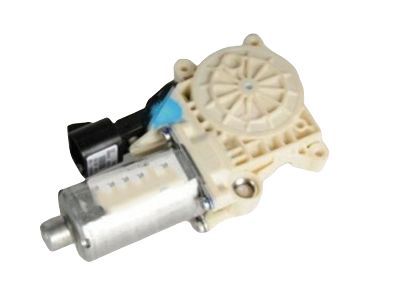

Window Motor, Passenger Side

When replacing the rear door Window Regulator which belongs to rpo wc2 and wc8 start by taking off the door trim panel. Starting the process first remove both the door module with the water deflector. People need to exercise caution during operations involving the express window down and glass manipulation. Take the power window module and switch for connection while using manual operation to move the window all the way down before removing the electrical connector from the Window Regulator motor. Put on 50 mm of masking tape to the inner door edge before removing the three 5-mm allen bolts from the rear window. Begin by removing the door glass before proceeding to take out the front and rear run channels and then remove the Window Regulator fasteners. The last step involves removing the Window Regulator by taking it out from within the round door panel. You should insert the new Window Regulator into the access hole of the interior door panel with the window attach countersunk holes pointing downward before tightening the fasteners to 24 n.m (18 lb ft). The installation starts with attaching the rear door window to the Window Regulator using the three 5-mm allen bolts followed by tightening the window clamp fasteners to 24 n.m (18 lb ft). The masking tape gets removed while the Power Window Switch and module disconnect from the door module and the door trim panel can be reinstalled afterward.

Disconnect the power window switch and module.

Disconnect the power window switch and module, position the rear of the inside handle assembly into the opening of the inner panel, press the front of the assembly inward until it fully engages, and connect the handle rod to the clip guide.

Remove the window regulator fasteners (2, 3).

The handle rod.
