GM 91174168
Steering Gear

1998-2001 Chevrolet Metro

Customer Questions & Expert Answers (3)
GM 91174168 Steering Gear
  • Part Description
    Gear, Steering
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

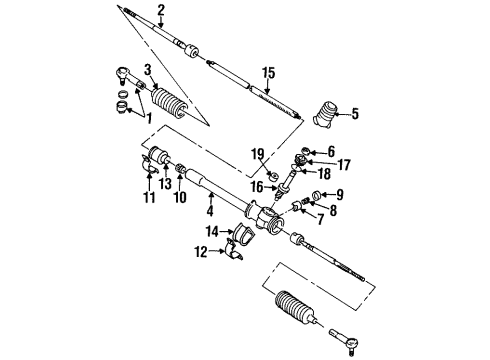

  • 91174168 Steering Gear is Ref No. 4 in the diagram below

    1998 Chevy Metro Steering Gear Diagram for 91174168
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 91174168

  • Vehicle Fitment

    Year Make Model Trim Engine
    1998-2001 Chevrolet MetroBase, LSi3 Cyl 1.0 L GAS, 4 Cyl 1.3 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Hey, is 91174168 a good match for my vehicle? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 91174168 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Replace the Front Rack and Pinion Steering Gear on Chevrolet Metro? Posted by Customer
    A:
    In order to replace the Rack And Pinion, pull back the front part of the driver side floor carpet and remove the steering shaft coupling cover. Loosen (but don't remove) the bolt which retains the upper steering shaft coupling as well as the bolt that retains the lower coupling of the steering shaft to remove the shaft from the pinion. Lift and support the vehicle while removing the front tire and wheel assemblies. Remove the cotter pin and the castle nut from each outer tie rod. Put on the tie rod end remover (J21687-02) and disconnect the outer tie rods from the steering plates. To take off the Rack And Pinion from the bulkhead, you need to get rid of the 4 bolts and the 2 Rack And Pinion mounting brackets and get the Rack And Pinion off through the front wheel opening. For the installment, position the Rack And Pinion towards the back in the vehicle through the front wheel on and attach the 2 mounting brackets on the Rack And Pinion. Secure the Rack And Pinion to the bulkhead using the 4 bolts mounted to the mounting brackets, which should not be overtightened more than 25 nm (18 ft. Lbs.). Reattach the outer tie rods to steering knuckles without loosening the castle nuts to install the cotter pins. Put in the castle nuts on the outer tie rods, tighten them to 43 nm (32 ft. Lbs.) while keeping the cotter pin slotted position against the ball stud slot and it should not be turned over 1/6 a turn from the tightening specification. Fit new cotter pins to hold the castle nuts by bending the end of the pins. Replace the front tire and wheel assemblies, lower the vehicle, and link the pinion shaft to the steering shaft coupling. Secure the pinion shaft to the lower steering shaft coupling with the bolt, tighten it to 25 nm (18 ft. Lbs.), and then hook the bolt on the upper steering shaft coupling to the same specification. Finally, you may install the steering shaft coupling cover and right back reposition the driver's side floor carpet.
    Posted by ChevyPartsGiant Specialist
    Q:
    What lubricant should be applied during assembly for the 2000 Chevrolet Metro? Posted by Customer
    A:
    Apply manual steering gear lubricant to the inside of the outer end of each boot.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Rack And Pinion
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Steering Gear 91174168 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 91174168 Steering Gear is available in the market under the name GM Rack And Pinion. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 91174168 Steering Gear fits certain Chevrolet Metro models.
The original GM component designated by manufacturer part number 91174168 maintains top performance when functioning as the Gear, Steering unit. The component 91174168 is constructed from durable material and its dimensions span 26.0 x 6.6 x 4.9 inches while weighing 8.60 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Gear Assembly. The part 91174168 has available replacement options. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
