Question 1

How to replace the Rack and Pinion steering gear on Chevrolet Colorado?

Accepted Answer

If replacement for the Rack And Pinion is required, stray the Steering Wheel in a straight position using the steering column anti-rotation pin, steering column lock, or a strap to keep the rotation from turning this offense will serve as a defense for the sir system. While holding the Steering Wheel, lift and hold the vehicle and remove both front tire and wheel assemblies. In case it is available, remove the engine protection shield. Remove the outer Tie Rod End from the Steering Knuckle and drain a pan to catch any fluid. Then, remove the Power Steering Hose assembly from the Rack And Pinion. Take off the coupler clamp bolt from the intermediate shaft and remove the intermediate shaft from the Rack And Pinion. Next, you are to take off the vertical and horizontal mounting nuts, washers, and bolts for the Rack And Pinion as well as the cross member if available. After uninstalling the Rack And Pinion from the car, put in the new Rack And Pinion and install the horizontal mounting nuts, washers, and bolts as well as put the crossmember back on if you need one. Next, loosely mount the vertical mounting nuts, washers and bolts, tighten the long bolts to 130 nm (96 lb ft) and isolator clamp bolts the isolator clamp bolts are 100 nm (74 lb ft). Reconnect the intermediate shaft to the Rack And Pinion and install the coupler clamp bolt. Attach the outer Tie Rod End to the Steering Knuckle, connect the Power Steering Hose assembly to the Rack And Pinion and reinstall the engine protection shield if equipped. Lastly, reinstall both front tire and wheel assemblies, lower the vehicle, and bleed out power steering system.

Question 2

How to replace the front Rack and Pinion steering gear (EPS) on Chevrolet Equinox?

Accepted Answer

Locking the Steering Column for damage prevention to the sir system becomes essential when first securing the Steering Wheel using a strap to stop wheel rotation. Once the Steering Wheel is secured with the strap maintain the vehicle in an elevated position before proceeding with wheel removal. The next step involves removing both outer tie rod to Steering Knuckle nuts before disposal and then doing without a pickle fork or wedge-type tool when freeing the ball stud to protect both the seal and bushing. The j 24319-b tool enables separation of tie rods from steering knuckles but the ball stud requires handling to stay stationary. A rotation of the intermediate Steering Shaft allows access to the intermediate shaft pinch bolt for removal until the intermediate to Rack And Pinion pinch bolt is removed and the intermediate shaft disconnects from the Rack And Pinion. Rack And Pinion replacement begins with removing Rack And Pinion to cradle mounting bolts then disconnecting stabilizer links from the stabilizer bar before extracting the Rack And Pinion through the vehicle's right side. Start with heat shield installation using proper gear clearance positioning of the stabilizer followed by right-side Rack And Pinion insertion which centers the bushings inside cradle supports. Start each Rack And Pinion bolt for cradles by hand then torque both bolts to 110 n.m (81 lb ft). Use a new pinch bolt to link the intermediate shaft to the Rack And Pinion while tightening it to 34 n.m (25 lb ft). The stabilizer bar requires the links connection while using a ball stud holder to avoid rotations during nut tightening. Secondly install a new nut between the tie rod and knuckle before winding it to a torque of 25 n.m (18 lb ft) and a 90-degree angle. After tire and wheel installation you should check front wheel alignment then perform alignments if any are needed before the vehicle reaches ground level.

Question 3

How to replace the front Rack and Pinion steering gear (EPS) on Chevrolet Malibu?

Accepted Answer

To replace the Rack And Pinion (EPS) begin by strapping the Steering Wheel to stop it from rotating because locking the Steering Column protects the sir system. Disengage the steering linkage outer tie rods from steering knuckles and separate the intermediate Steering Shaft from the Rack And Pinion only when the wheels face straight forward. First isolate the Rack And Pinion by eliminating the transmission rear mount bolt then remove all Rack And Pinion bolts together with their nuts and washers. The left front wheel opening requires Rack And Pinion access during removal procedures. Operate the new Rack And Pinion through the left front wheel opening by hand-tightening all bolts before completing the installation with a torque of 70 n.m (52 lb ft) followed by turning them an additional 90 degrees. First tighten the transmission rear mount bolt to 90 n.m (66 lb ft) before installing the intermediate Steering Shaft to the Rack And Pinion followed by connecting the steering linkage outer tie rods to the steering knuckles. To complete the procedure, perform steering front toe adjustments for proper alignment purposes.

OEM Chevrolet Rack And Pinion

300 Rack And Pinions found

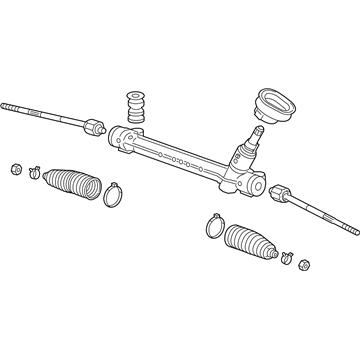

Chevrolet Steering Gear Part Number: 19257638

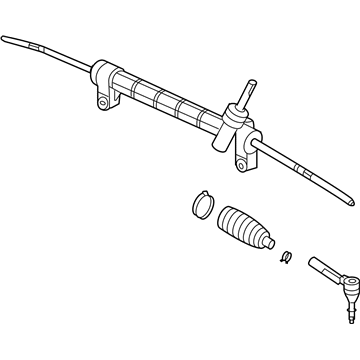

Chevrolet Steering Gear Part Number: 95918421

Chevrolet Steering Gear Part Number: 85607371

Chevrolet Steering Gear Part Number: 84774225

Chevrolet Steering Gear Part Number: 19417977

Chevrolet Steering Gear Part Number: 26047206

Chevrolet Steering Gear Part Number: 42514719

Chevrolet Steering Gear Part Number: 26055468

Chevrolet Steering Gear Part Number: 25956915

Chevrolet Steering Gear Part Number: 25817574

Chevrolet Gear Assembly Part Number: 84168690

Chevrolet Steering Gear Part Number: 25956916

Chevrolet Steering Gear Part Number: 42351613

Chevrolet Steering Gear Part Number: 42502526

Chevrolet Steering Gear Part Number: 42519772

Chevrolet Steering Gear Part Number: 84924576

Chevrolet Steering Gear Part Number: 20870557

Chevrolet Steering Gear Part Number: 85607372

Chevrolet Steering Gear Part Number: 84722750

Chevrolet Steering Gear Part Number: 19330566
