Make sure this part fits

GM 19331389
Upper Hose

2004-2009 GM

Customer Questions & Expert Answers (10)

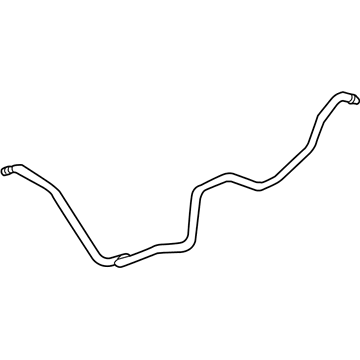

GM 19331389 Upper Hose
GM 19331389 Upper Hose
GM 19331389 Upper Hose
  • Part Description
    Hose, Transmission Fluid Cooler Upper; Transmission Oil Cooler Hose
  • Position
    Upper
  • Replaces
    19129782, 89022496
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

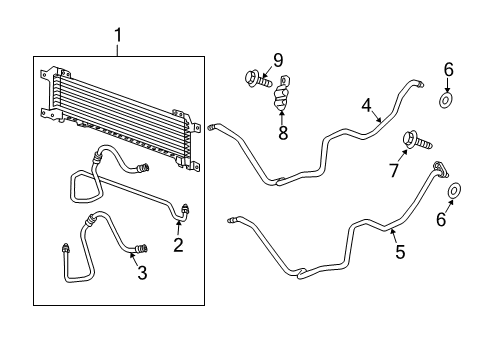

  • 19331389 Upper Hose is Ref No. 4 in the diagram below

    2009 Cadillac SRX Upper Hose Diagram for 19331389
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 19331389

  • Vehicle Fitment

    Year Make Model Trim Engine
    2009, 2004-2006 Cadillac SRXBase6 Cyl 3.6 L GAS
    2005-2007 Cadillac STSBase6 Cyl 3.6 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 19331389 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 19331389 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Front Transmission Oil Cooler Hose on Cadillac STS? Posted by Customer
    A:
    Initiate front transmission fluid cooler pipe replacement through use of the j39400-a halogen leak detector which enables checking if a/c system needs refrigerant discharge. Workers should first remove the A/C Condenser mounting bolts before moving the condenser out of the way to access the auxiliary Transmission Oil Cooler (TOC) lines. Disconnect both the toc lines from the toc as well as the toc line from the toc retainer clip. Begin by removing bolts that join the toc to the cooling Fan Shroud then remove the lh front wheel coupled with the lh front splash shield by revoking its retainers. The j44827 transmission cooler quick connect tool assists in disconnection between front toc lines and rear toc lines which allows the front toc lines to be removed. The first step for installation requires fitting the front toc lines before connecting them to the rear toc lines. The installation process for the vehicle includes attaching the lh front splash shield with its retainers and then positioning the lh front wheel. Mount the toc on the cooling Fan Shroud with bolts fixed at 6.5 nm (58 inch lbs.) before joining the toc line to the toc retainer clip then use 20 nm torque (15 ft. Lbs.) while joining toc lines to the toc. The installation of the condenser requires its repositioning followed by its complete reinstall procedure.
    Posted by ChevyPartsGiant Specialist
    Q:
    How do you access the retainer bracket rivets for the 2009 Cadillac SRX? Posted by Customer
    A:
    Reposition the TOC lines to access the retainer bracket rivets, removing each line individually.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What should be done after disconnecting the TOC lines for the 2004 Cadillac SRX? Posted by Customer
    A:
    Remove the rear TOC line to transmission retainer bolt and disconnect the rear TOC lines from the transmission.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What should be done after disconnecting the front TOC lines for the 2005 Cadillac SRX? Posted by Customer
    A:
    Remove the rear TOC line to transmission retainer bolt and disconnect the rear TOC lines from the transmission.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What are the final steps to complete the installation for the 2006 Cadillac STS? Posted by Customer
    A:
    Reinstall the LH front splash shield, the LH front splash shield retainers, the LH front wheel, and finally, the engine oil filter.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What is the first step in the installation process for the 2007 Cadillac STS? Posted by Customer
    A:
    Start by installing the TOC lines and the retainer bracket, securing the bracket to the TOC lines and riveting it in place.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What is the first step in the installation process for the 2006 Cadillac STS? Posted by Customer
    A:
    Start by installing the front TOC lines and connecting them to the rear TOC lines.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    How should the TOC line and transmission oil cooler lines be connected for the 2006 Cadillac SRX? Posted by Customer
    A:
    Connect the TOC line to the TOC retainer clip and the transmission oil cooler lines to the TOC, tightening the fittings to 20 Nm (15 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    Q:
    What is the torque specification for the TOC retainer bracket bolt for the 2005 Cadillac STS? Posted by Customer
    A:
    Tighten it to 25 Nm (18 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Transmission Oil Cooler Hose
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Upper Hose 19331389 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 19331389 Upper Hose is available in the market under the name GM Transmission Oil Cooler Hose. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 19331389 Upper Hose fits certain Cadillac SRX, STS models.
The original GM component designated by manufacturer part number 19331389 maintains top performance when functioning as the Hose, Transmission Fluid Cooler Upper; Transmission Oil Cooler Hose unit at its Upper. The component 19331389 is constructed from durable material and its dimensions span 7.1 x 31.9 x 12.4 inches while weighing 1.30 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Hose, Transmission Oil Cooler. The part 19331389 has available replacement options 19129782, 89022496. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
