Make sure this part fits

GM 20831223
Emblem, Front

2005-2009 GM

Customer Questions & Expert Answers (8)

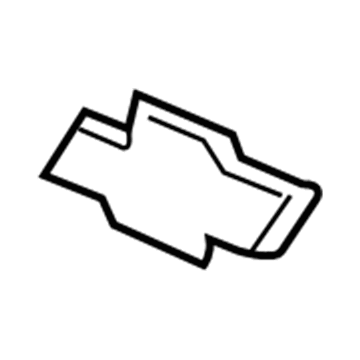

GM 20831223 Emblem, Front
GM 20831223 Emblem, Front
GM 20831223 Emblem, Front
  • Part Description
    Emblem, Radiator Grille And Front End Ornamentation
  • Position
    Front
  • Replaces
    15228866, 15102863, 15791403
  • Manufacturer
    General Motors
Make sure this part fits
$67.77 MSRP: $100.87
You Save: $33.10 (33%)
Ships in 1-3 Business Days
1
ADD TO CART

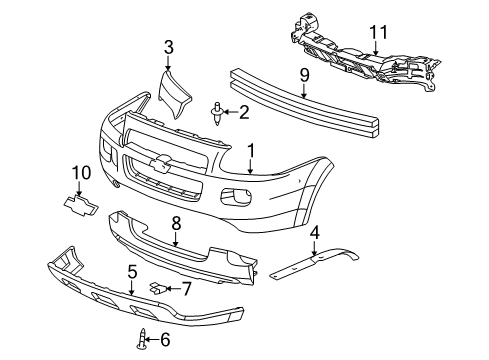

  • 20831223 Emblem, Front is Ref No. 10 in the diagram below

    2005 Chevy Uplander Emblem, Front Diagram for 20831223
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 20831223

  • Vehicle Fitment

    Year Make Model Trim Engine
    2006-2009 Chevrolet TrailblazerLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2006 Chevrolet Trailblazer EXTLT6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS
    2005-2008 Chevrolet UplanderBase, LS, LT6 Cyl 3.5 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 20831223 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 20831223 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace or repair an emblem/nameplate on the liftgate on Chevrolet Uplander? Posted by Customer
    A:
    You should start by protecting the body panel with tape then marking the installation points on the Chevrolet liftgate before replacing or fixing the emblem/nameplate. Heat the emblem with a Heat Gun (J 25070) at a distance of 152 mm for 30 seconds through circular movements. Use a plastic tool to gently pull off the emblem/nameplate from its holding position. Seal off body panels prior to work using a 3M(TM) Scotch Brite molding adhesive remover disk (3M(TM) P/N 07501) while plastic panels need a lint-free cloth and either Varnish Makers and Painters (VMP) naphtha or a 50/50 isopropyl alcohol and water mixture. Use the same cleaning solution to wipe the installation space after drying the area completely. Place a marker sticker at the correct location when the emblem/nameplate mark is missing. Install the UPLANDER emblem at 1.30 inches from the right side while setting the VERSATRAK logo 2.09 inches below the bottom edge following precise dimensions for placement. Place the Chevrolet emblem directly above the license plate pocket center. Use the Heat Gun (J 25070) to warm both surfaces till they reach 27-41°C (80-105°F). Keep the emblem/nameplate temperature within 29-32°C (85-90°F). Carefully remove the backing film before you place and press the emblem/nameplate into its correct marked position. Take off the protective tape from the body panel.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the liftgate emblem/nameplate on Chevrolet Uplander? Posted by Customer
    A:
    A Chevrolet liftgate emblem/nameplate replacement starts with 2 tools: J 25070 Heat Gun and 3M(TM) Scotch Brite molding adhesive remover disk (3M(TM) P/N 07501). Start by covering the body area and then locate the right locations for your new emblem. Point the Heat Gun J 25070 at the surface from 152 mm (6 in) for 30 seconds as you rotate it to loosen the adhesive. Use a plastic tool with a flat blade to take out the emblem/nameplate from its position. Body panels need the 3M(TM) P/N 07501 Scotch Brite molding adhesive remover disk but plastic panels work better with a lint-free cloth soaked in varnish makers and painters (VMP) naphtha or 50/50 isopropyl alcohol and water. Clean and dry the area thoroughly before installation and put tapes at the installation positions to mark them if required. Install the Chevrolet emblem/nameplate on top of the license plate pocket by following set dimensions that center the UPLANDER symbol. Attach the emblem/nameplate when the mounting surface reaches 27-41°C (80-105°F) using the Heat Gun (J 25070) and keep the emblem/nameplate temperature between 29-32°C (85-90°F). Press the emblem/nameplate onto the surface by matching placement marks and applying uniform pressure after you remove its protective film. End your process by taking off the body panel protection tape.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the final step after installing the emblem for the 2006 Chevrolet Trailblazer? Posted by Customer
    A:
    Finally, reinstall the grille.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    What is the final step in the installation process for the 2009 Chevrolet Trailblazer? Posted by Customer
    A:
    Remove the protective tape from the mounting surface after pressing the emblem/nameplate onto it.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    Where should the Pontiac emblem/nameplate be positioned for the 2008 Chevrolet Uplander? Posted by Customer
    A:
    Position it 31 mm (1.30 in) from the right edge and 209 mm (8.23 in) from the bottom edge.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    What temperature should the mounting surface be heated to for the 2006 Chevrolet Uplander? Posted by Customer
    A:
    Heat it to approximately 27-41°C (80-105°F) with the J 25070 (Heat Gun).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    Q:
    What tool should be used to detach the emblem/nameplate for the 2005 Chevrolet Uplander? Posted by Customer
    A:
    Carefully use a plastic, flat-bladed tool to detach the emblem/nameplate from the panel.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Emblem
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Emblem, Front 20831223 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 20831223 Emblem, Front is available in the market under the name GM Emblem. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 20831223 Emblem, Front fits certain Chevrolet Trailblazer, Uplander, Trailblazer EXT models.
The original GM component designated by manufacturer part number 20831223 maintains top performance when functioning as the Emblem, Radiator Grille And Front End Ornamentation unit at its Front. The component 20831223 is constructed from durable material and its dimensions span 9.0 x 3.7 x 0.8 inches while weighing 0.50 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Emblem, Bumper/Fascia. The part 20831223 has available replacement options 15228866, 15102863, 15791403. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
