Make sure this part fits

GM 94853741
Dust Seal

1998-2002 Chevrolet Prizm

Customer Questions & Expert Answers (3)

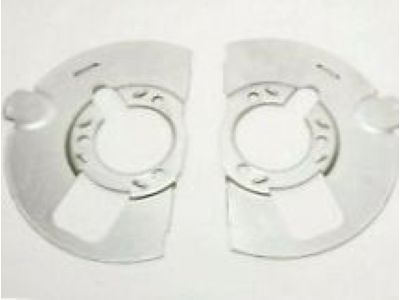

GM 94853741 Dust Seal
GM 94853741 Dust Seal
GM 94853741 Dust Seal
GM 94853741 Dust Seal
  • Part Description
    Shield, Front Wheel Bearing
  • Position
    Front Inner
  • Replaces
    94846343
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits

  • 94853741 Dust Seal is Ref No. 9 in the diagram below

    2001 Chevy Prizm Dust Seal Diagram for 94853741
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 94853741

  • Vehicle Fitment

    Year Make Model Trim Engine
    1998-2002 Chevrolet PrizmBase, LSi4 Cyl 1.8 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Hey, is 94853741 a good match for my vehicle? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 94853741 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the front brake dust shields on Chevrolet Prizm? Posted by Customer
    A:
    To replace the disc Brake Dust Shields on the front, you need to elevate and support the vehicle, then dismount tire and the wheel assembly. If fitted with an antilock brake system (ABS), disconnect the abs wheel-speed sensor by loosening its bolt for it to be set on one side. Next, undo the bolt and brake hose from the strut, then also remove the front brake rotor. The Steering Knuckle can be taken off without breaking the front Ball Joint. Mount the Steering Knuckle in a soft jawed vise and remove the inner seal shield and inner oil seal using the j26941 drive sprocket support bearing cup remover (J26941) and j23907 slide hammer (J23907). Unclip the front wheel bearing retainer with snap ring pliers and remove the brake dust shield bolts with a torx (R) wrench (T30) torque specification 23 nm (17 lb ft). Use the j25287 clutch coil puller (J25287) and j35378 bearing puller pilot (J35378) to pull out the hub and brake dust shield from the Steering Knuckle and pull the brake dust shield off from the hub. For installation, fix the new brake dust shield to the Steering Knuckle using the bolts and tighten them to 8.3 nm (74 ft. Lbs.). Mount the hub on a press with the wheel stud facing down place the Steering Knuckle to the hub and press the hub into the Steering Knuckle with the j35399 differential side bearing cup remover (J35399), j8092 driver handle (J8092), and a press. Now reinstall front wheel bearing retainer using snap ring pliers, then install the inner seal into the Steering Knuckle with the use of j35737-02 inner oil seal installer (J35737-02), using gclb grease (GM P/N 1051344 or equal) to the inner seal lip. In the case of abs, make sure the holes for abs speed sensor match properly. Put on the inner seal shield, take the Steering Knuckle out of the vise, attach it with the ball stud to the vehicle. Finally, install the brake rotor, reconnect the front brake hose and its bolt (torqued at 29 Nm or 22 ft. Lbs.), your abs wheel speed sensor, and its bolt as well (torqued at 8 Nm or 71 inch lbs.), then the tire and wheel assembly, the lowering of the vehicle, and the measuring of the front wheel alignment.
    Posted by ChevyPartsGiant Specialist
    Q:
    What tools are needed to remove the front wheel bearing retainer and brake shield bolts for the 2002 Chevrolet Prizm? Posted by Customer
    A:
    Use snap ring pliers for the front wheel bearing retainer and a TORX wrench (T30) for the three brake shield bolts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Brake Dust Shields
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Dust Seal 94853741 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 94853741 Dust Seal is available in the market under the name GM Brake Dust Shields. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 94853741 Dust Seal fits certain Chevrolet Prizm models.
The original GM component designated by manufacturer part number 94853741 maintains top performance when functioning as the Shield, Front Wheel Bearing unit at its Front Inner. The component 94853741 is constructed from durable material and its dimensions span 3.6 x 3.7 x 0.5 inches while weighing 0.40 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Bearing Dust Shield; Shield. The part 94853741 has available replacement options 94846343. Each vehicle needs 2 units of the part marked as SKU 94853741. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
