2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.Cooling - Radiator & Components
    1986 Pontiac Firebird Cooling System, Radiator, Cooling Fan Diagram 1 - Thumbnail
  • 2.Cooling System, Radiator, Cooling Fan
    1986 Pontiac Firebird Cooling System, Radiator, Cooling Fan Diagram 2 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    52497687
    Radiator
    Radiator Assembly
    • Part Notes: 4 Cylinder;4 Cylinder; Hd Or AC;8 Cylinder;8 Cylinder; W/A.C. & Hd;8 Cylinder; W/A.C. Or Hd
  • 1
    3054101
    Radiator
    Rad Aluminum
    • Part Notes: 4 Cylinder; W/O Hd Or AC
  • 1
    3056380
    Radiator
    Radiator Assembly
    • Part Notes: 6 Cylinder
  • 4
    10409635
    Radiator Cap
    Cap, Radiator Filler *Black
    • Part Notes: All Models
    MSRP: $21.17 Your Price: $11.85
    1
    Add To Cart
  • 8
    22098793
    Fan Blade
    Fan Kit, Engine Air Cooling (Electrical)
    • Part Notes: 2.8l
  • 8 Pontiac 10000338 Fan Blade
    10000338
    Fan Blade
    F-Fan Assembly
    • Part Notes: 2.5l; W/AC
    MSRP: $60.76 Your Price: $42.46
    1
    Add To Cart
  • Pontiac 22049776 Clutch
    22049776
    Clutch
    Clutch Assembly-Fan Blade
    • Part Notes: 8 Cylinder, Stamped Cm
  • 22137318
    Fan & Motor
    Motor Kit, Engine Air Cooling (Electrical)
    • Part Notes: Single Fan
    MSRP: $188.78 Your Price: $91.86
    1
    Add To Cart
  • Pontiac 12474490 Pulley
    12474490
    Pulley
    Pulley, Fan And Coolant Pump
    • Part Notes: 4 Cylinder, 1 Groove
  • Pontiac 14088684 Pulley
    14088684
    Pulley
    Pulley, Fan And Coolant Pump
    • Part Notes: 8 Cylinder, 3 Groove W/O AC
  • Pontiac 14088685 Pulley
    14088685
    Pulley
    Pulley, Fan And Coolant Pump
    • Part Notes: 8 Cylinder, 3 Groove W/AC

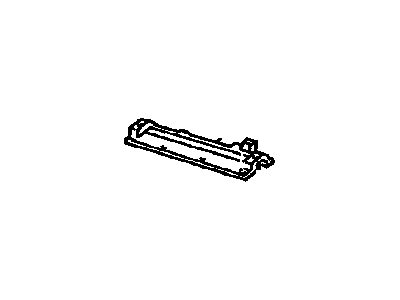

  • Pontiac 22040195 Shroud
    22040195
    Shroud
    Shroud Package-Electrical Cooling Fan
    • Part Notes: 6 Cylinder, Upper & Lower Assy;8 Cylinder, Upper & Lower Assy
