How to replace the center exhaust heat shield on 2005 Chevrolet Equinox?

The first step for center Exhaust Heat Shield replacement includes vehicle elevation and exhaust system removal. The process to replace the center Exhaust Heat Shield starts with removing the guard loop bolts and the underbody propeller shaft guard loop from vehicles equipped with all-wheel drive (AWD). The Fuel Tank requires support before unbolt the strap that holds both it and the rear part of the center heat shield. First remove the rivets which connect the overlapping heat shields at their front and rear before taking off the shield. Push the new shield into position on the vehicle while matching front rivets to common points on the front heat shield before attaching the rivets. Secure the tank strap bolt at 25 nm torques while also using 18 ft. Lbs. As a reference torque value. Awd vehicles require reassembly of the propeller shaft underbody guard loop together with its bolts which should be tightened to 25 nm (18 ft. Lbs.). The exhaust system must be installed once the vehicle receives its proper descent.

OEM 2005 Chevrolet Equinox Exhaust Heat Shield

Heat Shield

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Exhaust Heat Shields found

View related parts
2005 Chevrolet Equinox Heat Shield, Lower Passenger Side Part Number: 12575495
Product Specifications
- Other Name: Shield-Exhaust Manifold Lower Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Lower Passenger Side
- Item Weight: 1.10 Pounds
- Item Dimensions: 22.4 x 6.0 x 5.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 12575495
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Equinox Submodels:
- LS, LT, LTZ | 6 Cyl 3.4 L GAS
View related parts
2005 Chevrolet Equinox Heat Shield, Passenger Side Part Number: 12575494
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Passenger Side
- Item Weight: 0.60 Pounds
- Item Dimensions: 17.2 x 5.8 x 5.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 12575494
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Equinox Submodels:
- LS, LT, LTZ | 6 Cyl 3.4 L GAS
View related parts
2005 Chevrolet Equinox Heat Shield, Driver Side Part Number: 12575493
Product Specifications
- Other Name: Shield-Exhaust Manifold Heat; Exhaust Heat Shield; Shield, Exhaust Manifold
- Position: Driver Side
- Item Weight: 2.60 Pounds
- Item Dimensions: 22.4 x 6.0 x 5.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 12575493
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Equinox Submodels:
- LS, LT, LTZ | 6 Cyl 3.4 L GAS
View related parts

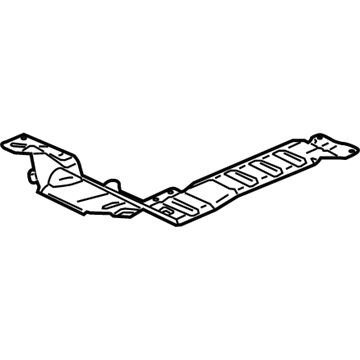

2005 Chevrolet Equinox Heat Shield Part Number: 25912945
Product Specifications
- Other Name: Shield Assembly-Exhaust Heat (At Dash Panel); Exhaust Heat Shield; Shield, Exhaust Pipe
- Replaces: 22722801
- Item Weight: 0.90 Pounds
- Item Dimensions: 43.4 x 9.4 x 5.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 25912945
- Warranty: This genuine part is guaranteed by GM's factory warranty.
More Info
Fits the following 2005 Chevrolet Equinox Submodels:
- LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS

2005 Chevrolet Equinox Exhaust Heat Shield

With a comprehensive array of OEM 2005 Chevrolet Equinox Exhaust Heat Shield, from fuel pumps to door handles, our website is a one-stop-shop for your needs. All our genuine 2005 Chevrolet Equinox Exhaust Heat Shield are backed by the manufacturer's warranty and are offered at competitive prices in the market. Rest assured, you can shop with complete confidence.

2005 Chevrolet Equinox Exhaust Heat Shield Parts Questions & Experts Answers

Q: How to replace the center exhaust heat shield on 2005 Chevrolet Equinox?
A: The first step for center Exhaust Heat Shield replacement includes vehicle elevation and exhaust system removal. The process to replace the center Exhaust Heat Shield starts with removing the guard loop bolts and the underbody propeller shaft guard loop from vehicles equipped with all-wheel drive (AWD). The Fuel Tank requires support before unbolt the strap that holds both it and the rear part of the center heat shield. First remove the rivets which connect the overlapping heat shields at their front and rear before taking off the shield. Push the new shield into position on the vehicle while matching front rivets to common points on the front heat shield before attaching the rivets. Secure the tank strap bolt at 25 nm torques while also using 18 ft. Lbs. As a reference torque value. Awd vehicles require reassembly of the propeller shaft underbody guard loop together with its bolts which should be tightened to 25 nm (18 ft. Lbs.). The exhaust system must be installed once the vehicle receives its proper descent.
