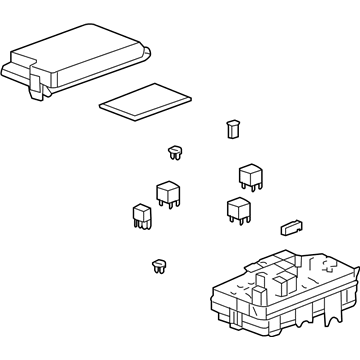

OEM 2007 Cadillac XLR Fuse Box

2007 Cadillac XLR Parts Questions & Experts Answers

• Q: How to replace the underhood fuse box on 2007 Cadillac XLR?

  A: The first step to replace the underhood electrical center or Fuse Box requires disconnecting the negative Battery Cable followed by unthreading the positive Battery Cable lead nut from the Fuse Box before moving the cable lead out of the way. The first step requires Fuse Box cover removal followed by electrical cable retainer disengagement at the Fuse Box rear. Turn the Fuse Box upside down before opening its lower cover and release the bolts holding the engine and i/p and forward lamp wiring harness connectors to the Fuse Box. The Engine Wiring Harness Connector together with the i/p wiring harness connector need removal from the Fuse Box before the box gets removed. Presentation of underhood Fuse Box arrangements begins by joining i/p wiring harness connector and Engine Wiring Harness Connector to the Fuse Box followed by tightening connector bolts to 7 n.m (62 lb in). Set the electrical center vertically after which you should install the electrical cable retainers on the back and insert the Fuse Box cover. To finish the installation process you should place the positive Battery Cable lead on the Fuse Box stud before securing the lead nut to 10 n.m (89 lb in) specifications and reestablishing the negative Battery Cable connection.
