How to replace the muffler on Cadillac Escalade EXT?

One should begin Muffler (2500) replacement by properly raising and supporting the vehicle. Start by removing the exhaust Muffler right Catalytic Converter nuts before loosening the exhaust pipe clamp near the left Catalytic Converter. Apply lubrication to insulators at the spots where the Muffler assembly hangers fit in order to simplify removal. You will need help to take out the exhaust system hanger insulators numbered 4 through 6. Pull the Muffler assembly rearward to detach it from the catalytic converters before rotating the Muffler towards the vehicle's front to extract it. The installation process will benefit from additional lubrication of the insulators. You need help moving the Muffler assembly into position for installation over the rear axle. The system should travel backwards to reach the catalytic converters before sliding forward to connect. The insulators required installation onto exhaust system hangers numbered 4, 5, and 6. After installation of the exhaust pipe clamp which secures the left Catalytic Converter use 44 n.m (32 lb ft) torque then install Muffler nuts to the right Catalytic Converter while applying 45 n.m (33 lb ft) torque. Finally, lower the vehicle.

OEM Cadillac Escalade EXT Muffler

Exhaust Muffler

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Mufflers found

View related parts
Cadillac Escalade EXT Muffler Part Number: 88983207
Product Specifications
- Other Name: Muffler Assembly, Exhaust (W/Exhaust & Tail Pipe & 3Way Catalytic Converter; Muffler, Exhaust
- Replaces: 88983203
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 Cadillac Escalade EXT | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade EXT Muffler Part Number: 88983202
Product Specifications
- Other Name: Muffler Assembly, Exhaust (W/Exhaust & Tail Pipe & 3Way Catalytic Converter; Muffler, Exhaust
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002 Cadillac Escalade EXT | Base | 8 Cyl 6.0 L GAS
View related parts

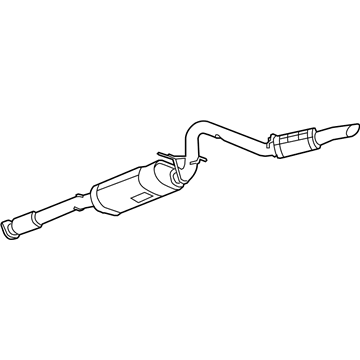

Cadillac Escalade EXT Muffler & Pipe Part Number: 22812179
Product Specifications
- Other Name: Muffler Assembly-Exhaust (W/Resonator, Exhaust & Tail Pipe; Exhaust Pipe; Muffler; Muffler, Exhaust Tail Pipe; Muffler, Exhaust
- Replaces: 15896610
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2013 Cadillac Escalade EXT | Base, Luxury, Premium | 8 Cyl 6.2 L FLEX
View related parts
Cadillac Escalade EXT Muffler & Pipe Part Number: 20757530
Product Specifications
- Other Name: Muffler Assembly-Exhaust (W/Resonator, Exhaust & Tail Pipe; Exhaust Pipe; Muffler; Muffler, Exhaust Tail Pipe; Muffler, Exhaust
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2010 Cadillac Escalade EXT | Base | 8 Cyl 6.2 L FLEX, 8 Cyl 6.2 L GAS
View related parts

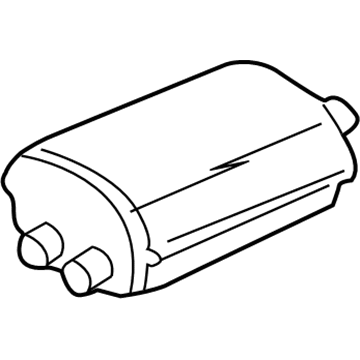

Cadillac Escalade EXT Muffler Part Number: 10398388
Product Specifications
- Other Name: Muffler, Exhaust
- Replaces: 15113060, 88983219, 10365858, 15090630, 88983220
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006, 2002 Cadillac Escalade EXT | Base | 8 Cyl 6.0 L GAS
View related parts

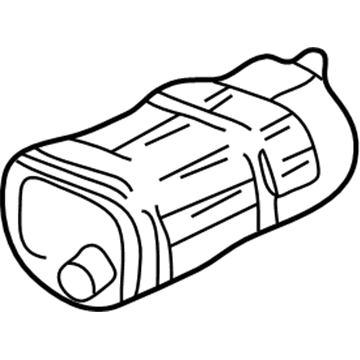

Cadillac Escalade EXT Muffler Part Number: 10398387
Product Specifications
- Other Name: Muffler, Exhaust
- Replaces: 15090629, 15182692, 10365857, 15072973, 15106851, 88983218, 88983217, 15113059
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002 Cadillac Escalade EXT | Base | 8 Cyl 6.0 L GAS
View related parts
Cadillac Escalade EXT Muffler Part Number: 10398370
Product Specifications
- Other Name: Muffler Assembly-Exhaust (W/Exhaust & Tail Pipe & 3W; Muffler, Exhaust
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 Cadillac Escalade EXT | Base | 8 Cyl 6.0 L GAS

Cadillac Escalade EXT Muffler

Want to cut long-term maintenance and repair costs? Choose OEM Muffler. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac Escalade EXT parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac Escalade EXT Muffler includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac Escalade EXT Muffler Parts Questions & Experts Answers

Muffler & Pipe
20757530
Q: How to replace the muffler on Cadillac Escalade EXT?
A:
One should begin Muffler (2500) replacement by properly raising and supporting the vehicle. Start by removing the exhaust Muffler right Catalytic Converter nuts before loosening the exhaust pipe clamp near the left Catalytic Converter. Apply lubrication to insulators at the spots where the Muffler assembly hangers fit in order to simplify removal. You will need help to take out the exhaust system hanger insulators numbered 4 through 6. Pull the Muffler assembly rearward to detach it from the catalytic converters before rotating the Muffler towards the vehicle's front to extract it. The installation process will benefit from additional lubrication of the insulators. You need help moving the Muffler assembly into position for installation over the rear axle. The system should travel backwards to reach the catalytic converters before sliding forward to connect. The insulators required installation onto exhaust system hangers numbered 4, 5, and 6. After installation of the exhaust pipe clamp which secures the left Catalytic Converter use 44 n.m (32 lb ft) torque then install Muffler nuts to the right Catalytic Converter while applying 45 n.m (33 lb ft) torque. Finally, lower the vehicle.
