How to replace the Motor and Transmission Mount on Chevrolet Astro?

You must properly elevate your vehicle before beginning the transmission mount replacement process. A transmission jack should support the transmission before the two nuts securing the transmission mount to the transmission support are removed. When the transmission receives sufficient elevation to let the mount rest without support the bolts can be uninstalled from the transmission mount. After increasing the transmission height a little, remove the transmission mount from between the transmission and support before removing the mount from the vehicle. To install the new transmission mount position it first before adding bolts that fasten it to the transmission (for 2WD models) or to the transfer case adapter (AWD models). Tighten each bolt to 47 nm (35 ft. Lbs.) for awd vehicles but 50 nm (37 ft. Lbs.) for 2wd vehicles. After positioning the transmission you need to fasten its two securing nuts onto the transmission support. Use a torque wrench to reach a tight 40 nm force (30 ft. Lbs.) if you finish all tasks you can remove the transmission jack so you can lower the vehicle.

OEM Chevrolet Astro Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

16 Motor And Transmission Mounts found

View related parts

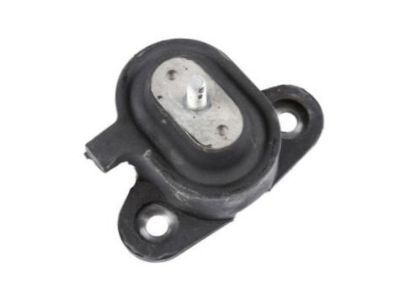

Chevrolet Astro Motor Mount Part Number: 22188284
$51.94 MSRP: $88.43
You Save: $36.49 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount; Engine Mount Torque Strut; Engine Mount Bracket; Engine Mount; Side Mount; Front Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Replaces: 17989409, 22145879, 14082803, 17996145, 22112974, 22146241, 22145863, 17981702
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Mount Part Number: 22112045
$10.46 MSRP: $48.87
You Save: $38.41 (79%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1993 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Motor Mount, Passenger Side Part Number: 15638410
$30.13 MSRP: $62.42
You Save: $32.29 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1990 Chevrolet Astro | Base, CL, CS | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Astro Mount Part Number: 22145766
$84.58 MSRP: $132.48
You Save: $47.90 (37%)
Product Specifications
- Other Name: Mount, Transmission Mounting; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Transmission Mount
- Replaces: 22112556
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Mount Part Number: 22201317
Product Specifications
- Other Name: Trans Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Mount, Transmission Mounting
- Replaces: 22112895
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Chevrolet Astro | Base, CL, CS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Motor Mount Part Number: 17982949
Product Specifications
- Other Name: Trans Mount; Engine Mount Torque Strut; Engine Mount Bracket; Transfer Case Mount; Transmission Mount; Transmission Mount Bracket; Rear Mount; Mount; Mount, Transmission Mounting
- Replaces: 17987919, 22111684, 22188144, 22145724, 17998216, 17990869, 17998217
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1993 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Mount Part Number: 15717594
Product Specifications
- Other Name: Trans Mount; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Mount, Transmission Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2005 Chevrolet Astro | Base, LS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Bracket Part Number: 15708673
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Bracket, Passenger Side Part Number: 15708672
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Bracket, Driver Side Part Number: 15697577
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Motor Mount, Driver Side Part Number: 15638409
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Front Mount; Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1990 Chevrolet Astro | Base, CL, CS | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Astro Bracket, Driver Side Part Number: 15612693
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1994 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Bracket, Driver Side Part Number: 15596459
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1993 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Bracket, Passenger Side Part Number: 15596458
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1994 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Mount, Passenger Side Part Number: 15141594
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Mount, Engine Mounting
- Position: Passenger Side
- Replaces: 22112500
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Mount, Driver Side Part Number: 15141593
Product Specifications
- Other Name: Mount Assembly-Engine; Engine Mount Torque Strut; Engine Mount Bracket; Motor Mount; Mount, Engine Mount Dampening; Mount, Engine Mounting
- Position: Driver Side
- Replaces: 22112499
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-2005 Chevrolet Astro | Base, CL, CS, LS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS

Chevrolet Astro Motor And Transmission Mount

Want to cut long-term maintenance and repair costs? Choose OEM Motor And Transmission Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Astro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Astro Motor And Transmission Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Motor And Transmission Mount in Chevrolet Astro is very important for stabilization of the engine and for minimizing vibrations of the transmission. This component is meant to work as a shock absorber for the vibrations produced by the engine so as to give a smooth ride and to safeguard the integrit of the car's structure. Motor and transmission mounts for Chevrolet Astro may be of different styles depending on the type of the transmission system. The primary objective remains even in these variants of spindles and it is primarily to provide stability and reduce vibrations. It is thus important for the maintenance and the optimal performance of the Chevrolet Astro vehicles to understand the differences of these mounts.

Chevrolet Astro Motor And Transmission Mount Parts Questions & Experts Answers

Mount
22145766
Q: How to replace the Motor and Transmission Mount on Chevrolet Astro?
A:
You must properly elevate your vehicle before beginning the transmission mount replacement process. A transmission jack should support the transmission before the two nuts securing the transmission mount to the transmission support are removed. When the transmission receives sufficient elevation to let the mount rest without support the bolts can be uninstalled from the transmission mount. After increasing the transmission height a little, remove the transmission mount from between the transmission and support before removing the mount from the vehicle. To install the new transmission mount position it first before adding bolts that fasten it to the transmission (for 2WD models) or to the transfer case adapter (AWD models). Tighten each bolt to 47 nm (35 ft. Lbs.) for awd vehicles but 50 nm (37 ft. Lbs.) for 2wd vehicles. After positioning the transmission you need to fasten its two securing nuts onto the transmission support. Use a torque wrench to reach a tight 40 nm force (30 ft. Lbs.) if you finish all tasks you can remove the transmission jack so you can lower the vehicle.
