OEM Chevrolet Aveo Oil Pump

Chevrolet Aveo Oil Pump Parts Questions & Experts Answers

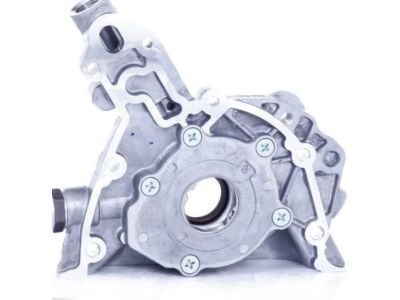

• Oil Pump
  25182606
  Q: How to inspect the oil pump and what are the standard and maximum clearances for its components on Chevrolet Aveo?

  A: The inspection of the oil pump begins with body clearance measurement using a feeler gage when the driven gear is pushed to one side of the body. Replacement of the oil pump body sub-assembly is needed when the clearance exceeds 0.17 mm (0.0067 inch). The tip clearance between driven gear teeth and drive gear teeth must be measured with usual values between 0.07 - 0.15 mm (0.0028 - 0.0059 inch) and a maximum value of 0.15 mm (0.0059 inch). A replacement of the oil pump body sub-assembly becomes necessary if maximum values are exceeded. The measurement of gear side clearance requires a steel straight edge with a feeler gage that must be applied across both gears to check the standard 0.02 - 0.05 mm (0.0008 - 0.002 inch) clearance and the maximum limit of 0.05 mm (0.002 inch) which may require replacements of the drive gear or either gear and the pump body if exceeded. A dial indicator should measure the inner diameter of the oil pump body bushing to check if it exceeds standard 38.126 mm (1.50102 inch) or maximum 38.188 mm (1.50346 inch) which requires replacing the oil pump body sub-assembly. A dial indicator should be used to measure stator shaft bushing inside diameters to determine if the device requires replacement when the readings exceed 18.5 mm (0.728 inch) from the 18.437 mm (0.72586 inch) standard.
