OEM Chevrolet Tracker Starter

Chevrolet Tracker Starter Parts and Q&A

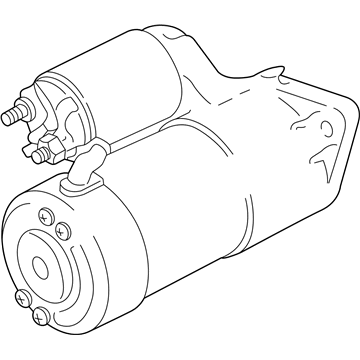

• Starter
  30024598
  Q: How to service and repair the starter motor on Chevrolet Tracker?

  A:

  Service and repair operations for the Starter motor begin with lubricating the gear shaft using lubriplate lubricant gm p/n 1050109 or an equivalent product. The service starts with combining the internal gear with the gear shaft and ending with attachment of both overrunning clutch assembly and overrunning clutch stop ring. The overrunning clutch retaining ring needs attachment to the gear shaft assembly where the overrunning clutch stop ring must properly encase the retaining ring. Lubriplate gm p/n 1050109 lubricant or equivalent lubricant should be applied to contact points on the pinion drive lever before installing the gear shaft assembly with the pinion drive lever into the drive housing. Fitting the drive housing with a pinion drive lever seal and plate requires light application of lubriplate gm p/n 1050109 or equivalent lubricant on idle gears before aligning the bolt holes in the drive housing with the notches in the idle gear retainer for the 3 idle gears installation. Use lubriplate lubricant gm p/n 1050109 or an equivalent product to lightly grease the Armature bearing before installing it to the gear shaft. Install the Armature after placing it onto the field frame followed by the Armature bushing onto the Armature. Attach the field frame to the drive housing by using the matchmarks before mounting the brushholder assembly to the commutator end. Place the spring washer together with the commutator end cover before securing them with two bolts and two screws using torque of 8 n.m (71 lb in). Use lubriplate lubricant gm p/n 1050109 or equivalent to lightly grease the solenoid plunger before installation of the solenoid plunger along with spring. Secure the solenoid to the drive housing by matching position marks and fasten it with two solenoid screws tightened to 7 n.m (62 lb in). The field coil lead wire installation with its retaining nut should be done to the solenoid while the wire nut needs a torque of 10 n.m (89 lb in) before placing the Starter onto the vehicle.
• Starter
  30020753
  Q: How to replace the starter motor on Chevrolet Tracker?

  A:

  Start by disconnecting the negative Battery Cable along with removing the air cleaner hose. After disconnecting the Starter solenoid electrical connector remove the retaining nut and positive Battery Cable from the Starter solenoid. The Starter motor requires two bolts for manual transmissions but automatic transmissions need both lower bolts with an upper nut and bolt for installation. The installation begins by removing the Starter motor assembly's upper mounting bolt and negative Battery Cable followed by lowering the assembly from the vehicle through removal of the lower mounting bolt. Put the new Starter motor assembly into the correct position before inserting the lower mounting bolt first. Begin by installing the upper bolt and negative cable to the Starter motor assembly and secure the mounting bolts at 30 n.m (22 lb ft). Install the positive Battery Cable onto the Starter solenoid using a single nut before tightening the solenoid nut to 10 n.m (89 lb in). Before completion, reconnect the Starter solenoid electrical connector and install the air cleaner hose before tightening the negative Battery Cable-to-terminal retainer to 15 n.m (11 lb ft).
