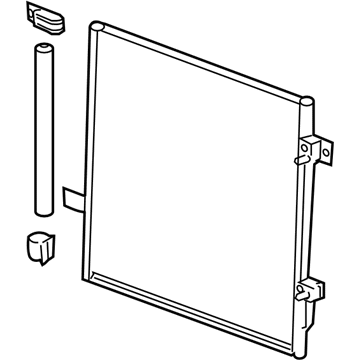

GM 25964057
Condenser

You need the following tools to replace an air conditioning condenser: halogen leak detector (J 39400-A). Halogen leak detector (J 39400-A). The replacement process starts with Radiator removal until the equipment can recover refrigerant. The removal sequence begins with the receiver dryer followed by detachment of the condenser inlet hose bolt and the inlet hose. Next proceed to remove the two bolts securing the condenser outlet hose along with both outlet and inlet hoses. Pull the condenser out of its Radiator mounts before completely removing it. When you replace the condenser unit use the correct amount of refrigerant oil as described. Place the new condenser onto the Radiator and transfer needed components from your previous condenser. When installing the condenser into Radiator mounts utilize a torque tightener up to 28 nm that corresponds to 21 lb ft. Install the receiver dryer first then connect the condenser inlet hose along with its bolt which should be tightened to 20 nm (15 lb ft). Fasten and tighten the condenser outlet hose with its bolt to 20 nm (15 lb ft). Reinstallation of the Radiator should be followed by a/c system evacuation and recharging and a halogen leak detector (J 39400-A) inspection of fittings.

The following equipment set is necessary for replacing an air conditioning condenser: halogen leak detector (J 39400-A). Start by taking off the Radiator followed by refrigerant recovery steps. Start by taking out the receiver dryer then disassemble the condenser inlet hose bolt and inlet hose. Start by removing the bolt from the condenser outlet hose followed by removing the outlet hose. Use a wrench to remove the condenser from its mounts which hold it to the Radiator before the complete extraction. For new condenser installation follow the refrigerant system specifications to determine the appropriate amount of refrigerant oil addition. First attach the condenser to the Radiator before moving essential components from the removed condenser system. Apply 28 nm (21 lb ft) of torque to condenser retaining bolts before you secure the condenser to the mounts on the Radiator. Place the receiver dryer in position before installing the condenser inlet hose which needs a bolt with a torque value of 20 nm (15 lb ft). When installing the condenser outlet hose connecting hardware secure it using a torque setting of 20 nm (15 lb ft). The Radiator goes back into position followed by an evacuation and recharge of the a/c system before a halogen leak detector (J 39400-A) checks for any fitting leaks.
