Make sure this part fits

GM 19302024
Control Module

1999-2002 GM

Customer Questions & Expert Answers (4)

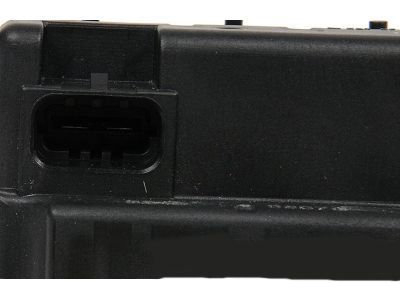

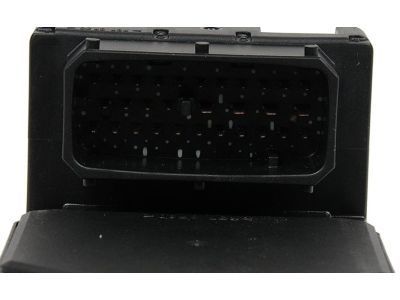

GM 19302024 Control Module
GM 19302024 Control Module
  • Part Description
    Module, Electronic Brake Control; ABS Control Module
  • Replaces
    12457657
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number19302024
    Part DescriptionModule, Electronic Brake Control; ABS Control Module
    Other NamesModule Kit, Electronic Brake Control
    Item Dimensions9.1 x 6.1 x 5.2 inches
    Item Weight2.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces12457657
    ManufacturerGeneral Motors
    SKU19302024
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Trim Engine
    1999-2002 Chevrolet CamaroZ28, Z28 SS8 Cyl 5.7 L GAS
    1999-2002 Pontiac FirebirdFormula, Trans Am8 Cyl 5.7 L GAS
  • Customer Questions & Expert Answers

    Q:
    Is this 19302024 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 19302024 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to remove and install the ABS Control Module on Chevrolet Camaro? Posted by Customer
    A:
    Begin the ABS Control Module (ABSCM) removal process only when the ignition switch shows OFF to safeguard equipment. Unlock the tab on the ABSCM harness connector and then disconnect both the ABSCM harness connector and the pump motor connector that is found at the bottom of the ABSCM. Using caution to protect the solenoid valves and seal we will get rid of the six screws which connect ABSCM to BPMV and discard them. Separate the ABSCM from the BPMV with gentle force while making note of the wave spring position for the correct reinstall. System operations that include ABS only require removal of one wave spring between ABSCM and BPMV but ABS/TCS systems require removal of two wave springs that need to be discarded. Clean the BPMV gasket area on the surface by using alcohol poured onto a clean rag before installing. For systems with ABS only use one wave spring at the identified ABSCM to BPMV interface; ABS/TCS systems require two wave springs installed in the same way. Refitting the ABSCM to the BPMV starts with tightening the top four mounting screws to 2.9 Nm (26 inch lbs.) in an X pattern before securing the bottom two mounting screws to the same torque. The pump motor connector requires connection to the ABSCM's bottom end before applying the ABSCM harness connector with proper tab insertion. After switching off the ignition to the RUN position you must run the A Diagnostic System Check - ABS.
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be done if it has only ABS for the 2002 Chevrolet Camaro? Posted by Customer
    A:
    Remove and discard one wave spring.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar ABS Control Module
    Q:
    What is the torque specification for tightening the EBCM to the BPMV for the 2001 Chevrolet Camaro? Posted by Customer
    A:
    Tighten the top four mounting screws to 2.9 Nm (26 inch lbs.) in an X pattern, followed by the bottom two screws to the same torque specification.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar ABS Control Module
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM 19302024, Excellent Performance and Perfect Fitment

To ensure reliability, purchase GM part # 19302024 Control Module. It is sometimes referred to as GM ABS Control Module. Choosing OEM parts is the optimal decision for guaranteeing superior quality and perfect performance. These components undergo stringent quality checks and are carefully constructed to comply with GM's factory specifications, ensuring a smooth installation process.

ChevyPartsGiant.com is a leading supplier of genuine GM parts such as GM 19302024 Control Module. Our website boasts an extensive inventory of OEM GM parts, available at highly competitive prices in the market. Should you require any new genuine GM parts, rest assured we will deliver them swiftly and efficiently to your doorstep. Furthermore, all our parts come with the assurance of a manufacturer's warranty. For detailed Chevy parts information, click here.
Choose ChevyPartsGiant for discounted prices, exceptional service and fast delivery
