GM 15162148

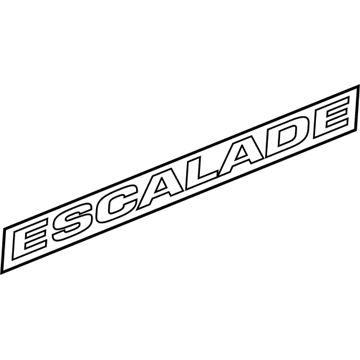

Nameplate, Front

If you want to put on a new emblem/nameplate for the pickup box, start by gathering the tools you need: You will use the 3M(TM) Scotch Brite Molding Adhesive Remover Disk (3M(TM) P/N 07501) and the Heat Gun (J 25070) together in this process. Start the process by putting tape around where the emblem is to keep things lined up and safe. Move the Heat Gun (J 25070) 152 mm (6.0 in) away from the surface and heat the emblem/nameplate in circles for around thirty seconds. Remove the emblem/nameplate by sliding a plastic flat-bladed tool between it and the pickup box, and then use the 3M(TM) Scotch Brite Molding Adhesive Remover Disk (3M(TM) P/N 07501) to get rid of all adhesive from both the panel and the emblem. Use VMP naptha and a cloth to clean the pickup box surface. Should the position of the emblem/nameplate not be indicated, put tape down as a guide. Use the Heat Gun (J 25070) to heat the pickup box surface up to 21°C (70°F) carefully, but make sure you don't touch the adhesive on the emblem/nameplate. While you are still removing the backing, start by pressing the front end of the emblem/nameplate onto the pickup box panel and attach as you go. Use your hand to roll the emblem/nameplate and make sure it is stuck in place before you take off the tape around it.

Before starting this job you need to place tape on the emblem area to shield it and keep it aligned. A heat gun at 152mm from the emblem should gently heat the surface in a circular motion during 30 seconds. Use the plastic flat-blade tool to take out the emblem/nameplate from its door surface before cleansing away all adhesive traces from both door panel and emblem surfaces using 3M(TM) scotch brite molding adhesive remover disk or an equivalent product. Wipe the door surface clean with VMP naptha from varnish makers and painters. Location markings need replacement tape and heat gun warming to 70°F (21°C) on the door surface. Place the nameplate over the surface first then take off the protective layer from its front and place the nameplate gently on the door panel. Hold the emblem/nameplate in position to make sure it sticks well and then look for bonding before finally taking off tape from the edges of the door.
