Make sure this part fits

GM 22174912
Lower Mount

1995-2005 GM

Customer Questions & Expert Answers (11)

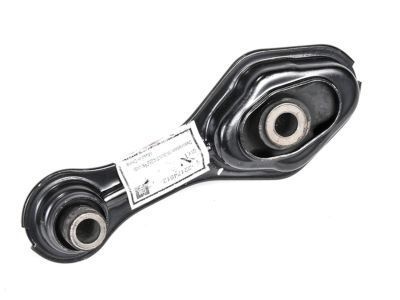

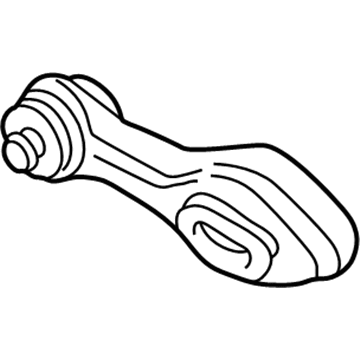

GM 22174912 Lower Mount
GM 22174912 Lower Mount
  • Part Description
    Strut, Engine Mounting; Engine Mount Bracket; Engine Torque Strut; Motor Mount
  • Replaces
    22145446
  • Manufacturer
    General Motors
  • Manufacturer's Notes
    This part is discontinued.
Make sure this part fits
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine GM
    Manufacturer Part Number22174912
    Part DescriptionStrut, Engine Mounting; Engine Mount Bracket; Engine Torque Strut; Motor Mount
    Other NamesStrut
    Item Dimensions8.2 x 3.2 x 2.1 inches
    Item Weight1.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces22145446
    ManufacturerGeneral Motors
    SKU22174912
    WarrantyThis genuine GM part is guaranteed by GM's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California's Proposition 65
  • Vehicle Fitment

    Year Make Model Trim Engine
    1995-2005 Chevrolet CavalierBase, LS, LS Sport, RS, Z244 Cyl 2.2 L BI-FUEL, 4 Cyl 2.2 L GAS, 4 Cyl 2.3 L GAS, 4 Cyl 2.4 L GAS
    1995-2005 Pontiac SunfireBase, GT, SE4 Cyl 2.2 L GAS, 4 Cyl 2.3 L GAS, 4 Cyl 2.4 L GAS
  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 22174912 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 22174912 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the Engine Mount Torque Strut on Chevrolet Cavalier? Posted by Customer
    A:
    The first step to replace the engine mount strut includes both raising and supporting the vehicle. Begin by removing both the right engine splash shield together with engine mount strut bolts followed by extraction of the engine mount strut. Installation of the new engine mount strut starts with following the fastener notice in service precautions. Follow the fastener notice in service precautions for installing the engine mount strut bolts by tightening them to 100 nm (74 ft. Lbs.) with a 90-degree turn. The right engine splash shield and vehicle lowering operation completes the procedure.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Properly Install an Engine Mount Torque Strut on a Chevrolet Cavalier? Posted by Customer
    A:
    The first step for replacing the engine mount strut requires vehicle suspension and elevation. Start by removing the right engine splash shield followed by the engine mount strut bolts to subsequeuntly extract the engine mount strut. The new engine mount strut needs installation first with attention to the fastener notice provided for service precautions. After installing the engine mount strut bolts apply torque exactly at 100 nm (74 ft. Lbs.) followed by performing a 90-degree torque addition. The last step is to reinstall the right engine splash shield followed by lowering the vehicle.
    Posted by ChevyPartsGiant Specialist
    Q:
    What are the last steps after tightening the engine mount for the 2002 Chevrolet Cavalier? Posted by Customer
    A:
    Remove the Engine Support Fixture (J 28467-360), reinstall the coolant recovery tank, and secure the A/C line mounting nut and the cruise control module mounting nuts.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    How should the engine mount strut be installed for the 2000 Chevrolet Cavalier? Posted by Customer
    A:
    Install the engine mount strut along with the bolts, tightening them to 100 Nm (74 ft. lbs.) plus an additional 90 degrees.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Torque Strut
    Q:
    What is the first step to replace the engine mount for the 2004 Chevrolet Cavalier? Posted by Customer
    A:
    Remove the cruise control module mounting nuts and the A/C low pressure line retaining bracket nut.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the next step after positioning the engine mount assembly for the 2001 Chevrolet Cavalier? Posted by Customer
    A:
    Install the bolts securing the engine mount to the bracket and tighten them to 60 Nm (44 ft. lbs.) plus an additional 90 degrees.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What should be removed after supporting the engine for the 2005 Chevrolet Cavalier? Posted by Customer
    A:
    Remove the engine mount to bracket bolts and the engine mount to body nuts, then take out the engine mount.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
    Q:
    What is the final step after installation for the 2001 Chevrolet Cavalier? Posted by Customer
    A:
    Reinstall the right engine splash shield and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Torque Strut
    Q:
    What is the first step to replace the engine mount strut for the 2002 Chevrolet Cavalier? Posted by Customer
    A:
    Raise and support the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount Torque Strut
    Q:
    What is the torque specification for the bolt when reconnecting the negative battery cable for the 2000 Chevrolet Cavalier? Posted by Customer
    A:
    Ensure the bolt is tightened to 16 Nm (12 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Engine Mount
