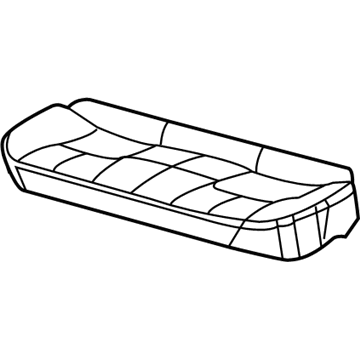

OEM 2003 Cadillac CTS Seat Cushion Pad

2003 Cadillac CTS Parts Questions & Experts Answers

• Q: How to replace the front seat cushion pad on 2003 Cadillac CTS?

  A: The front seat cushion replacement process requires a disabling of sir system through procedures found in zone 7 for the driver seat and zone 9 for the passenger seat. The complete forward positioning of the seat lets you remove the retaining nuts which attach the seat cushion to its seat adjuster assembly. Move the front of the seat cushion upward and take out the power seat switches as you observe how the wiring should be routed to prevent any damage. First disconnect all wiring harness retainers that secure the harness at the bottom foam layer frame of the seat. After disconnecting these hooks, pull forward to extract the seat cushion from its operating assembly. The installation process begins by positioning the seat cushion locators at the back of the frame into the open slots on the seat adjuster. The wiring harness should be placed on the original seat frame position. The power seat switches need installation followed by positioning the front of the seat cushion onto the seat adjuster assembly before fastening its seat cushion nuts down with 10 nm (88 lb in) torque. End the sir system activation at both the driver seat and the passenger seat.
