How to replace the fuel tank module on Buick Enclave?

Question

Accepted Answer

The first step of Fuel Tank module replacement demands safety precautions that start with securing fuel line fittings with shop cloth before utilizing a suitable fuel collection container. Ensure your cleanup of all fuel pipe connections includes cleaning the hose terminals to stop any source of contamination. Begin the work by getting a new Fuel Tank module seal. Begin the replacement process by detaching the Fuel Tank followed by the removal of the fuel pump fuel feed line quick connect fitting along with the evaporative emission (EVAP) canister vent front pipe quick connect fitting present on the Fuel Tank module. First move the fuel lines to an alternative position then disconnect the electrical connectors that come from the Fuel Tank pressure sensor and Fuel Tank module. The Fuel Tank module lock ring installation requires a j 45722 tool which should be fitted without striking tools to hold the Fuel Tank steady while preventing rotation. The lock ring should be rotated counterclockwise to unlock before it can be unbolted. Lift the module with caution to view the fuel level sensor float arm as you tilt its position to avoid object interference while removing it from the tank opening. Drain the fuel from the module reservoir bucket into a proper container before taking out the Fuel Tank module seal. The procedure requires separation of the fuel level sensor. Check for any damage on the lock ring. Replace this component if its warpage reaches or surpasses 0.41 mm which equals 0.016 in. Install the fuel level sensor if needed before putting on a fresh Fuel Tank module seal to the Fuel Tank. Position the module at an angle to clear float arm obstruction while you insert it into the tank structure. Finally, install and positiontable the locking ring. Connect the fuel sender wiring harness electrical connectors to their respective modules following a clockwise lock of the ring using j 45722. Install the Fuel Tank module by reattaching the evap canister vent along with the front pipe as well as the fuel pump feed line quick connect fittings.

OEM Buick Enclave Fuel Tank

6 Fuel Tanks found

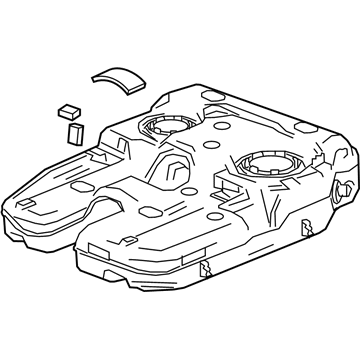

Buick Enclave Fuel Tank

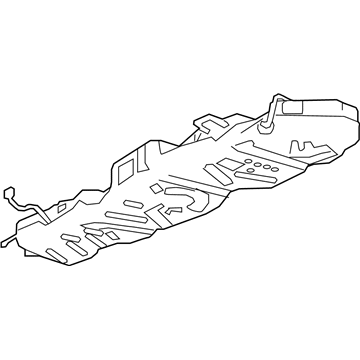

Buick Enclave Fuel Tank

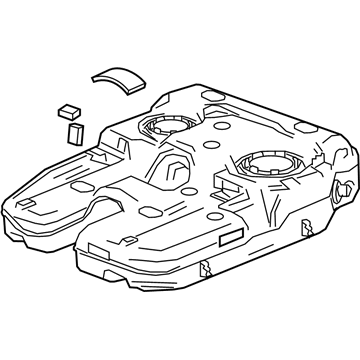

Buick Enclave Fuel Tank

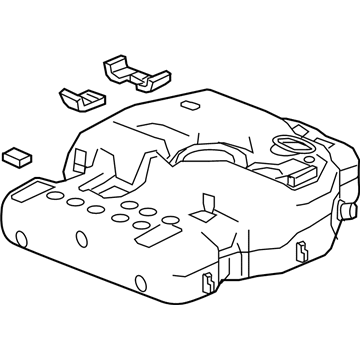

Buick Enclave Fuel Tank

Buick Enclave Fuel Tank

Buick Enclave Fuel Tank

Buick Enclave Fuel Tank

Buick Enclave Fuel Tank Parts Questions & Experts Answers

Related Buick Enclave Parts

Browse Buick Enclave Fuel Tank by Years
