How to Replace a CV Boot and CV Joint on Buick LaCrosse?

A technician needs three specific tools to repair the constant velocity joint boot: j 41048 drive axle swage ring clamp, j 8059 snap ring pliers and j 35910 drive axle seal clamp pliers. For constant velocity joint boot service and repair technicians need j 41048 drive axle swage ring clamp (J 41048) along with j 8059 snap ring pliers (J 8059) and j 35910 drive axle seal clamp pliers (J 35910). Cut the large retaining seal clamp from the cv joint with a side cutter before discarding it while maintaining care not to damage the wheel drive shaft inboard boot. A hand grinder will help you cut through the swage ring before you can detach the halfshaft outboard seal from the cv joint outer race. Move the seal off from the cv joint and clean away the grease from the cv joint's inner race facing. Use the j 8059 to expand the race retaining ring's ears before extracting the cv joint assembly off the halfshaft bar. Use a brass drift to lightly strike and swivel the cv joint cage so you can extract the chrome alloy balls before disposal. A thorough cleaning process with solvent removes contaminants from inner and outer race assemblies and.cv joint cage and chrome alloy balls. After drying all components, inspect for any signs of unusual wear, cracks, or damage which requires replacement of broken parts. Clean the halfshaft bar using a wire brush until all rust presence is eliminated from the seal mounting area. Begin by mounting the halfshaft into a vise before installing the new swage ring or eared clamp onto the outboard seal's neck and sliding the outboard seal onto the halfshaft bar. Installation of swage rings starts with placing the halfshaft's outboard end inside j 41048 before bolting the ring into proper alignment. Use the j 35910 to crimp the eared clamp to 136 n.m (100 lb ft) while performing gap dimension verification. Using grease lightly coat the ball grooves on both inner and outer races then fit the inner race into its cage and line it up to the outer race. Place chrome balls into position then drain grease into the cv joint space until reaching the retaining ring location at the bottom of the halfshaft bar. Apply the large seal retaining clamp to the outboard cv joint outer race using the j 35910 tool then tighten the clamp to 174 n.m (130 lb ft) while maintaining the specified gap requirement.

OEM Buick LaCrosse CV Boot

Axle Boot

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 CV Boots found

View related parts

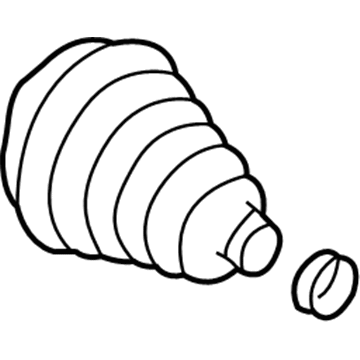

Buick LaCrosse Outer Boot, Front
Part Number: 22833444
$42.46 MSRP: $72.27
You Save: $29.81 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Boot Kit, Rear Axle Universal Joint
- Position: Front
- Replaces: 13291734
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Buick LaCrosse | Base, Convenience, CX, CXL, CXS, Leather, Premium, Sport Touring, Touring | 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Inner Boot, Rear
Part Number: 20894127
$40.54 MSRP: $66.80
You Save: $26.26 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2016 Buick LaCrosse | Base, Convenience, CX, CXL, CXS, Leather, Premium, Sport Touring, Touring | 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Boots, Front
Part Number: 15269555
$54.07 MSRP: $88.51
You Save: $34.44 (39%)
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick LaCrosse Outer CV Joint Boot, Front
Part Number: 19178957
$90.46 MSRP: $155.36
You Save: $64.90 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Boot Kit, Front Axle; CV Boot; Outer Boot; Inner Boot Kit; Boots; Boot Kit, Front Wheel Drive Axle Shaft
- Position: Front
- Replaces: 19150654, 15855656
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Buick LaCrosse | Super | 8 Cyl 5.3 L GAS
View related parts
Buick LaCrosse Outer CV Joint Boot, Front
Part Number: 13318003
$19.75 MSRP: $30.94
You Save: $11.19 (37%)
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Outer Boot; Boots
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Buick LaCrosse | Base, Convenience, CX, CXL, CXS, Leather, Premium, Sport Touring, Touring | 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Boot Kit, Front
Part Number: 26073372
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Inner Boot; Inner Boot Kit; Boots
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Buick LaCrosse | CXS | 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Boot Kit, Front
Part Number: 26044383
Product Specifications
- Other Name: Boot Kit, Front Axle; CV Boot; Outer CV Joint Boot; Outer Boot; Outer Boot Kit; Boots; Boot Kit, Front Wheel Drive Axle Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Buick LaCrosse | CXS | 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Seal Kit
Part Number: 26044380
Product Specifications
- Other Name: Boot, Front; Axle Seal; CV Boot; Boot Kit; Outer CV Joint Boot; Inner Boot; Outer Boot; Outer Boot Kit; Boots; Boot
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick LaCrosse Inner CV Joint Boot, Front
Part Number: 39196364
$21.96 MSRP: $34.40
You Save: $12.44 (37%)
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Inner Boot; Boots
- Position: Front
- Replaces: 13333928
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Buick LaCrosse | Base, Convenience, CX, CXL, CXS, Leather, Premium, Sport Touring, Touring | 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts
Buick LaCrosse Outer CV Joint
Part Number: 88965619
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Joint; CV Boot; Inner Boot; Outer Boot Kit; Boots
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Buick LaCrosse | Super | 8 Cyl 5.3 L GAS
View related parts
Buick LaCrosse Outer CV Joint Boot, Front
Part Number: 19177868
Product Specifications
- Other Name: Boot Kit, Front Wheel Drive Axle Shaft; CV Boot; Inner CV Joint Boot; Inner Boot; Inner Boot Kit; Boots
- Position: Front
- Replaces: 26073374
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Buick LaCrosse | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick LaCrosse Inner Boot, Rear
Part Number: 13311878
Product Specifications
- Other Name: Boot Kit, Rear Axle Universal Joint; CV Boot
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2013 Buick LaCrosse | Base, Convenience, CX, CXL, CXS, Leather, Premium, Touring | 4 Cyl 2.4 L GAS, 4 Cyl 2.4 L MILD HYBRID EV-GAS (MHEV), 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS

Buick LaCrosse CV Boot

Our website offers an extensive catalog of genuine Buick LaCrosse CV Boot at unbeatable prices. Every OEM Buick LaCrosse CV Boot comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Buick LaCrosse CV Boot Parts Questions & Experts Answers

Outer CV Joint Boot, Front
19178957
Q: How to Replace a CV Boot and CV Joint on Buick LaCrosse?
A: A technician needs three specific tools to repair the constant velocity joint boot: j 41048 drive axle swage ring clamp, j 8059 snap ring pliers and j 35910 drive axle seal clamp pliers. For constant velocity joint boot service and repair technicians need j 41048 drive axle swage ring clamp (J 41048) along with j 8059 snap ring pliers (J 8059) and j 35910 drive axle seal clamp pliers (J 35910). Cut the large retaining seal clamp from the cv joint with a side cutter before discarding it while maintaining care not to damage the wheel drive shaft inboard boot. A hand grinder will help you cut through the swage ring before you can detach the halfshaft outboard seal from the cv joint outer race. Move the seal off from the cv joint and clean away the grease from the cv joint's inner race facing. Use the j 8059 to expand the race retaining ring's ears before extracting the cv joint assembly off the halfshaft bar. Use a brass drift to lightly strike and swivel the cv joint cage so you can extract the chrome alloy balls before disposal. A thorough cleaning process with solvent removes contaminants from inner and outer race assemblies and.cv joint cage and chrome alloy balls. After drying all components, inspect for any signs of unusual wear, cracks, or damage which requires replacement of broken parts. Clean the halfshaft bar using a wire brush until all rust presence is eliminated from the seal mounting area. Begin by mounting the halfshaft into a vise before installing the new swage ring or eared clamp onto the outboard seal's neck and sliding the outboard seal onto the halfshaft bar. Installation of swage rings starts with placing the halfshaft's outboard end inside j 41048 before bolting the ring into proper alignment. Use the j 35910 to crimp the eared clamp to 136 n.m (100 lb ft) while performing gap dimension verification. Using grease lightly coat the ball grooves on both inner and outer races then fit the inner race into its cage and line it up to the outer race. Place chrome balls into position then drain grease into the cv joint space until reaching the retaining ring location at the bottom of the halfshaft bar. Apply the large seal retaining clamp to the outboard cv joint outer race using the j 35910 tool then tighten the clamp to 174 n.m (130 lb ft) while maintaining the specified gap requirement.
