How to balance the engine mount, motor and transmission mount on Buick Lucerne?

Start the engine mount balance process by taking out the strut bolt and putting on the Engine Support Fixture. Users need to lift and support the vehicle through Lifting and Jacking the Vehicle maneuvers. The front engine mount lower nut and the rear engine mount lower nut along with the transmission mount to frame nuts should be left loose but not fully removed. The vehicle should be lowered to check that every mount shows no load. The engine support fixture helps users to elevate the powertrain mounts above the cradle before powertrain reset and engine support fixture removal. Raising the vehicle allows for installing the rear engine mount to cradle nut where torques must reach 80 N.m (59 lb ft). Place the rear transmission mount between cradle nuts then torque them to 50 N.m (37 lb ft). After that install and torque the front engine mount nut to 80 N.m (59 lb ft). Lower the vehicle while checking that the torque strut generates no preforce when the transaxle selector sits in Park position on flat ground. When installing the torque strut bolt users must apply no side torque to the engine side bracket before thread insertion; preloaded torque struts need the rear body side bracket nut to be loosened first for strut readjustment. You should install the torque strut bolt after tightening both components to 70 N.m (52 lb ft).

OEM Buick Lucerne Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Motor And Transmission Mounts found

View related parts

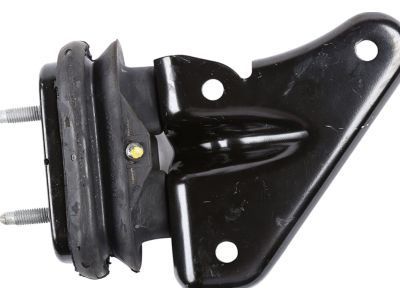

Buick Lucerne Front Mount Part Number: 20877778
$141.90 MSRP: $194.28
You Save: $52.38 (27%)
ADD TO CART
Product Specifications
- Other Name: Mount-Engine Front; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mount Dampening
- Position: Front
- Replaces: 15893011, 20760912
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne Front Mount Part Number: 15910501
$124.00 MSRP: $169.75
You Save: $45.75 (27%)
ADD TO CART
Product Specifications
- Other Name: Mount-Engine Front; Engine Mount Bracket; Motor Mount; Mount, Engine Mount Dampening
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick Lucerne Front Mount Bracket Part Number: 25829748
$24.14 MSRP: $37.83
You Save: $13.69 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne Front Mount Part Number: 25829735
$86.26 MSRP: $135.13
You Save: $48.87 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount-Engine Front; Engine Mount Bracket; Motor Mount
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne Front Mount Bracket Part Number: 25886948
Product Specifications
- Other Name: Bracket-Engine Front Mount; Bracket, Engine Mounting
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne Rear Mount Part Number: 20877776
Product Specifications
- Other Name: Mount, Engine Mount Dampening; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mounting
- Position: Rear
- Replaces: 20760906, 25963967
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne Transmission Mount Part Number: 20760908
Product Specifications
- Other Name: Mount, Transmission Mounting; Transfer Case Mount
- Replaces: 15294487
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Buick Lucerne | CX, CXL, CXL Special Edition | 6 Cyl 3.8 L GAS, 6 Cyl 3.9 L FLEX, 6 Cyl 3.9 L GAS
View related parts
Buick Lucerne Rear Mount Part Number: 20760907
Product Specifications
- Other Name: Mount, Engine Mount Dampening; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mounting
- Position: Rear
- Replaces: 15817836
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne Rear Mount Part Number: 15863998
Product Specifications
- Other Name: Mount, Engine Mount Dampening; Engine Mount Bracket; Motor Mount; Mount, Engine Mounting
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick Lucerne Front Mount Bracket Part Number: 15780838
Product Specifications
- Other Name: Bracket, Engine Mounting
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 Buick Lucerne | CX, CXL | 6 Cyl 3.8 L GAS
View related parts
Buick Lucerne Transmission Mount Part Number: 20760909
$95.83 MSRP: $150.09
You Save: $54.26 (37%)
Product Specifications
- Other Name: Mount, Transmission Mounting; Transfer Case Mount
- Replaces: 25886567, 15294486
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Buick Lucerne | CXL, CXS, Super | 8 Cyl 4.6 L GAS
View related parts
Buick Lucerne Front Mount Part Number: 20760905
$138.73 MSRP: $218.28
You Save: $79.55 (37%)
Product Specifications
- Other Name: Mount, Engine Mount Dampening; Engine Mount Bracket; Motor Mount; Mount; Mount, Engine Mounting
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2011 Buick Lucerne | Super | 8 Cyl 4.6 L GAS

Buick Lucerne Motor And Transmission Mount

Want to cut long-term maintenance and repair costs? Choose OEM Motor And Transmission Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Buick Lucerne parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Buick Lucerne Motor And Transmission Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Buick Lucerne Motor And Transmission Mount is an essential part that defines the Buick Lucerne which is a full-size luxury sedan that was manufactured between the years 2005 to 2011. Known as the Motor And Transmission Mount, this is responsible for anchoring the transmission system while at the same time address intellectual vibrations produced by the engine making the Buick Lucerne to be easily controllable to smooth performance by its owners. Since it is compatible with multiple models of Lucerne, this Motor And Transmission Mount coordinates with the vehicle's transmission, promoting its overall cycles effectiveness and stability while pushing the durability to higher levels. It also seats the Buick Lucerne's potent 3.8 L V-6 and 4.6 L V-8 engines and the Motor And Transmission Mount helps in supporting the power of these engines. Also, Buick Lucerne has other technologies such as the Magnetic Ride Control that when accompanied by a good Motor And Transmission Mount come in handy in enhancing the control of the automobile together with enhancing tire contact. Motor And Transmission Mount is intended to satisfy the requirements of Buick as automobile manufacturing company, and become a signature in car manufacturing industry. Being known to be reliable, the Buick Lucerne Motor And Transmission Mount raises the performance of the car while strengthening the safety aspects of the Lucerne thus becoming the model that most rational and quality-conscious is inclined towards when in the market for a luxury car that is reliable for use in the roads of this country.

Buick Lucerne Motor And Transmission Mount Parts Questions & Experts Answers

Front Mount
15910501
Q: How to balance the engine mount, motor and transmission mount on Buick Lucerne?
A:
Start the engine mount balance process by taking out the strut bolt and putting on the Engine Support Fixture. Users need to lift and support the vehicle through Lifting and Jacking the Vehicle maneuvers. The front engine mount lower nut and the rear engine mount lower nut along with the transmission mount to frame nuts should be left loose but not fully removed. The vehicle should be lowered to check that every mount shows no load. The engine support fixture helps users to elevate the powertrain mounts above the cradle before powertrain reset and engine support fixture removal. Raising the vehicle allows for installing the rear engine mount to cradle nut where torques must reach 80 N.m (59 lb ft). Place the rear transmission mount between cradle nuts then torque them to 50 N.m (37 lb ft). After that install and torque the front engine mount nut to 80 N.m (59 lb ft). Lower the vehicle while checking that the torque strut generates no preforce when the transaxle selector sits in Park position on flat ground. When installing the torque strut bolt users must apply no side torque to the engine side bracket before thread insertion; preloaded torque struts need the rear body side bracket nut to be loosened first for strut readjustment. You should install the torque strut bolt after tightening both components to 70 N.m (52 lb ft).
