OEM Cadillac Alternator Bracket
Alternator Mount- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
23 Alternator Brackets found

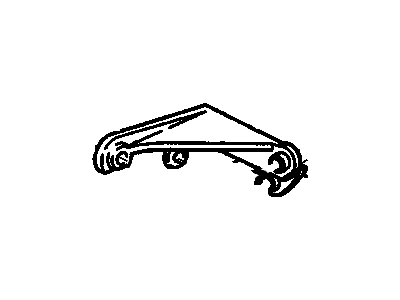

Cadillac Mount Bracket
Part Number: 12643475$48.63 MSRP: $77.22You Save: $28.59 (38%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket, Engine Cooling; Alternator Bracket; Bracket, Generator Mounting

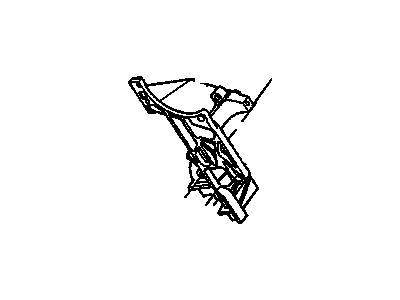

Cadillac Mount Bracket
Part Number: 12554030$90.24 MSRP: $152.55You Save: $62.31 (41%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket, Generator Mounting; Alternator Bracket; Bracket; Bracket, Power Brake Booster

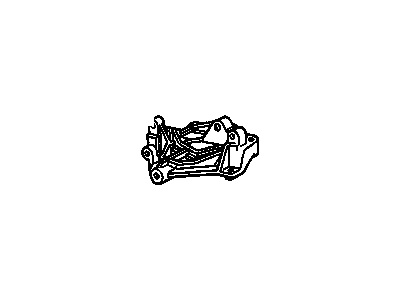

Cadillac Idler Pulley
Part Number: 10236997$85.06 MSRP: $143.78You Save: $58.72 (41%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Bracket, Engine Cooling; Alternator Bracket; Mount Bracket; Tensioner Bracket; Accessory Bracket; Generator Mounting Support.
Cadillac Bracket
Part Number: 12685911$80.38 MSRP: $143.54You Save: $63.16 (44%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket, Engine Cooling; Bracket, Generator Mounting
Cadillac Mount Bracket
Part Number: 12700972$37.03 MSRP: $64.46You Save: $27.43 (43%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket, Engine Cooling; Alternator Bracket; Bracket; Bracket, Generator Mounting
- Replaces: 12668983, 12691250
Cadillac Mount Bracket
Part Number: 12692949$56.63 MSRP: $88.71You Save: $32.08 (37%)Ships in 1-3 Business DaysProduct Specifications- Other Name: Bracket, Generator & Drive Belt Tensioner; Bracket, Generator Mounting; Bracket, Engine Cooling
- Replaces: 12597648
Cadillac Mount Bracket
Part Number: 12626078$47.15 MSRP: $81.94You Save: $34.79 (43%)Ships in 1-2 Business DaysProduct Specifications- Other Name: Bracket, Engine Cooling; Alternator Bracket; Compressor Assembly Bracket; Bracket, Generator Mounting
Product Specifications- Other Name: Bracket, Generator Mounting; Alternator Mount Bracket
- Product Specifications
- Other Name: Bracket, Generator Mounting; Alternator Mount Bracket
Product Specifications- Other Name: Bracket, Generator Mounting; Mount Bracket; Alternator, Compressor, and Steering Pump Mounting Brackets; Adjust Bracket.
Product Specifications- Other Name: Bracket, Generator Mounting
Product Specifications- Other Name: Bracket, Engine Cooling; Mount Bracket; Alternator Front Bracket; Bracket, Generator Mounting
- Position: Passenger Side
Product Specifications- Other Name: Bracket; Adjust Bracket; Bracket, Steering Pump Mounting; Bracket, Generator Mounting
Product Specifications- Other Name: Brace, Generator Mounting
- Position: Rear
Product Specifications- Other Name: Bracket-A/C Compressor Adjust Front & Generator Front; Mount Bracket; Alternator and Compressor Mount Bracket; A/C Compressor and Generator Mounting.
- Position: Front
Product Specifications- Other Name: Bracket Assembly-Generator Rear; Alternator Mount Bracket; Alternator Rear Bracket; Bracket, Generator Mounting
- Position: Rear
Product Specifications- Other Name: Support, Generator; Alternator Bracket; Alternator Bracket Assembly; Support, Generator Mounting
Product Specifications- Other Name: Brace; Rear Brace; Brace, Generator Mounting
Product Specifications- Other Name: Brace-Generator; Rear Brace; Alternator Rear Brace; Brace, Generator Mounting
- Position: Rear Outer
Product Specifications- Other Name: Brace; Brace, Generator Mounting
| Page 1 of 2 |Next >
1-20 of 23 Results
Cadillac Alternator Bracket Parts Questions & Experts Answers
- Q: How to replace the Alternator Bracket (LY7) on Cadillac STS?A: Turn off the ignition then remove the generator to access the generator bracket (LY7). Begin by removing the generator bracket bolts first then the belt tensioner and coolant inlet pipe lower bolt from the generator bracket to take out the generator bracket. To begin installation start by adding the generator bracket then carefully follow the fastener notice protocol. Fasten generator bracket bolts following the precise tightening schedule: first tighten bolts (1, 2) to 50 n.m (37 lb ft) then bolt to 23 n.m (17 lb ft). The installation includes tightening bolt (1, 2) to 50 n.m (37 lb ft) and bolt to 23 n.m (17 lb ft). In the final stage install the belt tensioner then follow with the coolant inlet pipe lower bolt from the generator bracket before completing with the generator.
- Q: How to replace the alternator bracket on the LY7 engine (VIN 7 W/O Direct Fuel Injection) on Cadillac CTS?A: For the ly7 engine (VIN 7 W/O Direct Fuel Injection), we have to swap the generator bracket first by turning the ignition off and taking out the generator. Next, remove the coolant inlet pipe lower bolt from the generator bracket and remove the belt tensioner. Then, you need to remove the generator bracket bolts and the generator bracket. Details on installation are beginning with the installation of the generator bracket and attaching it but make sure to follow the fastener notice. Mount the generator bracket bolts, tightening them in the order: tighten bolts (1, 2) using a wrench to a torque of 50 n.m (37 lb ft) and bolt to a torque of 23 n.m (17 lb ft). Then, fit the belt tensioner and fit the generator bracket coolant inlet pipe lower bolt and finally fit back the generator.
- Q: How to replace the alternator bracket on Cadillac SRX?A: The first step to replace the generator bracket involves shutting down the ignition system then taking out the generator. You should start by removing the generator bracket coolant inlet pipe lower bolt followed by the belt tensioner and generator bracket bolts respectively. Extract the generator bracket after removing the mentioned components. Install the generator bracket in its proper position then fasten it with generator bracket bolts where you should tighten the bolts (1, 2) to 50 n.m (37 lb ft) while bolt should reach 23 n.m (17 lb ft) after following the depicted tightening sequence. The installation process requires users to first reconnect the belt tensioner before adding the coolant inlet pipe lower bolt attached to the generator bracket and finally adding the generator unit.
