How to replace the Automatic Transmission Oil Cooler Line on an AWD on Cadillac SRX?

The replacement process for awd automatic transmission oil cooler lines requires starting with engine Oil Filter removal. You must remove the left hand (LH) intermediate shaft bearing assembly during this step. Disconnect the automatic transmission oil cooler lines from the Radiator through the transmission cooler quick connect (J 44827) after which the toc line to transmission retaining bolt and the rear toc lines should be removed from the transmission. The installation process starts by throwing away the o-rings and subsequently removing the toc retainer bracket bolt. Drill through the retainer bracket rivets after repositioning the toc lines for clearing out the retainer bracket and toc lines from their placements. To install this system begin with toc lines followed by the addition of the retainer bracket then rivet the bracket onto the toc lines. Fasten the new toc retainer bracket bolt to 25 n.m (18 lb ft) torque specification. Install new o-rings at the rear part of the toc lines before connecting them to the transmission hardware. Insert and tighten the toc line to transmission retaining bolt to 25 n.m (18 lb ft). Last, insert the toc lines into the Radiator while reinstalling the lh intermediate shaft bearing assembly together with the engine Oil Filter.

OEM Cadillac SRX Automatic Transmission Oil Cooler Line

AT Oil Cooler Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Automatic Transmission Oil Cooler Lines found

View related parts

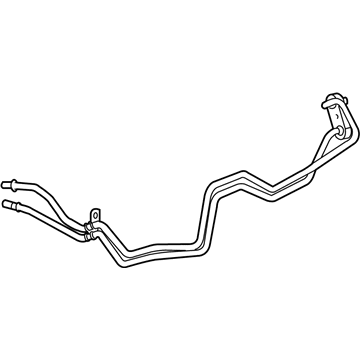

Cadillac SRX Lower Hose Part Number: 19129781
Product Specifications
- Other Name: Hose, Transmission Oil Cooler
- Position: Lower
- Replaces: 89022495
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009, 2004-2006 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

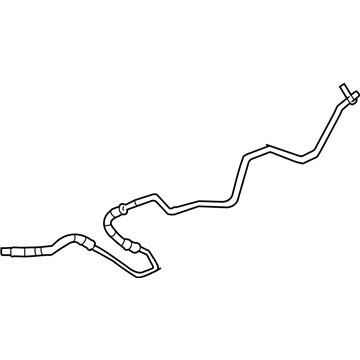

Cadillac SRX Upper Hose Part Number: 19129780
Product Specifications
- Other Name: Hose, Transmission Fluid Cooler Upper; Transmission Oil Cooler Hose; Hose, Transmission Oil Cooler
- Position: Upper
- Replaces: 89022498
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts

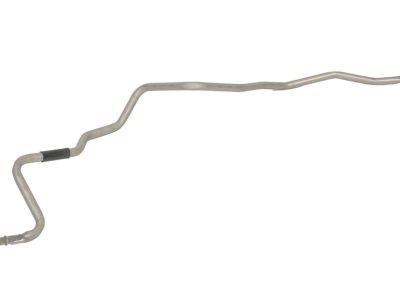

Cadillac SRX Lower Hose Part Number: 19129779
Product Specifications
- Other Name: Hose, Transmission Oil Cooler
- Position: Lower
- Replaces: 89022497
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2006 Cadillac SRX | Base | 8 Cyl 4.6 L GAS
View related parts

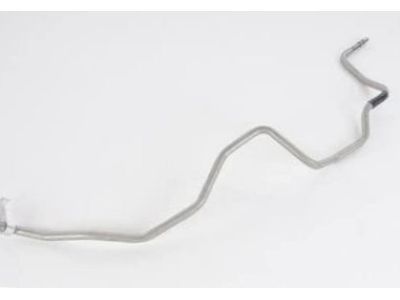

Cadillac SRX Upper Hose, Lower Part Number: 19331388
Product Specifications
- Other Name: Hose, Transmission Fluid Cooler Lower (W/Block); Transmission Oil Cooler Hose; Hose, Transmission Oil Cooler
- Position: Lower
- Replaces: 19130570
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

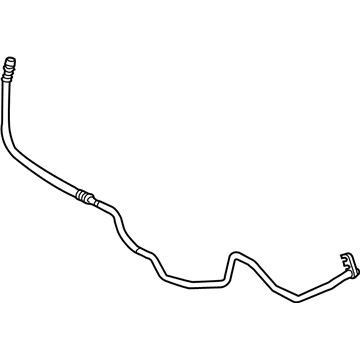

Cadillac SRX Lower Hose Part Number: 19331383
Product Specifications
- Other Name: Hose, Transmission Oil Cooler
- Position: Lower
- Replaces: 19129976
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2008 Cadillac SRX | Base | 6 Cyl 3.6 L GAS
View related parts

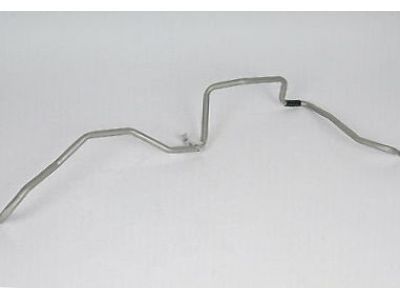

Cadillac SRX Tube Assembly Part Number: 15882260
Product Specifications
- Other Name: Pipe, Transmission Oil Cooler; Transmission Oil Cooler Hose; Transmission Oil Cooler Line; Upper Hose
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Cadillac SRX | Base | 8 Cyl 4.6 L GAS

Cadillac SRX Automatic Transmission Oil Cooler Line

Want to cut long-term maintenance and repair costs? Choose OEM Automatic Transmission Oil Cooler Line. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Cadillac SRX parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Cadillac SRX Automatic Transmission Oil Cooler Line includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Cadillac SRX Automatic Transmission Oil Cooler Line Parts Questions & Experts Answers

Tube Assembly
15882260
Q: How to replace the Automatic Transmission Oil Cooler Line on an AWD on Cadillac SRX?
A:
The replacement process for awd automatic transmission oil cooler lines requires starting with engine Oil Filter removal. You must remove the left hand (LH) intermediate shaft bearing assembly during this step. Disconnect the automatic transmission oil cooler lines from the Radiator through the transmission cooler quick connect (J 44827) after which the toc line to transmission retaining bolt and the rear toc lines should be removed from the transmission. The installation process starts by throwing away the o-rings and subsequently removing the toc retainer bracket bolt. Drill through the retainer bracket rivets after repositioning the toc lines for clearing out the retainer bracket and toc lines from their placements. To install this system begin with toc lines followed by the addition of the retainer bracket then rivet the bracket onto the toc lines. Fasten the new toc retainer bracket bolt to 25 n.m (18 lb ft) torque specification. Install new o-rings at the rear part of the toc lines before connecting them to the transmission hardware. Insert and tighten the toc line to transmission retaining bolt to 25 n.m (18 lb ft). Last, insert the toc lines into the Radiator while reinstalling the lh intermediate shaft bearing assembly together with the engine Oil Filter.
