GM 15882260

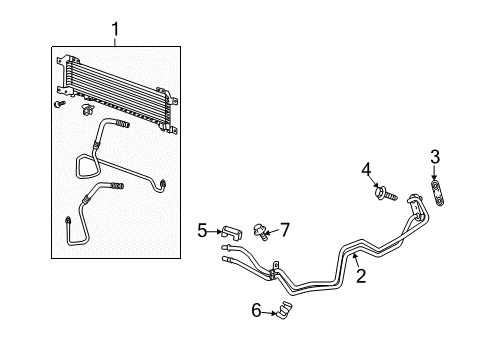

Tube Assembly

The replacement process for awd automatic transmission oil cooler lines requires starting with engine Oil Filter removal. You must remove the left hand (LH) intermediate shaft bearing assembly during this step. Disconnect the automatic transmission oil cooler lines from the Radiator through the transmission cooler quick connect (J 44827) after which the toc line to transmission retaining bolt and the rear toc lines should be removed from the transmission. The installation process starts by throwing away the o-rings and subsequently removing the toc retainer bracket bolt. Drill through the retainer bracket rivets after repositioning the toc lines for clearing out the retainer bracket and toc lines from their placements. To install this system begin with toc lines followed by the addition of the retainer bracket then rivet the bracket onto the toc lines. Fasten the new toc retainer bracket bolt to 25 n.m (18 lb ft) torque specification. Install new o-rings at the rear part of the toc lines before connecting them to the transmission hardware. Insert and tighten the toc line to transmission retaining bolt to 25 n.m (18 lb ft). Last, insert the toc lines into the Radiator while reinstalling the lh intermediate shaft bearing assembly together with the engine Oil Filter.

First, raising and supporting the vehicle, in order to replace the engine Oil Cooler Hose/pipe. Take off the front air deflector replacement and put an oil drain pan on the lower side of the vehicle remove the engine Oil Cooler Hose/pipe from the external oil cooler, and remove the hose/pipe clip from the Fan Shroud, and then from the engine. Take off the external engine Oil Cooler Hose/pipe from the engine and the vehicle, and delinking all hose/pipe seals. For installation start by installing new engine Oil Cooler Hose pass kit and attach the existing engine Oil Cooler Hose or pipe to the vehicle making sure the quick connect fitting on the end of the hose or pipe is attached by pushing it and then sliding it back to ensure correct engagement in place. Then, attach the hose/pipe to the engine and clips to the engine and Fan Shroud, and ensure correct engagement of quick connect fitting. Lastly, attach the engine Oil Cooler Hose/pipes to the external oil cooler, remove the oil drain pan, install the front air deflector replacement, reinstate the engine with oil, and confirm lack of leakage.

Reinstall the LH front splash shield and its retainers, followed by the LH front wheel.

Remove the bolt connecting the TOC line to the cooling fan shroud and the radiator support bracket bolts.

Position the radiator rearward to remove the front TOC lines.

Remove the rear line to transmission retainer bolt and disconnect the rear lines from the transmission.

Install new O-rings to the rear TOC lines, connect them to the transmission, and secure the rear TOC line to transmission retainer bolt, tightening it to 25 N.m (18 lb ft).

Ensure the quick connect fitting is pushed on and pulled back to confirm proper engagement.

Ensure the quick connect fitting is pushed on and pulled back to verify proper engagement.

Start by installing the TOC lines and the retainer bracket.

Tighten to 9 Nm (80 lb in).

Reposition and reinstall the condenser.
