How to replace the engine oil pressure switch on Chevrolet Astro?

To change the sensor or switch of the engine oil pressure, first, turn off the engine cover. Remove the engine oil pressure sensor gauge electrical connector and then use a wrench to hold the engine oil pressure gauge sensor fitting as well. Pull out the engine oil pressure gauge sensor with the Oil Pressure Switch Socket (J41712) with the attention to the position of the fitting before taking it out. Take out sensor fitting for engine oil pressure if required. When installing, if the fitting was removed, make sure to put it back and tighten to 15 Nm (11 ft. lbs), to not loosen or over-tightening it one turn to align. Install the Engine Oil Pressure Gauge Sensor, while gripping the fitting with the wrench to avoid any rotations, and tighten the sensor using the Oil Pressure Switch Socket (J41712) to the tightness of 30 Nm (22 ft. lbs.). Lastly, reconnect the engine oil pressure gauge sensor electrical connector and put back on the engine cover.

How to service and repair the Oil Pressure Switch on Chevrolet Astro?

The oil pressure switch repair process requires tool J 41712 (Oil Pressure Switch Socket) according to the maintenance procedure. Start the service by removing engine cover followed by disconnecting the engine oil pressure switch electrical connector. The engine oil pressure switch fitting requires holding with a wrench so you can safely remove the switch with tool J 41712. Check the orientation of the switch fitting before removing it then take the fitting off if needed. During installation, reconnect any removed engine oil pressure switch fittings and apply torque to 15 Nm (11 ft. lbs.) while keeping total turn count under two to achieve proper alignment. After installing the engine oil pressure switch maintain fitting stability by using a wrench to stop rotation before using J 41712 to achieve a torque value of 30 Nm (22 ft. lbs.). Reinstall both the engine cover and reconnect the engine oil pressure switch electrical connector.

OEM Chevrolet Astro Oil Pressure Switch

Oil Pressure Sender Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Oil Pressure Switches found

View related parts

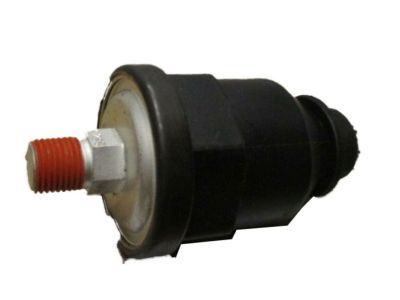

Chevrolet Astro Oil Pressure Sensor Part Number: 19244501
$56.57 MSRP: $96.32
You Save: $39.75 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch, Fuel Pump & Engine Oil Pressure Indicator; Oil Pressure Switch; Oil Pressure Sending Unit; Engine Oil Pressure/Temperature Sensor; Fuel Pump Pressure Switch
- Replaces: 10243574, 12555492
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1995 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts

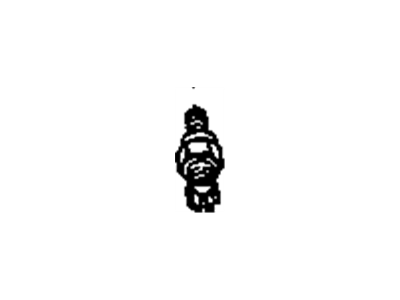

Chevrolet Astro Oil Pressure Sending Unit Part Number: 12562571
$63.47 MSRP: $109.00
You Save: $45.53 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Pump Pressure; Oil Pressure Switch; Sensor, Engine Oil Pressure/Temperature
- Replaces: 12562266, 10240133
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2005 Chevrolet Astro | Base, LS, LT | 6 Cyl 4.3 L GAS
View related parts

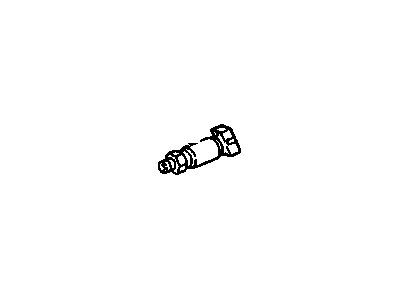

Chevrolet Astro Oil Pressure Sending Unit Part Number: 19244935
$44.68 MSRP: $139.40
You Save: $94.72 (68%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Engine Oil Pressure/Temperature; Oil Pressure Switch; Sender Kit, Engine Oil Pressure/Temperature; Sender, Engine Oil Pressure/Temperature
- Replaces: 15591103
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1986 Chevrolet Astro | Base, CL, CS | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Oil Pressure Sending Unit Part Number: 14103168
$23.68 MSRP: $54.22
You Save: $30.54 (57%)
ADD TO CART
Product Specifications
- Other Name: Sensor, Engine Oil Pressure/Temperature; Oil Pressure Switch
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1988 Chevrolet Astro | Base, CL, CS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Oil Pressure Sensor Part Number: 19244500
$74.20 MSRP: $126.34
You Save: $52.14 (42%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor, Fuel Pump Pressure; Oil Pressure Switch; Pressure Sensor; Oil Pressure Sending Unit; Sensor, Engine Oil Pressure/Temperature
- Replaces: 12553175, 12555534
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-2000 Chevrolet Astro | Base, LS, LT | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Oil Pressure Sending Unit Part Number: 10045775
Product Specifications
- Other Name: Sensor, Engine Oil Pressure/Temperature; Oil Pressure Switch; Switch, Engine Oil Pressure/Temperature; Sensor, Fuel Pump Pressure
- Replaced by: 19244934
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1988 Chevrolet Astro | Base, CL, CS | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Astro Oil Pressure Switch Part Number: 25036553
Product Specifications
- Other Name: Switch Assembly, Fuel Pump & Engine Oil Pressure Indicator; Oil Pressure Sensor; Oil Pressure Sending Unit; Engine Oil Pressure/Temperature Switch; Fuel Pump Pressure Switch.
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1986 Chevrolet Astro | Base, CL, CS | 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Oil Pressure Switch Part Number: 19244517
Product Specifications
- Other Name: Switch Assembly, Fuel Pump & Engine Oil Pressure Indicator; Oil Pressure Sensor; Oil Pressure Sending Unit; Switch; Switch, Engine Oil Pressure/Temperature; Switch, Fuel Pump Pressure
- Replaces: 25037044, 25037205
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1991 Chevrolet Astro | Base, CL, CS, LT | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
Chevrolet Astro Oil Pressure Switch Part Number: 25036378
Product Specifications
- Other Name: Switch; Oil Pressure Sensor; Oil Pressure Sending Unit; Engine Oil Pressure/Temperature Switch Kit; Fuel Pump Pressure
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1988 Chevrolet Astro | Base, CL, CS | 4 Cyl 2.5 L GAS
View related parts
Chevrolet Astro Oil Pressure Sending Unit Part Number: 14103171
Product Specifications
- Other Name: Switch Assembly-Engine Oil Pressure Indicator; Oil Pressure Switch; Switch, Engine Oil Pressure/Temperature
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1988 Chevrolet Astro | Base, CL, CS, LT | 6 Cyl 4.3 L GAS

Chevrolet Astro Oil Pressure Switch

Want to cut long-term maintenance and repair costs? Choose OEM Oil Pressure Switch. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Astro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Astro Oil Pressure Switch includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The Chevrolet Astro Oil Pressure Switch is an important part that justifies the dependability and power of Chevrolet's Astro van. Functioning to measure the oil pressure, this Oil Pressure Switch signals the driver as soon as the pressure is outside the acceptable parameters necessary for the proper functioning and profitability of the engine. Its compatibility covers all the models of Chevrolet Astro manufactured between 1985 and 2005 so that every car can have this important option. The Oil Pressure Switch is also heavily involved in the continued functionality and overall health of the internal moving parts of the engine, which is somewhat of a priority when considering the health of the vehicle. High and low oil pressure situation can be monitored with the help of Chevrolet Astro Oil Pressure Switch, which makes the switch well-known in automotive market, highly precise and dependable. Apart from protecting the engine from possible damaging by these force trances, this feature is a long lasting aspect of the car, thus makes astro to be a car of preference. In addition, the Chevrolet Astro has versatility as a solid bonus to this line of cars and the efficiency guarantee of the Oil Pressure Switch for both comfortable transportation and for cargo shipping. The Oil Pressure Switch is another living testimony to Chevrolet's passion for quality engineering that has accompanied Astrolites to many fruitful journeys and continues to do so. All in all, the Chevrolet Astro Oil Pressure Switch can be seen as a perfect embodiment of the brand's focus on performance and durability and thus can be seen a major advantage in the context of automotive industry.

Chevrolet Astro Oil Pressure Switch Parts and Q&A

Oil Pressure Sending Unit
12562571
Q: How to replace the engine oil pressure switch on Chevrolet Astro?
A:
To change the sensor or switch of the engine oil pressure, first, turn off the engine cover. Remove the engine oil pressure sensor gauge electrical connector and then use a wrench to hold the engine oil pressure gauge sensor fitting as well. Pull out the engine oil pressure gauge sensor with the Oil Pressure Switch Socket (J41712) with the attention to the position of the fitting before taking it out. Take out sensor fitting for engine oil pressure if required. When installing, if the fitting was removed, make sure to put it back and tighten to 15 Nm (11 ft. lbs), to not loosen or over-tightening it one turn to align. Install the Engine Oil Pressure Gauge Sensor, while gripping the fitting with the wrench to avoid any rotations, and tighten the sensor using the Oil Pressure Switch Socket (J41712) to the tightness of 30 Nm (22 ft. lbs.). Lastly, reconnect the engine oil pressure gauge sensor electrical connector and put back on the engine cover.
Oil Pressure Sensor
19244500
Q: How to service and repair the Oil Pressure Switch on Chevrolet Astro?
A:
The oil pressure switch repair process requires tool J 41712 (Oil Pressure Switch Socket) according to the maintenance procedure. Start the service by removing engine cover followed by disconnecting the engine oil pressure switch electrical connector. The engine oil pressure switch fitting requires holding with a wrench so you can safely remove the switch with tool J 41712. Check the orientation of the switch fitting before removing it then take the fitting off if needed. During installation, reconnect any removed engine oil pressure switch fittings and apply torque to 15 Nm (11 ft. lbs.) while keeping total turn count under two to achieve proper alignment. After installing the engine oil pressure switch maintain fitting stability by using a wrench to stop rotation before using J 41712 to achieve a torque value of 30 Nm (22 ft. lbs.). Reinstall both the engine cover and reconnect the engine oil pressure switch electrical connector.
