How to replace the Engine Coolant Thermostat Housing (LNJ) (3.4L) on Chevrolet Equinox?

You must remove the fuel injector sight shield before starting the engine coolant Thermostat housing (LNJ) (3.4L) replacement task. Pull the coolant until it sits beneath the Thermostat position. The next step requires deletion of both crossover Exhaust Pipe and Radiator Hose present at the Thermostat housing. After removing the Thermostat housing bolts begin cleaning off any sealer from the bolt threads before separating the Thermostat housing and the Thermostat. Mount the heating control component first then put on the Thermostat housing after cleaning all mating areas properly. Use rtv sealer type gm p/n 12378478 (or Canadian P/N 88900041 equivalent) on the bolt threads of the Thermostat housing. Screw in the Thermostat housing bolts until they reach 25 nm of torque (18 lb ft). After reattaching the Radiator Hose to the Thermostat housing install the crossover Exhaust Pipe. To complete the task reinstall the fuel injector sight shield while you fill the cooling system and conduct leak detection followed by any needed repair work.

OEM Chevrolet Equinox Thermostat Housing

Engine Coolant Thermostat Housing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Thermostat Housings found

View related parts

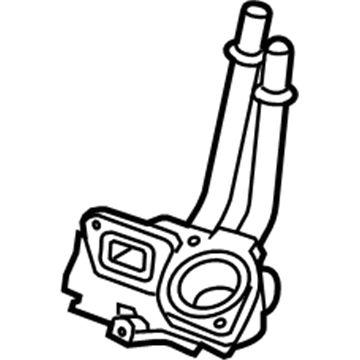

Chevrolet Equinox Thermostat Housing Part Number: 12689039
$74.81 MSRP: $153.74
You Save: $78.93 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing, Engine Coolant Temperature; Thermostat Housing Cover; Housing, Engine Coolant Thermostat
- Replaces: 12651113
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2017 Chevrolet Equinox | LT, LTZ, Premier, Sport | 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

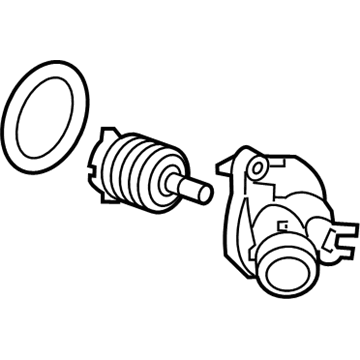

Chevrolet Equinox Thermostat Housing Part Number: 12673413
$103.58 MSRP: $212.84
You Save: $109.26 (52%)
ADD TO CART
Product Specifications
- Other Name: Housing, Engine Coolant Temperature; Thermostat Housing Cover; Water Inlet; Thermostat Unit; Housing, Engine Coolant Thermostat
- Replaced by: 25205818
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2024 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts

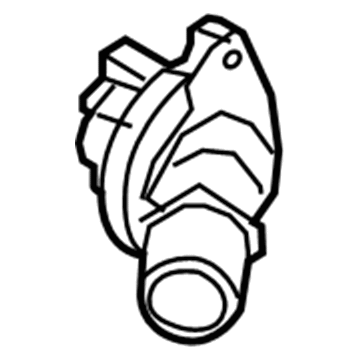

Chevrolet Equinox Thermostat Housing Part Number: 25201447
$67.81 MSRP: $139.32
You Save: $71.51 (52%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing, Engine Coolant Temperature; Thermostat Housing Cover; Thermostat Gasket; Thermostat; Thermostat Cover; Water Inlet; Housing, Engine Coolant Thermostat
- Replaces: 12651603
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2020 Chevrolet Equinox | LT, Premier | 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Thermostat Housing Part Number: 12618159
$73.77 MSRP: $131.74
You Save: $57.97 (44%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Housing, Engine Coolant Thermostat; Engine Coolant Thermostat Housing; Thermostat Housing Cover
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | L, LS, LT, LTZ, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS

Chevrolet Equinox Thermostat Housing

Want to cut long-term maintenance and repair costs? Choose OEM Thermostat Housing. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Thermostat Housing includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

This Equinox Thermostat Housing is an essential part that stands for reliability and performance among all the Chevrolet Equinox models. This part plays a crucial role in maintaining proper temperatures in an engine through housing of the thermostat while at the same time tripping coolant flow to avoid an engine from overheating and thus producing maximum output. The Chevrolet Equinox Thermostat Housing fits three generations of the Equinox, which indicates that it can be useful for many owners of this car model. Made from either metal or quality plastic, the Thermostat Housing has some features like variation in the types of water outlet necks which include the straight, swivel and slanting one that make the cooling and installation easier. Hinged neck, for example, enhances the positioning of the hose and hence the sealing effectiveness and versatility. Chevrolet Equinox, first introduced in the year 2004, has been through some changes for each generation brings in the new technology and safety features- One of them is the Lane departure warning system. It is The Thermostat Housing that provides special contribution in increasing the efficiency as well as safety of the vehicle by maintaining the appropriate temperature for the functioning of the engine. Now, Chevrolet Equinox has sold more than 2 million copies, the Thermostat Housing is also one of the models that really reflects the brand's efforts to deliver quality and quick performance. In the competitive automotive market, consumers of Chevrolet Equinox Thermostat Housing need a product that is reliable, unique, and compatible for the repair of Chevrolet Equinox that's why this product is recommended.

Chevrolet Equinox Thermostat Housing Parts Questions & Experts Answers

Thermostat Housing
12689039
Q: How to replace the Engine Coolant Thermostat Housing (LNJ) (3.4L) on Chevrolet Equinox?
A:
You must remove the fuel injector sight shield before starting the engine coolant Thermostat housing (LNJ) (3.4L) replacement task. Pull the coolant until it sits beneath the Thermostat position. The next step requires deletion of both crossover Exhaust Pipe and Radiator Hose present at the Thermostat housing. After removing the Thermostat housing bolts begin cleaning off any sealer from the bolt threads before separating the Thermostat housing and the Thermostat. Mount the heating control component first then put on the Thermostat housing after cleaning all mating areas properly. Use rtv sealer type gm p/n 12378478 (or Canadian P/N 88900041 equivalent) on the bolt threads of the Thermostat housing. Screw in the Thermostat housing bolts until they reach 25 nm of torque (18 lb ft). After reattaching the Radiator Hose to the Thermostat housing install the crossover Exhaust Pipe. To complete the task reinstall the fuel injector sight shield while you fill the cooling system and conduct leak detection followed by any needed repair work.
