How to replace the Washer Reservoir and pump on Chevrolet Equinox?

After giving time for cooling you can start by removing the bolts that secure the coolant surge tank. Place the surveillance tank aside within the engine region while keeping its coolant lines attached and removing the measurement sensor. Detach the bolts from the front washer solvent container and unhook the hose linking the front washer nozzle to the washer solvent container housing which travels next to the upper motor rail. Reposition the washer solvent container towards the back of the vehicle before removing it from the base. To unplug the Washer Pump safely pull off its electrical connector then pull out the solvent filled Washer Pump unit from the solvent reservoir. Unplug the Washer Pump from both washer solvent hoses at the front and back. For installation use fresh washer solvent when connecting the front and rear house fittings to the Washer Pump assembly. Place the Washer Pump into the solvent can while also reinstalling the filter and connecting the electrical connector to it. Place the washer solvent container hoses over the container grooves and put the washer solvent container inside the motor compartment. Align the mounting peg with grommet into the body structure mounting hole while using lubricant when needed. The washer solvent container grommet should be placed between the container and body structure to eliminate squeaky sounds. Hook up the washer solvent container hose to the front nozzle hose and bolt the solvent container into place application while tightening the screws to 2.5 n.m torque. Reinstall the coolant surge tank to its proper position and bolt it down while tightening both bolts to 6 n.m (53 lb in). Set washer solvent into the washer solvent container at the end.

OEM Chevrolet Equinox Washer Reservoir

Windshield Washer Reservoir

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Washer Reservoirs found

View related parts

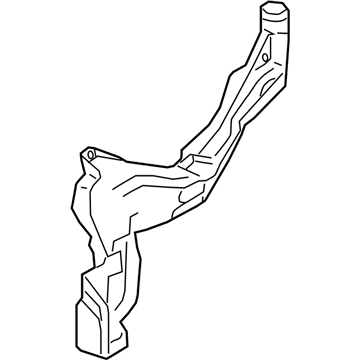

Chevrolet Equinox Washer Reservoir Part Number: 19120334
$49.26 MSRP: $76.88
You Save: $27.62 (36%)
ADD TO CART
Product Specifications
- Other Name: Container, Windshield Washer Solvent; Container; Container, Windshield Washer
- Replaces: 19120072
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007-2009 Chevrolet Equinox | LS, LT, LTZ, Sport | 6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
View related parts

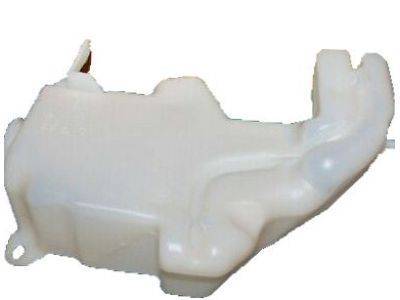

Chevrolet Equinox Washer Reservoir Part Number: 84064760
$25.76 MSRP: $45.99
You Save: $20.23 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Container Kit, Windshield Washer; Container, Windshield Washer
- Replaces: 20907277, 25942553, 20907276
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2016 Chevrolet Equinox | L, LS, LT, LTZ | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L FLEX, 6 Cyl 3.0 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

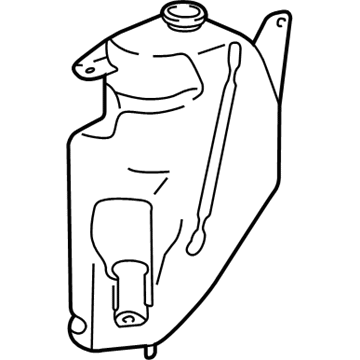

Chevrolet Equinox Washer Reservoir Part Number: 22697207
$33.84 MSRP: $52.99
You Save: $19.15 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Container, Windshield Washer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS
View related parts

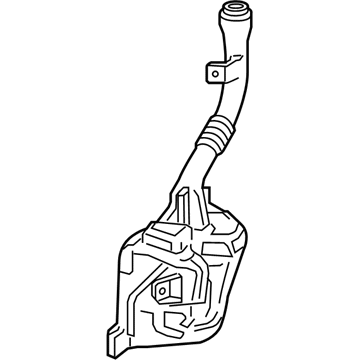

Chevrolet Equinox Washer Reservoir Part Number: 85530679
$54.25 MSRP: $96.88
You Save: $42.63 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Container, Windshield Washer
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2023-2024 Chevrolet Equinox | LS, LT, Premier, RS | 4 Cyl 1.5 L GAS
View related parts

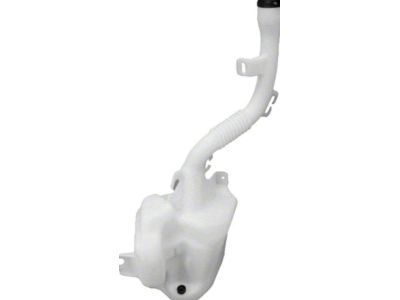

Chevrolet Equinox Washer Reservoir Part Number: 84768722
$57.79 MSRP: $103.20
You Save: $45.41 (44%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Container, Windshield Washer
- Replaces: 84265495, 84141107
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2022 Chevrolet Equinox | L, LS, LT, Premier, RS | 4 Cyl 1.5 L GAS, 4 Cyl 1.6 L DIESEL, 4 Cyl 2.0 L GAS
View related parts
Chevrolet Equinox Washer Reservoir Part Number: 84052133
$25.13 MSRP: $44.89
You Save: $19.76 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Container Kit, Windshield Washer; Container, Windshield Washer
- Replaces: 23316259
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017 Chevrolet Equinox | L, LS, LT, Premier | 4 Cyl 2.4 L FLEX, 4 Cyl 2.4 L GAS, 6 Cyl 3.6 L FLEX, 6 Cyl 3.6 L GAS
View related parts

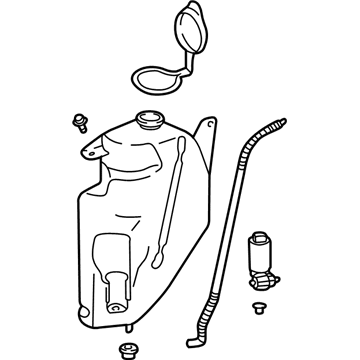

Chevrolet Equinox Washer Reservoir Part Number: 15824854
Product Specifications
- Other Name: Container Kit, Windshield Washer; Container
- Replaces: 22701085
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2006 Chevrolet Equinox | LS, LT | 6 Cyl 3.4 L GAS

Chevrolet Equinox Washer Reservoir

Want to cut long-term maintenance and repair costs? Choose OEM Washer Reservoir. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Equinox parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Equinox Washer Reservoir includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet make Equinox Washer Reservoir is a paramount part that emphasizes on the dependability and performance of Chevrolet Equinox models. Functioning to store windshield washer fluid, this Washer Reservoir enables car users to have a clean windshield sight which is very important when driving. Made from hard plastic it is a good fit with Chevrolet's quality focus, however, proper attention to the system's fluids is needed as failure to which the material becomes brittle and may crack. The location of the Washer Reservoir depends on the Equinox model and differs to provide greater usability of the part. Support for various Equinox generations ranging from the first one produced in the year 2004 up to the modern models shows the significance of the element in the execution of the automobile. This Washer Reservoir not only review the efficiency of the windshield cleaning system but also added a crucial part to the safety aspect of the vehicle by making sure that the driver is able to see through the windshield in cases of poor weathers. Some other features include the uniquely-designed Chevrolet Equinox Washer Reservoir for convenient ways of refilling the fluid and having the part maintained in the automotive market. Chevrolet's Equinox has remained a customer darling with the vehicle having recorded over 2 million units sold and the Washer Reservoir part is evidence that the car manufacturers are willing to go an extra mile to make drivers comfortable and safe on the roads. To sum it up, nobody can argue with the fact that Chevrolet Equinox Washer Reservoir is a significant component that ensures the proper functioning of vehicles, their reliability, and safety of the models of Equinox.

Chevrolet Equinox Washer Reservoir Parts Questions & Experts Answers

Washer Reservoir
22697207
Q: How to replace the Washer Reservoir and pump on Chevrolet Equinox?
A:
After giving time for cooling you can start by removing the bolts that secure the coolant surge tank. Place the surveillance tank aside within the engine region while keeping its coolant lines attached and removing the measurement sensor. Detach the bolts from the front washer solvent container and unhook the hose linking the front washer nozzle to the washer solvent container housing which travels next to the upper motor rail. Reposition the washer solvent container towards the back of the vehicle before removing it from the base. To unplug the Washer Pump safely pull off its electrical connector then pull out the solvent filled Washer Pump unit from the solvent reservoir. Unplug the Washer Pump from both washer solvent hoses at the front and back. For installation use fresh washer solvent when connecting the front and rear house fittings to the Washer Pump assembly. Place the Washer Pump into the solvent can while also reinstalling the filter and connecting the electrical connector to it. Place the washer solvent container hoses over the container grooves and put the washer solvent container inside the motor compartment. Align the mounting peg with grommet into the body structure mounting hole while using lubricant when needed. The washer solvent container grommet should be placed between the container and body structure to eliminate squeaky sounds. Hook up the washer solvent container hose to the front nozzle hose and bolt the solvent container into place application while tightening the screws to 2.5 n.m torque. Reinstall the coolant surge tank to its proper position and bolt it down while tightening both bolts to 6 n.m (53 lb in). Set washer solvent into the washer solvent container at the end.
