How to replace the rear Motor and Transmission Mount on Chevrolet Metro?

Motorists must elevate their vehicle before they can properly support it before installing the new rear transaxle mount. To begin support the transaxle system with a hydraulic jack in position. Begin by extracting the rear transaxle mount through-bolt and nut before proceeding to undo the two transaxle mount retaining bolts then removing the transaxle mount . Put the rear transaxle mount into the vehicle's position while using two retaining bolts to secure it and torque them to 60 Nm (44 ft. lbs.). Tighten the through-bolt along with the nut into the rear transaxle mount to a torque setting of 60 Nm (44 ft. lbs.). Lower the vehicle while removing the hydraulic jack from underneath the transaxle.

How to replace the left Motor and Transmission Mount on Chevrolet Metro?

The first step to replace the left transaxle mount requires proper vehicle elevation and support. First remove the 5 retainer clips from the left splash shield before removing the left splash shield. After supporting the transaxle with a suitable hydraulic jack remove both retaining nuts which hold the left transaxle mount in place along with the through-bolt securing the left transaxle mount to the vehicle. The setup procedure begins with moving the transaxle slightly then removing the left transaxle mount from the vehicle as the left transaxle bracket clears the left transaxle mounting studs. Set the left transaxle mount into its proper position within the vehicle while using a hydraulic jack to lift the transaxle into place. Fit the through-bolt to the left transaxle mount while achieving a torque of 60 nm (44 ft. Lbs.). Next apply 2 retaining nuts to the transaxle mount before torquing them to 60 nm (44 ft. Lbs.). Put away the hydraulic jack as you reattach the left splash shield before attaching five retainers and bringing the vehicle to rest.

OEM Chevrolet Metro Motor And Transmission Mount

Motor and Trans Mount

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Motor And Transmission Mounts found

View related parts

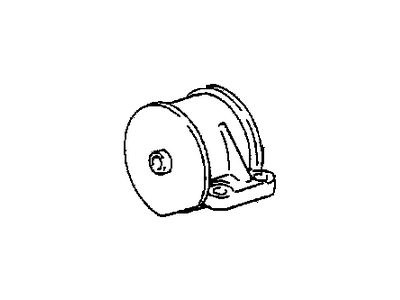

Chevrolet Metro Motor Mount Part Number: 96065052
$66.68 MSRP: $73.49
You Save: $6.81 (10%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Mount, Engine Mounting; Front Mount; Mount, Engine
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 3 Cyl 1.0 L GAS, 4 Cyl 1.3 L GAS
View related parts

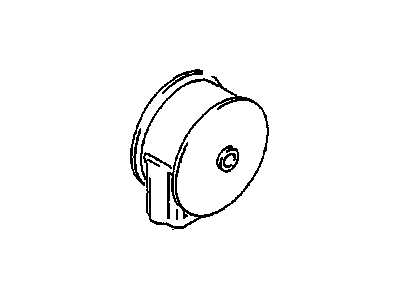

Chevrolet Metro Motor Mount Part Number: 96066384
Product Specifications
- Other Name: Trans Mount; Rear Mount; Mount, Engine Mounting; Mount, Engine
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 3 Cyl 1.0 L GAS, 4 Cyl 1.3 L GAS
View related parts

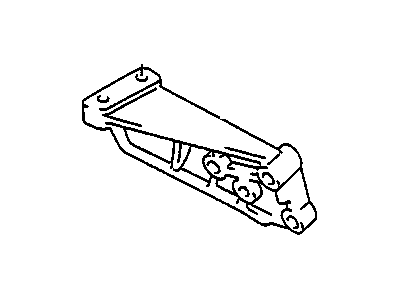

Chevrolet Metro Front Bracket Part Number: 96066383
Product Specifications
- Other Name: Engine Mount Bracket; Motor Mount; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts

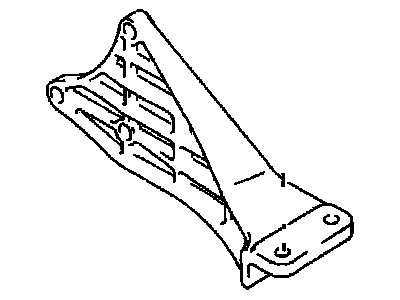

Chevrolet Metro Front Bracket Part Number: 96066382
Product Specifications
- Other Name: Engine Mount Bracket; Motor Mount; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Front Bracket Part Number: 96060019
Product Specifications
- Other Name: Bracket; Bracket, Engine Mounting
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts

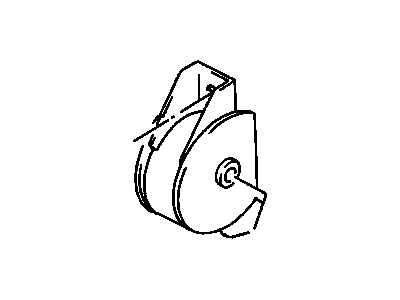

Chevrolet Metro Motor Mount Part Number: 96060012
Product Specifications
- Other Name: Torque Strut; Front Mount; Mount, Engine Mounting; Mount, Engine
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base | 3 Cyl 1.0 L GAS
View related parts

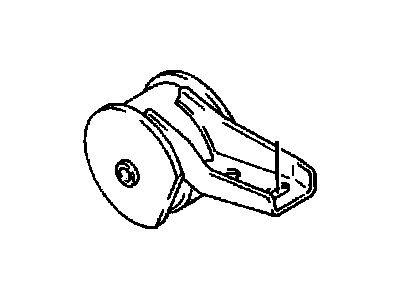

Chevrolet Metro Motor Mount Part Number: 91174085
Product Specifications
- Other Name: Mount, Engine Rear; Rear Mount; Mount, Engine Mounting; Mount, Engine
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount, Passenger Side Part Number: 30014491
Product Specifications
- Other Name: Mount, Engine Front; Engine Mount Bracket; Front Mount; Mount, Engine Mounting; Mount, Engine
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Motor Mount, Front Passenger Side Part Number: 30014235
Product Specifications
- Other Name: Mount, Engine Front; Engine Mount Bracket; Front Mount; Mount, Engine Mounting; Mount, Engine
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS
View related parts
Chevrolet Metro Front Bracket, Driver Side Part Number: 30002601
Product Specifications
- Other Name: Bracket, Engine Mounting; Engine Mount Bracket; Motor Mount
- Position: Driver Side
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2000 Chevrolet Metro | Base, LSi | 4 Cyl 1.3 L GAS

Chevrolet Metro Motor And Transmission Mount

Want to cut long-term maintenance and repair costs? Choose OEM Motor And Transmission Mount. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Metro parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Metro Motor And Transmission Mount includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Metro has a part known as Motor And Transmission Mount whose main function is that of anchoring the transmission as well as protecting it from vibrations from the engine. This is an important aspect in ensuring a stable and optimum performance of the vehicles transference of power. Depending on the particular transmission system of the Chevrolet Metro, this support may be given by one or more of the Motor And Transmission Mounts. Through time, diverse kinds of Motor And Transmission Mounts have been applied to several Chevrolet Metro cars depending on the model in demand. The main difference between the types can be explained by the design of them and the number of mountings which influence the handling characteristic as well as the ride comfort of the car.

Chevrolet Metro Motor And Transmission Mount Parts and Q&A

Motor Mount
96060012
Q: How to replace the rear Motor and Transmission Mount on Chevrolet Metro?
A:
Motorists must elevate their vehicle before they can properly support it before installing the new rear transaxle mount. To begin support the transaxle system with a hydraulic jack in position. Begin by extracting the rear transaxle mount through-bolt and nut before proceeding to undo the two transaxle mount retaining bolts then removing the transaxle mount . Put the rear transaxle mount into the vehicle's position while using two retaining bolts to secure it and torque them to 60 Nm (44 ft. lbs.). Tighten the through-bolt along with the nut into the rear transaxle mount to a torque setting of 60 Nm (44 ft. lbs.). Lower the vehicle while removing the hydraulic jack from underneath the transaxle.
Front Bracket
96060019
Q: How to replace the left Motor and Transmission Mount on Chevrolet Metro?
A:
The first step to replace the left transaxle mount requires proper vehicle elevation and support. First remove the 5 retainer clips from the left splash shield before removing the left splash shield. After supporting the transaxle with a suitable hydraulic jack remove both retaining nuts which hold the left transaxle mount in place along with the through-bolt securing the left transaxle mount to the vehicle. The setup procedure begins with moving the transaxle slightly then removing the left transaxle mount from the vehicle as the left transaxle bracket clears the left transaxle mounting studs. Set the left transaxle mount into its proper position within the vehicle while using a hydraulic jack to lift the transaxle into place. Fit the through-bolt to the left transaxle mount while achieving a torque of 60 nm (44 ft. Lbs.). Next apply 2 retaining nuts to the transaxle mount before torquing them to 60 nm (44 ft. Lbs.). Put away the hydraulic jack as you reattach the left splash shield before attaching five retainers and bringing the vehicle to rest.
