How to replace the Automatic Transmission Oil Cooler Line on Chevrolet Monte Carlo?

Vehicle elevation along with suspension support becomes necessary to complete automatic transmission oil cooler pipes replacement while placing a drainage pan underneath the vehicle. Thoroughly disconnect the transaxle by removing its retaining bracket bolt and detaching the hoses installation. The lower radiator air deflector should first be removed along with disconnecting the oil cooler pipes from their radiator fittings. The process requires pulling back the plastic cap from the fitting by two inches before using a bent-tip screwdriver to rotate and remove the retaining ring. Pull out the oil cooler pipe directly from the fitting after discarding its retaining ring. Recover all oil pipes as well as the clip bolt and retaining ring (E-clip) before removing the pipes from the vehicle. Installation requires new retaining rings exclusively where you should position one ring end into a slot on the quick connect fitting until all three ears sit correctly. The installer must verify that plastic caps cover both oil cooler line ends right before assembly. Push the oil cooler pipe into position until you hear or feel a distinct clicking sound and finish the securement by tugging on it. After inserting the plastic cap onto the fitting avoid manual retaining ring depression to create a proper seal that shows no gaps and conceals the yellow identification band. Replace both the retaining ring and pipe end when the cap fails to sit correctly into position. To finish the repairs first install the transaxle oil cooler hoses on the transaxle and secure the clip bolt with 4 nm (27 inch lbs.) torque and reposition the lower radiator air deflector, lower the vehicle, check fluid levels and examine the maintenance quality and search for leaks.

OEM Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line

AT Oil Cooler Hose

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Automatic Transmission Oil Cooler Lines found

View related parts

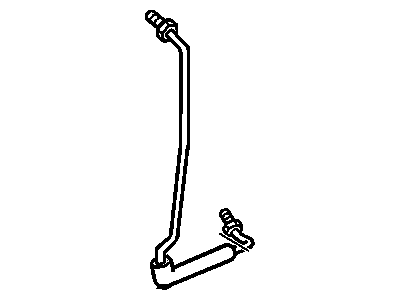

Chevrolet Monte Carlo Cooler Line Part Number: 10254586
$5.64 MSRP: $9.11
You Save: $3.47 (39%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pipe, Transmission Oil Cooler; Transmission Oil Cooler Line; Cooler Pipe
- Position: Upper
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

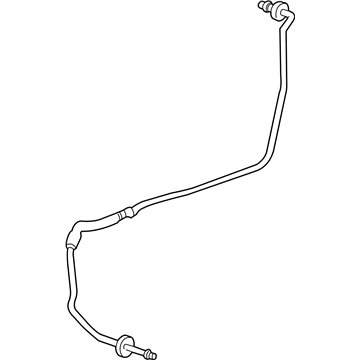

Chevrolet Monte Carlo Cooler Pipe Part Number: 15213201
$28.64 MSRP: $47.18
You Save: $18.54 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Transmission Fluid Cooler; Transmission Oil Cooler Line; Hose, Transmission Oil Cooler
- Replaces: 10350991
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2003 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

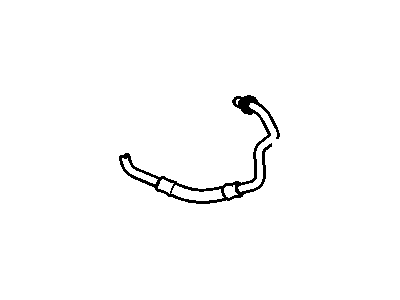

Chevrolet Monte Carlo Cooler Pipe Part Number: 15213200
$31.92 MSRP: $52.58
You Save: $20.66 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose Assembly-Transmission Fluid Cooler; Transmission Oil Cooler Line; Hose, Transmission Oil Cooler
- Replaces: 10330103, 10350990, 10288688, 10324456
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2003 Chevrolet Monte Carlo | LS, LS Competition, LS Sport, SS, SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition, SS High Sport, SS Pace Car | 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS
View related parts

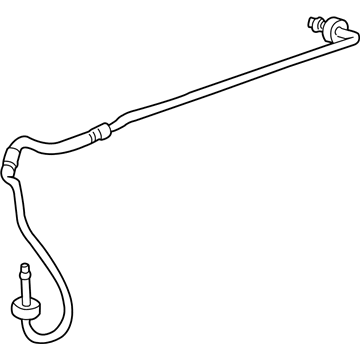

Chevrolet Monte Carlo Cooler Line Part Number: 10290000
$16.75 MSRP: $27.59
You Save: $10.84 (40%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hose, Transmission Oil Cooler; Transmission Oil Cooler Line; Lower Hose; Cooler Pipe
- Replaces: 10273667, 10248869
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1999 Chevrolet Monte Carlo | LS, Z34 | 6 Cyl 3.1 L GAS, 6 Cyl 3.4 L GAS, 6 Cyl 3.8 L GAS

Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line

Want to cut long-term maintenance and repair costs? Choose OEM Automatic Transmission Oil Cooler Line. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet Monte Carlo parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line is one of such components that stress the dependability and power of the Chevrolet Monte Carlo series. This system helps to maintain an appropriate flow of oil for the engine hence appropriate temperature, and in the long run it boosts the performance of the engine. The Automatic Transmission Oil Cooler Line includes the Supply Line by which the hot oil gets to the cooler and the Return Line where the cooled oil goes back to the engine; this component is rather vital when it comes to the general efficiency of the automobile's engine. Applicability to different generations of Chevrolet Monte Carlo ranging from 1969 to 2007 shows the compatibility's relevance to generations. The Automatic Transmission Oil Cooler Line not only aid in the improved performance of the car but also plays a safety factor in the car and getting rid of oil leak issues, which might lead to engine overheating. Automotive descriptive characteristics of the Automatic Transmission Oil Cooler Line include, durability and specificity concerning the varieties of the Monte Carlo cars. Thus, keeping the engine runnig and well-organized Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line retains the bright example of the brand, which has contributed to the cult of the personal luxury auto Chevrolet Monte Carlo.

Chevrolet Monte Carlo Automatic Transmission Oil Cooler Line Parts Questions & Experts Answers

Cooler Pipe
15213201
Q: How to replace the Automatic Transmission Oil Cooler Line on Chevrolet Monte Carlo?
A:
Vehicle elevation along with suspension support becomes necessary to complete automatic transmission oil cooler pipes replacement while placing a drainage pan underneath the vehicle. Thoroughly disconnect the transaxle by removing its retaining bracket bolt and detaching the hoses installation. The lower radiator air deflector should first be removed along with disconnecting the oil cooler pipes from their radiator fittings. The process requires pulling back the plastic cap from the fitting by two inches before using a bent-tip screwdriver to rotate and remove the retaining ring. Pull out the oil cooler pipe directly from the fitting after discarding its retaining ring. Recover all oil pipes as well as the clip bolt and retaining ring (E-clip) before removing the pipes from the vehicle. Installation requires new retaining rings exclusively where you should position one ring end into a slot on the quick connect fitting until all three ears sit correctly. The installer must verify that plastic caps cover both oil cooler line ends right before assembly. Push the oil cooler pipe into position until you hear or feel a distinct clicking sound and finish the securement by tugging on it. After inserting the plastic cap onto the fitting avoid manual retaining ring depression to create a proper seal that shows no gaps and conceals the yellow identification band. Replace both the retaining ring and pipe end when the cap fails to sit correctly into position. To finish the repairs first install the transaxle oil cooler hoses on the transaxle and secure the clip bolt with 4 nm (27 inch lbs.) torque and reposition the lower radiator air deflector, lower the vehicle, check fluid levels and examine the maintenance quality and search for leaks.
