OEM Chevrolet S10 Oil Pan

Oil Drain Pan
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Oil Pans found

  • Chevy S10 Oil Pan - 12597151
    Chevy S10 Oil Pan - 12597151

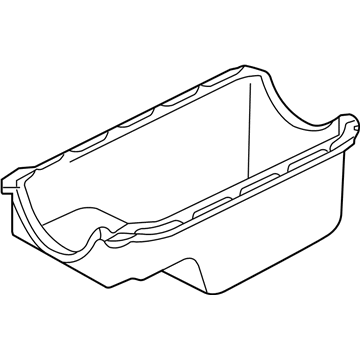

    Chevy S10 Oil Pan Diagram - 12597151
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12597151

    $253.27 MSRP: $343.77
    You Save: $90.50 (27%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Pan, Engine Oil
    • Replaces: 12556541
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1999-2004 Chevrolet S10 | Base, LS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 10078999
    Chevy S10 Oil Pan Diagram - 10078999
    View related parts

    Chevrolet S10 Oil Pan Part Number: 10078999

    $74.26 MSRP: $149.08
    You Save: $74.82 (51%)
    ADD TO CART
    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1987-1993 Chevrolet S10 | Baja, Base, Durango, EL, Sport, Tahoe | 6 Cyl 2.8 L GAS
  • Chevy S10 Oil Pan - 12597153
    Chevy S10 Oil Pan Diagram - 12597153
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12597153

    $346.25 MSRP: $544.81
    You Save: $198.56 (37%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Pan, Engine Oil; Engine Oil Pan
    • Replaces: 12558216
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1999-2004 Chevrolet S10 | Base, LS, Xtreme, ZR2, ZR5 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 24576441
    Chevy S10 Oil Pan Diagram - 24576441
    View related parts

    Chevrolet S10 Oil Pan Part Number: 24576441

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1994-2003 Chevrolet S10 | Base, LS, Xtreme | 4 Cyl 2.2 L FLEX, 4 Cyl 2.2 L GAS
  • Chevy S10 Oil Pan - 14077881
    Chevy S10 Oil Pan Diagram - 14077881
    View related parts

    Chevrolet S10 Oil Pan Part Number: 14077881

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1984-1986 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
  • Chevy S10 Oil Pan - 14077878
    Chevy S10 Oil Pan Diagram - 14077878
    View related parts

    Chevrolet S10 Oil Pan Part Number: 14077878

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1984-1986 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
  • Chevy S10 Oil Pan - 12559517
    Chevy S10 Oil Pan Diagram - 12559517
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12559517

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Replaces: 12557226
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1996-1998 Chevrolet S10 | Base, LS, SS, ZR2 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 12559516
    Chevy S10 Oil Pan Diagram - 12559516
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12559516

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Replaces: 12557225
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1996-1998 Chevrolet S10 | Base, LS, SS, ZR2 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 12554259
    Chevy S10 Oil Pan Diagram - 12554259
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12554259

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1988-1995 Chevrolet S10 | Baja, Base, Durango, EL, LS, Sport, SS, Tahoe, ZR2 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 12554258
    Chevy S10 Oil Pan Diagram - 12554258
    View related parts

    Chevrolet S10 Oil Pan Part Number: 12554258

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1988-1995 Chevrolet S10 | Baja, Base, Durango, EL, LS, Sport, SS, Tahoe, ZR2 | 6 Cyl 4.3 L GAS
  • Chevy S10 Oil Pan - 10099979
    Chevy S10 Oil Pan Diagram - 10099979
    View related parts

    Chevrolet S10 Oil Pan Part Number: 10099979

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1987-1989 Chevrolet S10 | Base, Durango, Sport, Tahoe | 6 Cyl 2.8 L GAS
  • Chevy S10 Oil Pan - 10044683
    Chevy S10 Oil Pan Diagram - 10044683
    View related parts

    Chevrolet S10 Oil Pan Part Number: 10044683

    Product Specifications
    • Other Name: Pan, Engine Oil
    • Warranty: This genuine part is guaranteed by GM's factory warranty.
    Fits the following Vehicles:
    • 1985-1993 Chevrolet S10 | Base, Durango, EL, Sport, Tahoe | 4 Cyl 2.5 L GAS

Chevrolet S10 Oil Pan

Want to cut long-term maintenance and repair costs? Choose OEM Oil Pan. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine Chevrolet S10 parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM Chevrolet S10 Oil Pan includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

S10 vehicles from the Chevrolet brand employ the wet sump system which has the Oil Pan as the holding tank for engine oil. An oil pump suction picks up the oil in the pan, and with the help of a pickup tube feeds the oil to lubricate and cool parts of the engine before oil falls back to the pan. Formerly, S10 engine used stamped steel which is now replaced by Cast Aluminum especially in the oil pans. It also has an important function of lubricating the motors by maintaining the right quantity of oil and this can only be done by the oil pan.

Chevrolet S10 Oil Pan Parts Questions & Experts Answers

  • Chevrolet S10 Oil Pan - 12597151 Oil Pan Oil Pan
    12597151
    Q: How to replace the oil pan on Chevrolet S10?
    A:
    A replacement of the Oil Pan begins with disconnecting the negative cable battery followed by removal of the oil level indicator and front Differential assembly and the Starter unit before removing the transmission cover. Roll out the engine oil through the Oil Pan's Drain Plug before directing it into a proper receptacle. To begin the replacement process disconnect the remote oil filter pipe adapter along with the bolt securing the remote filter hose clip to the Oil Pan and finally remove the stud for wiring harness bracket and transmission oil cooler pipes if installed. Remove access plugs for Oil Pan rear nuts and transmission to Oil Pan bolts yet understand the low oil level sensor needs replacement with a new unit. Once the engine oil level sensor is discarded, technicians should remove all Oil Pan bolts and nuts before discarding the Oil Pan and gasket. Wash every sealing surface between the engine and Oil Pan. The installation process requires applying an adhesive 0.197 inch (5 mm) wide by 1 inch (25 mm) long bead of gm p/n 12346141 or equivalent along the front cover engine block junction and crankshaft rear oil seal housing to engine block junction at the Oil Pan sealing surfaces. When installing the Oil Pan Gasket always use a fresh one and position it when adhesive remains tacky. The Oil Pan should rest either flush or slightly forward facing at most 0.3 mm (0.011 inch) from the rear engine block surface. Set the Oil Pan Gasket into the groove of the Oil Pan before placing it onto the engine block while pressing the gasket into its grooves. First align the Oil Pan to a straight edge prior to applying the Oil Pan bolts with loose nut threads. Then use a feeler gauge to check the pan-to-transmission clearance. The alignment needs repeating if the clearance measurement reaches 0.3 mm (0.011 inch) at any point among the three measurement points. Measure the Oil Pan-to-transmission housing clearance again after tightening the Oil Pan bolts to 25 nm (18 ft. Lbs.) in sequence. Torque the new Oil Pan Drain Plug seal to 25 nm (18 ft. Lbs.) while also installing a new engine oil level sensor that requires 13 nm (115 inch lbs.) of torque. Begin by tightening transmission to Oil Pan bolts to 47 nm (35 ft. Lbs.) while completing the process with access plugs for Oil Pan rear nuts followed by Starter wire harness bracket stud and remote oil filter pipe adapter. Attach the oil filter hose inlet and outlet connection to the Oil Pan by threading a 10 nm (88 inch lbs.) bolt through the pan. Then fasten the transmission cover using 12 nm (106 inch lbs.) bolts. After installing the Starter motor connect the front Differential assembly and oil level indicator before filling the engine with oil and reattaching the negative Battery Cable.
