How to replace the canister purge valves on Chevrolet Trailblazer?

To replace the Evaporative Emission Canister Purge Solenoid Valve, there is a need to initially lift the vehicle. Remove the harness electrical connector from the evaporative emission (EVAP) canister purge valve, then unbolt the EVAP purge pipe and engine vacuum pipe from the EVAP canister purge valve. Pull the purge valve from the purge valve mounting bracket and if changing the purge valve bracket, unbolt attaching bolt and bracket. If a new purge bracket is going to be put in, then attach purge valve bracket and tighten it in position using the bolt and tighten 10 Nm (89 lb in). Next, install purge valve onto the mounting bracket, reattach EVAP purge pipe and engine vacuum pipe to the EVAP canister purge valve as well as connect the electrical harness connector to the EVAP canister purge valve before reducing the vehicle.

OEM Chevrolet Trailblazer Canister Purge Valves

Fuel Tank Evaporator Purge Control Valve

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Canister Purge Valves found

View related parts

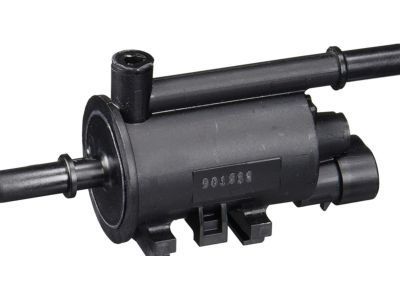

Chevrolet Trailblazer Solenoid Valve, Green Line
Part Number: 12597567
$35.29 MSRP: $66.28
You Save: $30.99 (47%)
ADD TO CART
Product Specifications
- Other Name: Valve, Fuel Tank Evaporator/Purge Control; Vapor Canister Purge and Vent Solenoids; Purge Valve; Purge Valve; Purge Solenoid; Purge Control Valve; Solenoid
- Replaced by: 12735397
- Replaces: 12606684, 12597566, 12570469, 12597341
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Chevrolet Trailblazer | Base, LS, LT, SS | 6 Cyl 4.2 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L GAS
View related parts
Chevrolet Trailblazer Vapor Canister Purge Solenoid Valve
Part Number: 12666845
$17.24 MSRP: $32.38
You Save: $15.14 (47%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Valve Assembly Evap Emis Cnstr Purge Sol; Purge Solenoid; Purge Control Valve; Regulator Valve; Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2021-2024 Chevrolet Trailblazer | ACTIV, L, LS, LT, RS | 3 Cyl 1.2 L GAS, 3 Cyl 1.3 L GAS
View related parts
Chevrolet Trailblazer Solenoid Valve
Part Number: 1997278
$38.93 MSRP: $69.54
You Save: $30.61 (45%)
Product Specifications
- Other Name: Valve, Evaporator; Vapor Canister Purge Solenoid; Vapor Canister Vent Solenoid; Canister Purge Valve; Purge Valve; Purge Solenoid; Purge Control Valve; Solenoid; Valve, Fuel Tank Evaporator/Purge Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2004 Chevrolet Trailblazer | LS, LT, LTZ, North Face | 6 Cyl 4.2 L GAS

Chevrolet Trailblazer Canister Purge Valves

Our website offers an extensive catalog of genuine Chevrolet Trailblazer Canister Purge Valves at unbeatable prices. Every OEM Chevrolet Trailblazer Canister Purge Valves comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

Chevrolet Trailblazer Canister Purge Valves Parts Questions & Experts Answers

Solenoid Valve, Green Line
12597567
Q: How to replace the canister purge valves on Chevrolet Trailblazer?
A: To replace the Evaporative Emission Canister Purge Solenoid Valve, there is a need to initially lift the vehicle. Remove the harness electrical connector from the evaporative emission (EVAP) canister purge valve, then unbolt the EVAP purge pipe and engine vacuum pipe from the EVAP canister purge valve. Pull the purge valve from the purge valve mounting bracket and if changing the purge valve bracket, unbolt attaching bolt and bracket. If a new purge bracket is going to be put in, then attach purge valve bracket and tighten it in position using the bolt and tighten 10 Nm (89 lb in). Next, install purge valve onto the mounting bracket, reattach EVAP purge pipe and engine vacuum pipe to the EVAP canister purge valve as well as connect the electrical harness connector to the EVAP canister purge valve before reducing the vehicle.
