How to service and repair the ABS Control Module on GMC C2500?

Initiating ABS Control Module (ABSCM) service and repair begins with negative Battery Cable disconnection and protecting the electronic hydraulic control unit (EHCU) area from loose dirt to preserve the cleanliness of the abs components during all disassembly steps. First wash thoroughly any contaminants from the ehcu area and afterward separate the abscm electrical connectors. Release the three bracket securing bolts on the frame rail of the ehcu mounting bracket for access to remove the four mounting screws which connect the abscm to brake pressure modulator valve (BPMV). Take out the abscm from the bpmv by applying gentle pressure because heavy force could harm the abscm component. Clean both surfaces that abscm and bpmv are mounted to using a clean cloth. The new abscm installation requires fresh screws instead of old hardware and professionals should not apply any sealants at either the abscm gasket or mating surfaces. The bpmv requires the abscm to be installed and secured through four new screws tightened to 5 n.m (39 lb in) in an x-pattern. Complete the abscm installation by reconnecting the electrical connectors to the abscm and the negative Battery Cable after reassembling and tightening the mounting bolts of ehcu bracket to 25 n.m (18 lb ft). Complete calibration of tire size requires using the scan tool tire size calibration function before returning to diagnostic starting point.

OEM GMC C2500 ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

8 ABS Control Modules found

View related parts

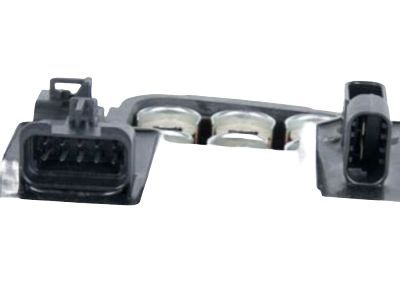

GMC C2500 Control Module
Part Number: 12476000
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2000 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 12548258
Product Specifications
- Other Name: Module Kit, Electronic Brake Control (Ebcm); ABS Control Module; ABS Control Unit
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1996 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 12476002
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module; ABS Control Unit
- Replaces: 12474469, 12389543
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2000 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 15976820
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module; ABS Control Unit; Module
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1995 GMC C2500 | Sierra, Sierra SL, Sierra SLE, Sierra SLT, Sierra SLX | 6 Cyl 4.3 L GAS, 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.2 L DIESEL, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 12474925
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module; Module
- Replaces: 12376073
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 ABS Control Unit
Part Number: 12474923
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module; Modulator
- Replaces: 12376071
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-1999 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 12389541
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module; ABS Control Unit; Module
- Replaces: 12385540
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1997 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS
View related parts
GMC C2500 Control Module
Part Number: 12389539
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module; Module; Modulator
- Replaces: 12384452, 12384454
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997 GMC C2500 | Sierra SL, Sierra SLE, Sierra SLT | 8 Cyl 5.0 L GAS, 8 Cyl 5.7 L CNG, 8 Cyl 5.7 L GAS, 8 Cyl 6.5 L DIESEL, 8 Cyl 7.4 L GAS

GMC C2500 ABS Control Module

Our website offers an extensive catalog of genuine GMC C2500 ABS Control Module at unbeatable prices. Every OEM GMC C2500 ABS Control Module comes with a manufacturer's warranty, an easy return policy, and rapid delivery service. Don't miss out on this great opportunity!

GMC C2500 ABS Control Module Parts Questions & Experts Answers

Control Module
12476000
Q: How to service and repair the ABS Control Module on GMC C2500?
A: Initiating ABS Control Module (ABSCM) service and repair begins with negative Battery Cable disconnection and protecting the electronic hydraulic control unit (EHCU) area from loose dirt to preserve the cleanliness of the abs components during all disassembly steps. First wash thoroughly any contaminants from the ehcu area and afterward separate the abscm electrical connectors. Release the three bracket securing bolts on the frame rail of the ehcu mounting bracket for access to remove the four mounting screws which connect the abscm to brake pressure modulator valve (BPMV). Take out the abscm from the bpmv by applying gentle pressure because heavy force could harm the abscm component. Clean both surfaces that abscm and bpmv are mounted to using a clean cloth. The new abscm installation requires fresh screws instead of old hardware and professionals should not apply any sealants at either the abscm gasket or mating surfaces. The bpmv requires the abscm to be installed and secured through four new screws tightened to 5 n.m (39 lb in) in an x-pattern. Complete the abscm installation by reconnecting the electrical connectors to the abscm and the negative Battery Cable after reassembling and tightening the mounting bolts of ehcu bracket to 25 n.m (18 lb ft). Complete calibration of tire size requires using the scan tool tire size calibration function before returning to diagnostic starting point.
