How to service and repair the ABS Control Module on GMC Safari?

The service and repair process of the ABS Control Module begins with removing the fuel pipe shield from the frame bracket through the removal of the two nuts. Clean all debris surrounding the Electronic Hydraulic Control Unit (EHCU) until the area demonstrates no loose dirt particles because this prevents disassembly contamination of ABS components. Remove the ABS Control Module by disconnecting its electrical connectors before removing the four Torx Screws which mount the ABS Control Module onto the Brake Pressure Modulator Valve (BPMV). Remove the ABS Control Module from the BPMV using minimal effort because applied force higher than required can lead to ABS Control Module damage. The BPMV and ABS Control Module mounting surfaces should be wiped clean with a dry cloth. For the new ABS Control Module installation keep away from reusing existing mounting screws because you should use fresh ones. RTV sealant along with other products should not be applied either to the ABS Control Module gasket or to its mating surfaces. Fitting the ABS Control Module onto the BPMV requires application of four new T-25 Torx screws which should be tightened to 5 Nm (39 inch lbs.) while following an X-pattern sequence. First connect all electrical connectors to the ABS Control Module before installing the module on the frame bracket and fuel pipe shield with two nuts and performing tire calibration revision through the Scan Tool Tire Size Calibration function.

OEM GMC Safari ABS Control Module

Anti Lock Brake Control Module

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 ABS Control Modules found

View related parts

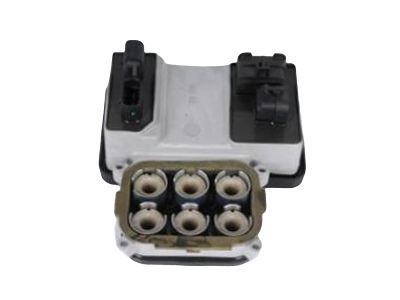

GMC Safari Control Module Part Number: 19244890
$1534.66 MSRP: $2763.26
You Save: $1228.60 (45%)
ADD TO CART
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module
- Replaces: 88935843, 88982310, 88982297, 12478045
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 GMC Safari | Base, SL, SLE, SLT | 6 Cyl 4.3 L GAS
View related parts

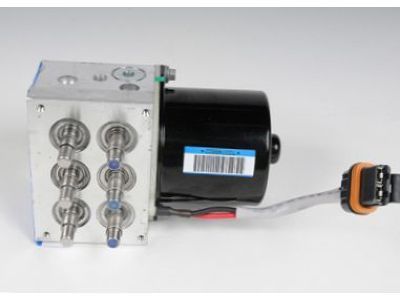

GMC Safari Pressure Module Valve Part Number: 88964380
Product Specifications
- Other Name: Valve Assembly, Brake Pressure Mode; Modulator; Valve, Electronic Brake Control
- Replaces: 88935844, 88982311, 88935639
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2000-2005 GMC Safari | Base, SL, SLE, SLT | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Control Module Part Number: 12474485
Product Specifications
- Other Name: Module Kit, Electronic Brake Control (Ebcm); ABS Control Module; Module Kit, Electronic Brake Control
- Replaces: 12389525
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Control Module Part Number: 88935626
Product Specifications
- Other Name: Module Kit, Electronic Brake Control; ABS Control Module
- Replaces: 12376069
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 GMC Safari | SL, SLE, SLT | 6 Cyl 4.3 L GAS
View related parts
GMC Safari Control Module Part Number: 15976820
Product Specifications
- Other Name: Module, Electronic Brake Control; ABS Control Module; ABS Control Unit; Module
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1993 GMC Safari | Base, GT, SLE, SLT, SLX | 4 Cyl 2.5 L GAS, 6 Cyl 4.3 L GAS
View related parts
GMC Safari Control Module Part Number: 12474487
Product Specifications
- Other Name: Module Kit, Electronic Brake Control (Ebcm); ABS Control Module; Module Kit, Electronic Brake Control
- Replaces: 12389527
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 GMC Safari | Base, SL, SLE, SLT, SLX | 6 Cyl 4.3 L GAS

GMC Safari ABS Control Module

Want to cut long-term maintenance and repair costs? Choose OEM ABS Control Module. Those parts deliver top durability you can trust. On our site, you'll find a huge catalog of genuine GMC Safari parts. Prices are unbeatable, so you can keep more in your pocket. Every OEM GMC Safari ABS Control Module includes a manufacturer's warranty. You can also get an easy return policy that keeps buying risk free. Fast delivery, get your car on the road quickly. It's simple to search, compare, and order. Stop guessing about quality or fit. Order today and save with parts that last.

The GMC Safari ABS Control Module is one of the parts that define the sturdiness and power of GMC units, particularly the Safari line. Well known for increasing the safety and performance of vehicles, the ABS Control Module is responsible for keeping the wheels of a vehicle from locking during hard braking and thus providing tractive grip. This complex actively involves wheels speed sensors along with valves, pump, and the controller (Engine Control Unit) to change the brake force proportional to the collected information by the sensors. The GMC Safari is a vehicle model that was manufactured and sold by GMC between 1985 and 2005; the ABS Control Module is integrated into different models of this car, even modifying options may be available, which is why it is considered an important element. Besides, the later versions of the ABS Control Module in GMC Safari cars may include additional features like ESC and TC to improve car safety. The GMC Safari relies on a rear-wheel-drive chassis and possesses light-truck powertrain elements; correspondingly, the ABS Control Module's performance works in harmony with the vehicle's design goals of affordability and towing capabilities. From what was established, it is evident that the GMC Safari has been in production yielding roughly 3.2 million copies thus making a notable market provider. The ABS Control Module is extremely reliable and also adds to the positive feedback making the GMC Safari one of the most popular choices for families and businesses.

GMC Safari ABS Control Module Parts Questions & Experts Answers

Control Module
19244890
Q: How to service and repair the ABS Control Module on GMC Safari?
A:
The service and repair process of the ABS Control Module begins with removing the fuel pipe shield from the frame bracket through the removal of the two nuts. Clean all debris surrounding the Electronic Hydraulic Control Unit (EHCU) until the area demonstrates no loose dirt particles because this prevents disassembly contamination of ABS components. Remove the ABS Control Module by disconnecting its electrical connectors before removing the four Torx Screws which mount the ABS Control Module onto the Brake Pressure Modulator Valve (BPMV). Remove the ABS Control Module from the BPMV using minimal effort because applied force higher than required can lead to ABS Control Module damage. The BPMV and ABS Control Module mounting surfaces should be wiped clean with a dry cloth. For the new ABS Control Module installation keep away from reusing existing mounting screws because you should use fresh ones. RTV sealant along with other products should not be applied either to the ABS Control Module gasket or to its mating surfaces. Fitting the ABS Control Module onto the BPMV requires application of four new T-25 Torx screws which should be tightened to 5 Nm (39 inch lbs.) while following an X-pattern sequence. First connect all electrical connectors to the ABS Control Module before installing the module on the frame bracket and fuel pipe shield with two nuts and performing tire calibration revision through the Scan Tool Tire Size Calibration function.
