Make sure this part fits

GM 25848403
Lower Control Arm Rear Bushing, Front

2002-2015 GM

Customer Questions & Expert Answers (7)

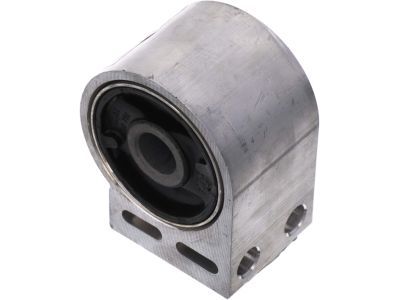

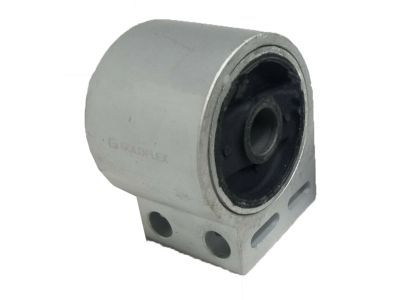

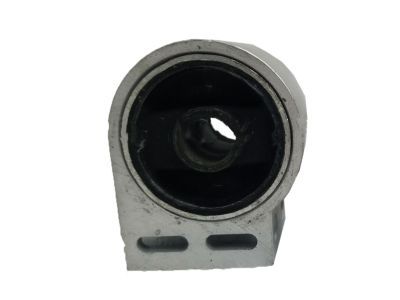

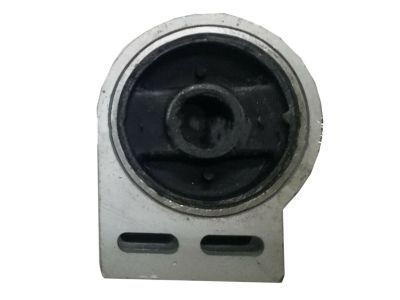

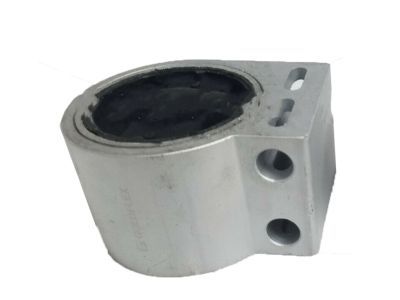

GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
GM 25848403 Lower Control Arm Rear Bushing, Front
  • Part Description
    Bushing, Front Lower Control Arm; Suspension Control Arm Bushing; Control Arm Bushing; Axle Pivot Bushing
  • Position
    Front Lower
  • Replaces
    21990368
  • Manufacturer
    General Motors
Make sure this part fits
$51.14 MSRP: $84.24
You Save: $33.10 (40%)
Ships in 1-2 Business Days
1
ADD TO CART

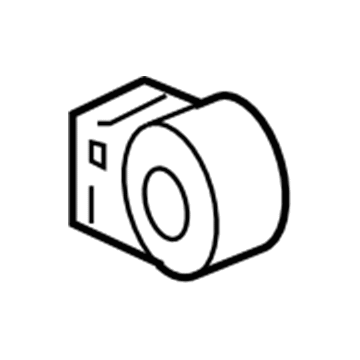

  • 25848403 Lower Control Arm Rear Bushing, Front is Ref No. 11 in the diagram below

    2012 Chevy Captiva Sport Lower Control Arm Rear Bushing, Front Diagram for 25848403
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 25848403

  • Vehicle Fitment

    Year Make Model Trim Engine
    2012-2015 Chevrolet Captiva SportLS, LT, LTZ4 Cyl 2.4 L FLEX, 6 Cyl 3.0 L FLEX
    2005-2009 Chevrolet EquinoxLS, LT, LTZ, Sport6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
    2006-2009 Pontiac TorrentBase, GXP6 Cyl 3.4 L GAS, 6 Cyl 3.6 L GAS
    2002-2008 Saturn VueBase, Green Line, Red Line, XE, XR4 Cyl 2.2 L GAS, 4 Cyl 2.4 L FULL HYBRID EV-GAS (FHEV), 4 Cyl 2.4 L GAS, 6 Cyl 3.0 L GAS, 6 Cyl 3.5 L GAS, 6 Cyl 3.6 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Can you help me check if this 25848403 is the right part for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 25848403 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the rear axle lower control arm bushing on Chevrolet Equinox? Posted by Customer
    A:
    The first step for replacing the rear axle lower Control Arm Bushing is to take out the lower Control Arm. To remove the bushing in the specified direction the rear Control Arm Bushing remover (J 45097) must be used. Install the through bolt with washer and bearing against the push out socket as you position this socket against the bushing from the Control Arm's flanged side. Fit a backing socket on the Control Arm's non-flanged side before putting stabilizer between Control Arm ears. After application of high pressure lube to tool threads secure everything with flat washers then use a nut to complete this process. The bushing will completely remove when you tighten the nut. Before inserting the new bushing apply high pressure lube to the tool threads then push the bushing through from the other side. Apply the rear Control Arm Bushing remover (J 45097) to execute the reverse installation steps using tool layout approach until the bushing sits completely before installing the lower Control Arm.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to Service and Repair a Control Arm Bushing on the Rear Axle of a Chevrolet Equinox? Posted by Customer
    A:
    To remove the rear axle lower Control Arm Bushing, one should remove the lower Control Arm first. Use the rear Control Arm Bushing remover (J 45097) to pull out the indicated bushing. Position the push out socket to the flanged side of the Control Arm attaching it to the bushing, and further install the through bolt and bearing in the washer to the push out socket. Then, position a backing socket to the Control Arm on the other side of flange, and put the stabilizer between the Control Arm ears. Secure with a flat washer and nut, and make sure over high pressure lube is put on the thread of the tool before the nut is tightened to remove the bushing. For initial fitting apply high pressure lube to the threads of the tool and fit the tool from the opposite direction now. Reverse the tool layout using rear Control Arm Bushing remover (J 45097) while you tighten the nut up until the bushing is fully installed then install back the lower Control Arm.
    Posted by ChevyPartsGiant Specialist
    Q:
    What is the next step after ensuring the fastener notice is followed for the 2005 Chevrolet Equinox? Posted by Customer
    A:
    Install the rear bushing onto the lower control arm and tighten the nut to 150 Nm (11 ft. lbs.).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm Bushing
    Q:
    What is the final step after reinstalling the lower control arm for the 2007 Chevrolet Equinox? Posted by Customer
    A:
    Put the front tire and wheel assembly back on and lower the vehicle.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm Bushing
    Q:
    What is the torque specification for tightening the nut on the rear bushing for the 2008 Chevrolet Equinox? Posted by Customer
    A:
    150 N.m (110 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm Bushing
    Q:
    What tool is used to press out the front control arm bushing for the 2006 Chevrolet Equinox? Posted by Customer
    A:
    Control Arm Bushing Remover/Installer (J 44971).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Control Arm Bushing
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Lower Control Arm Rear Bushing, Front 25848403 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 25848403 Lower Control Arm Rear Bushing, Front is available in the market under the name GM Control Arm Bushing. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 25848403 Lower Control Arm Rear Bushing, Front fits certain Chevrolet Equinox, Captiva Sport models, as well as Pontiac Torrent. Additionally, it is compatible with Saturn Vue models.
The original GM component designated by manufacturer part number 25848403 maintains top performance when functioning as the Bushing, Front Lower Control Arm; Suspension Control Arm Bushing; Control Arm Bushing; Axle Pivot Bushing unit at its Front Lower. The component 25848403 is constructed from durable material and its dimensions span 3.8 x 3.2 x 2.1 inches while weighing 2.20 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Bushings; Bushing, Steering Knuckle Lower Control Arm. The part 25848403 has available replacement options 21990368. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
