GM 15869083

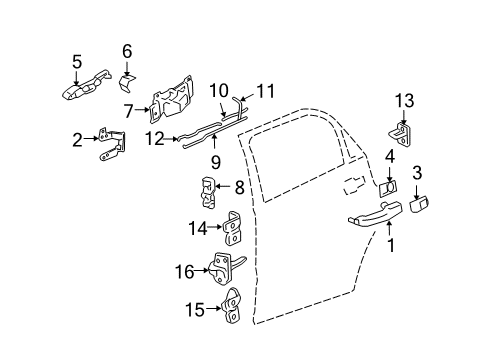

Door Check, Rear Lower Driver Side

First inspect that the ignition has an OFF position and key removal is needed to protect against SIR deployment while avoiding personal injury. The first step requires trim panel and lower speaker removal from the rear door and then proceed with check link bolt detachment. The service on rear door check begins by unbolting check link bolts at the hinge pillar before taking out the check link nuts from the door frame. Pull out the check link which passes through the speaker opening of the door. To perform the installation secure the check link by mounting it on the door frame according to fastener safety guidelines. The procedure requires the check link nuts to be fastened to the link following an application of 10 Nm (89 lb in torque) before check link bolt installation with equivalent torque specifications. In the final step of installation replace the rear door lower speaker followed by the rear door trim panel.

The replacement process for the front Door Check should start with turning off the ignition key and removing it from the vehicle to avoid potential deployment of sir system and harm to people. Take out both the front door trim panel and front door lower speaker before starting replacement. Begin by removing bolts securing the hinge pillar check and the nuts fastening the check to the door frame until you can draw out the check from the speaker opening. You should mount the check onto the door frame after following instructions on the fastener notice. Follow the check installation by securing the nuts with a 10 n.m torque then proceeding to tighten the check bolts to the same torque. Completion of the replacement requires you to install the front door lower speaker followed by installation of the front door trim panel.

Install the nuts and tighten them to 10 N.m (89 lb in).

Attach the check link to the door frame, ensuring to follow the Fastener Notice.

Attach the check link to the door frame, ensuring to follow the fastener notice.
