Make sure this part fits

GM 15839836
Flex Coupling

2003-2007 GM

Customer Questions & Expert Answers (7)

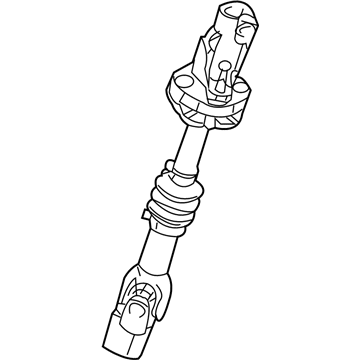

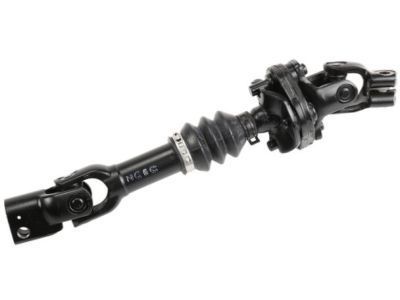

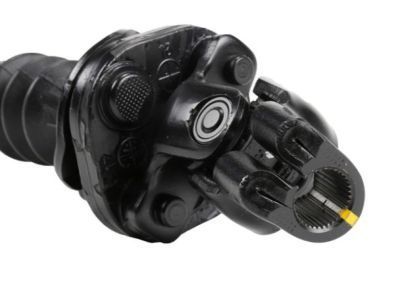

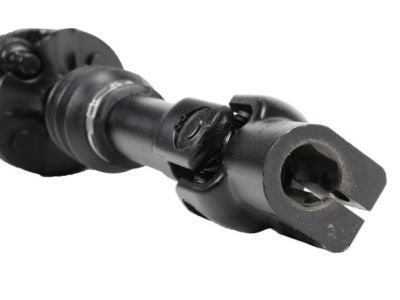

GM 15839836 Flex Coupling
GM 15839836 Flex Coupling
GM 15839836 Flex Coupling
GM 15839836 Flex Coupling
GM 15839836 Flex Coupling
GM 15839836 Flex Coupling
  • Part Description
    Shaft, Steering Gear Shaft; Steering Shaft
  • Position
    Lower
  • Replaces
    25746217
  • Manufacturer
    General Motors
Make sure this part fits
$184.04 MSRP: $313.32
You Save: $129.28 (42%)
Ships in 1-2 Business Days
1
ADD TO CART

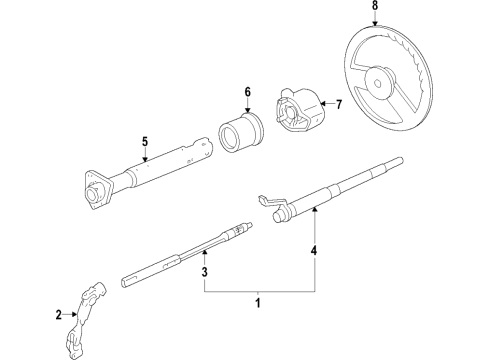

  • 15839836 Flex Coupling is Ref No. 2 in the diagram below

    2003 GMC Savana 3500 Flex Coupling Diagram for 15839836
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 15839836

  • Vehicle Fitment

    Year Make Model Trim Engine
    2003-2007 Chevrolet Express 2500Base, LS, LT6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
    2003-2007 Chevrolet Express 3500Base, LS, LT8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
    2003-2007 GMC Savana 2500Base, LS, LT, SLE6 Cyl 4.3 L GAS, 8 Cyl 4.8 L GAS, 8 Cyl 5.3 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
    2003-2007 GMC Savana 3500Base, LS, LT, SLE8 Cyl 4.8 L GAS, 8 Cyl 6.0 L CNG, 8 Cyl 6.0 L GAS, 8 Cyl 6.6 L DIESEL
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 15839836 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 15839836 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the upper intermediate steering shaft on Chevrolet Express 3500? Posted by Customer
    A:
    To remove the upper intermediate Steering Shaft, make sure the wheels are all the way straight ahead and the Steering Column is locked. Your first step should be installing the Steering Column anti-rotation pin (J 42640) into the Steering Column lower access hole. Then lose the intermediate shaft bearing, also lose the retaining nut and bolt for the upper intermediate shaft to the Steering Column. Unfasten the upper intermediate shaft that is linked to the Steering Column and then remove the connection. To install, connect the upper intermediate shaft to the Steering Column, attach the retaining nut and bolt to the Steering Column, and bringing the nut to a torque of 62n.m (46 ft-lbs). Lastly, install back the intermediate shaft bearing and take off the Steering Column anti-rotation pin (J 42640) from the Steering Column lower access hole.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the upper intermediate steering shaft on Chevrolet Express 2500? Posted by Customer
    A:
    The replacement of an upper intermediate Steering Shaft should be performed only when the vehicle wheels point forward and the Steering Column is in a lock position to avoid sir coil assembly damage. Start by inserting the Steering Column anti-rotation pin (J 42640) through the lower access hole on the Steering Column. Begin by removing the intermediate shaft bearing before you remove the retaining nut and bolt that attach the upper intermediate shaft to the Steering Column. Disconnect the upper intermediate shaft from the Steering Column. Then remove it. Connect the upper intermediate shaft to the Steering Column followed by retaining nut and bolt installation for the upper intermediate shaft ; secure this pairing with a torque of 64 nm (47 ft. Lbs.). Reposition the Steering Column intermediate shaft bearing followed by extracting the j 42640 Steering Column anti-rotation pin from the lower access hole.
    Posted by ChevyPartsGiant Specialist
    Q:
    How do you install the new lower intermediate shaft for the 2003 GMC Savana 2500? Posted by Customer
    A:
    Position the lower intermediate shaft back into the vehicle and connect it to the intermediate shaft bearing.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Steering Shaft
    Q:
    What should be removed after installing the anti-rotation pin for the 2003 GMC Savana 3500? Posted by Customer
    A:
    Remove the intermediate shaft bearing, followed by the retaining nut and bolt that secure the upper intermediate shaft to the steering column.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Steering Shaft
    Q:
    What should be marked before removing the lower intermediate shaft for the 2005 GMC Savana 2500? Posted by Customer
    A:
    Mark the lower intermediate shaft's position relative to the power steering gear for reassembly.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Steering Shaft
    Q:
    What should be done after connecting the lower intermediate shaft to the intermediate shaft bearing for the 2007 GMC Savana 3500? Posted by Customer
    A:
    Install the retaining bolt for the intermediate shaft bearing and tighten it to 30 N.m (22 lb ft).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Steering Shaft
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Flex Coupling 15839836 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 15839836 Flex Coupling is available in the market under the name GM Steering Shaft. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 15839836 Flex Coupling fits certain Chevrolet Express 2500, Express 3500 models, as well as GMC Savana 2500, Savana 3500 models.
The original GM component designated by manufacturer part number 15839836 maintains top performance when functioning as the Shaft, Steering Gear Shaft; Steering Shaft unit at its Lower. The component 15839836 is constructed from durable material and its dimensions span 13.4 x 4.3 x 4.4 inches while weighing 3.20 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. This component receives the designation of Shaft, Steering Shaft U Joint. The part 15839836 has available replacement options 25746217. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
