GM 12686561
Intake Manifold

2008-2017 GM

Customer Questions & Expert Answers (4)

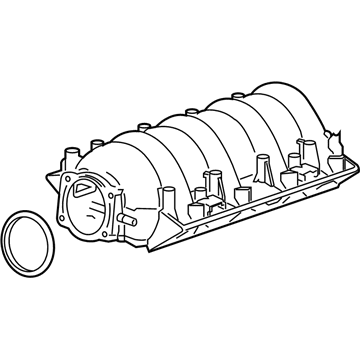

GM 12686561 Intake Manifold
GM 12686561 Intake Manifold
GM 12686561 Intake Manifold
  • Part Description
    Manifold, Engine Fuel Intake Manifold
  • Replaces
    12602477
  • Manufacturer
    General Motors
Make sure this part fits
$545.19 MSRP: $861.68
You Save: $316.49 (37%)
Currently Unavailable

Due to manufacturer supply shortage, this item isn't currently available for ordering.

  • 2012 Chevy Caprice Intake Manifold Diagram for 12686561
    The diagram listed above is for your reference. View diagram for your vehicle

    Related Parts for 12686561

  • Vehicle Fitment

    Year Make Model Trim Engine
    2010-2015 Chevrolet CamaroSS, Z/28, ZL18 Cyl 6.2 L GAS, 8 Cyl 7.0 L GAS
    2011-2017 Chevrolet CapricePPV8 Cyl 6.0 L FLEX
    2008-2013 Chevrolet CorvetteBase, Grand Sport, ZR18 Cyl 6.2 L GAS
    2014-2017 Chevrolet SSBase8 Cyl 6.2 L GAS
    2008-2009 Pontiac G8GT8 Cyl 6.0 L GAS
    Warning: California's Proposition 65

  • Customer Questions & Expert Answers

    Q:
    Is this 12686561 designed for my car? Posted by ChevyPartsGiant Specialist
    A:
    Please Select Your Vehicle model to see if part number 12686561 is suitable before ordering.
    Posted by ChevyPartsGiant Specialist
    Q:
    How to replace the intake manifold on Chevrolet Corvette? Posted by Customer
    A:
    The initial step to replace the Intake Manifold requires removing engine sight covers two and three. Disconnect the electrical connector which operates the fuel injectors while also disconnecting the electrical connectors attached to the Throttle Body. Start by disconnecting the fuel feed for fuel injectors followed by removing the vacuum hose from the Brake Booster and finally disconnecting the electrical connector from the manifold absolute pressure sensor. Remove the MAP Sensor bolt followed by the MAP Sensor while checking the seal for damage without uninstalling it. The sequence requires dissolving of the evap clip (740) with the bolt (742) bracket (741) valve (730) and tubes (729, 735) removal. Disassemble the engine by first removing the Intake Manifold bolts (512) and the Fuel Rail stop bracket (712). Afterward extract the Intake Manifold (500) throwing away the Intake Manifold gaskets (514). Installation requires new gaskets between the Intake Manifold and cylinder head (514) while following the process to mount the Intake Manifold (500). Apply 5 mm (0.20 in) of threadlocker to the Intake Manifold bolts (512) before installing the Fuel Rail stop bracket (712) then tightening the Intake Manifold bolts (512) in sequence to 5 nm (44 lb in) for the first pass followed by 10 nm (89 lb in) for the final pass. Use a 5 nm torque wrench to tighten the Intake Manifold bolts (first pass) then repeat the sequence with a 10 nm torque wrench (final pass). Run a thin layer of clean engine oil along the MAP Sensor grommet before installing both the sensor and bolt. Implement the evap valve (730) and bracket (741) and bolt (742). Torque the bolt to 50 nm (37 lb ft) before attaching the evap tubes (729, 735) along with the Fuel Rail. The electrical connector for the MAP Sensor needs to be reinstalled while the Brake Booster vacuum hose and Throttle Body electrical connectors and Fuel Injector electrical connectors must be reconnected. The cooling system requires refilling before you put on the engine sight covers (2, 3).
    Posted by ChevyPartsGiant Specialist
    Q:
    What should be done if a new intake manifold is being installed for the 2010 Chevrolet Camaro? Posted by Customer
    A:
    Assemble it and install a NEW intake manifold gasket.
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Intake Manifold
    Q:
    What is the final step in the process for the 2008 Chevrolet Corvette? Posted by Customer
    A:
    Refill the cooling system and install the engine sight covers (2, 3).
    Posted by ChevyPartsGiant Specialist
    See expert answers on similar Intake Manifold
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

OEM GM Intake Manifold 12686561 Designed for Proper Fit and Performance

Original OEM GM parts deliver superior quality and meet all performance standards needed for optimal automotive operation. The authentic part identified by 12686561 Intake Manifold is available in the market under the name GM Intake Manifold. This genuine product has a full warranty coverage from the manufacturer available at all authorized GM dealers throughout the United States. This part 12686561 Intake Manifold fits certain Chevrolet Camaro, SS, Caprice models, as well as Pontiac G8 models.
The original GM component designated by manufacturer part number 12686561 maintains top performance when functioning as the Manifold, Engine Fuel Intake Manifold unit. The component 12686561 is constructed from durable material and its dimensions span 27.0 x 14.6 x 11.4 inches while weighing 9.50 Pounds. The Direct Replacement component is ready in New condition to ensure full compatibility with your vehicle system. The part 12686561 has available replacement options 12602477. GM manufacturer provides a warranty that ensures reliable operation of this product. The Shipping Policy and Return Policy pages outline complete details regarding shipping procedures and return processes.
